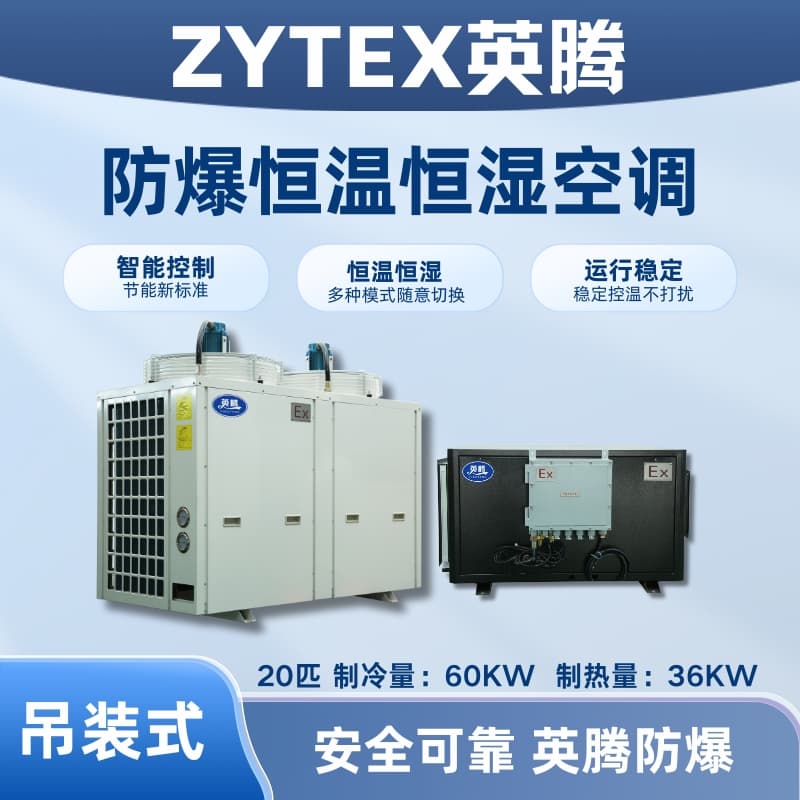

YingTeng Explosion-proof Constant Temperature and Humidity Air Conditioner for Lifting Equipment
Spec: 20 horsepower
Brand: YingTeng
Cooling Capacity: 60 kW
Heating Capacity: 36 kW
Airflow: 12,000 m³/h
Outdoor static pressure Pa: 50-200
Aircraft noise level dB: 65
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power (KW): 47.6
Compressor Type: Panasonic Twin Rotor
Compressor Power: 9.2 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidifying Capacity/Power: Kg/Kw: 12/9
Copper tube coupling tube diameter: Liquid tube 15.88mm, Steam tube 19.05mm
Dimensions (H*W*D) for cabinet unit: 1900*1400*700 mm
Dimensions (H*W*D) Ceiling Mount: 1160*850*1500 MM
Unit quantity of outdoor unit: 2
Outdoor Unit Dimensions (H*W*D) MM: 1100*1500*850
Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
YingTeng explosion-proof temperature and humidity control air conditioner has the explosion-proof marking of Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb.
The Yiting explosion-proof, constant temperature and humidity air conditioning series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres - Part 9: Equipment protected by encased 'm' type"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosion hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "Yingteng" explosion-proof, temperature, and humidity control air conditioning series has been processed with special explosion-proof technology and is widely applicable in flammable and explosive areas of Zones 1 and 2. It is suitable for research, oil, chemical, pharmaceutical, and power plant environments where there may be IIa, Iib groups of T1 to T4 combustible gases, steam-air mixtures, or explosion hazards. The explosion-proof temperature and humidity control air conditioning is ideal for areas requiring temperature control. The Yingteng explosion-proof temperature and humidity control air conditioners have been inspected and certified by the National Supervision and Inspection Center for Explosion-Proof Electrical Product Quality and issued with explosion-proof certificates and CCC certification. They feature a stylish design, reasonable structure, and easy installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety, making them highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Yinteng Explosion-proof Constant Temperature and Humidity Air Conditioner Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented cold-bridge prevention design, with a simple yet exquisite frame structure, a dignified and generous appearance, seamlessly integrated with the indoor environment; the controller's status display, parameter modification, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: The unit employs self-control components from European and American brands like DANFOSS and ALCO Sporlan for refrigeration systems, ensuring stable quality. The controllers use electrical components from manufacturers such as Schneider and OMRON, guaranteeing reliable performance. The unit is equipped with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.
Quiet Operation, Ultra-Low Noise: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; the compressor is externally mounted or equipped with a dual-stage vibration reduction device, isolating it from the air handling system, ensuring noise does not interfere or overlap; additionally, the interior wall panels are lined with insulating and sound-absorbing foam; thus, achieving extremely low noise levels.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic finned aluminum baffles, the heat transfer coefficient is 30% higher than that of conventional evaporators; Equipped with top-brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, achieving temperature accuracy of ±1°C and humidity accuracy of ±3%; The PLC controller is equipped with multiple automatic control functions such as fault diagnosis, energy control, and operating modes, ensuring the efficient operation of the unit.
