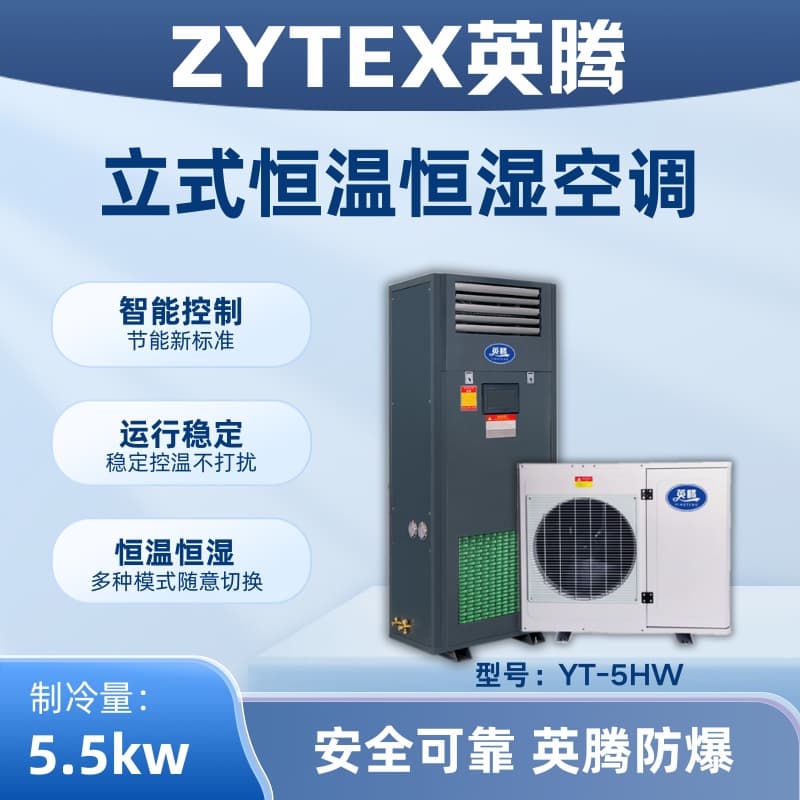

Intenstant Floor-standing Constant Temperature and Humidity Air Conditioner
Spec: YT-5HW
Brand: YingTeng
Cooling Capacity: 5.5 kW
Heating Output KW: 3
Airflow m³/h: 1000
Outdoor static pressure Pa: 50-200
Noise Level of Unit: 50 dB
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Total Input Power (KW): 5
Compressor Type: Panasonic Twin-Rotor
Compressor Power: 1.5 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidifying Capacity/Power: 2.5 Kg/Kw
Copper tube connecting pipe sizes: Liquid tube 10, Steam tube 16
Dimensions (H*W*D) for cabinet unit: 1800*450*600 mm
Outdoor unit quantity: 1
Outdoor Unit Dimensions (H*W*D): 860*960*385
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Yiting恒温恒湿Air Conditioning Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet sophisticated frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: Equipped with self-control components for refrigeration systems from European and American brands like DANFOSS and ALCOSPORLAN, with stable quality controllers from manufacturers like Schneider and OMRON, ensuring reliable performance; the unit is configured with multiple protection devices such as high and low-pressure, exhaust temperature, fan, and compressor overload relays, guaranteeing safe operation.
Quiet operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; the compressor is also externally mounted or equipped with dual-stage vibration reduction devices to isolate it from the air handling system, ensuring noise does not interfere or overlap; in addition, the inner wall panels are lined with insulating sound-absorbing foam; thus, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal threaded copper tubes and hydrophilic finned aluminum fins with adjustable louvers, the heat transfer coefficient is 30% higher than that of common evaporators; equipped with top-brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, achieving temperature control within ±1°C and relative humidity control within ±3%; the PLC controller is equipped with multiple automatic control functions including fault diagnosis, energy control, and operating mode, ensuring the unit operates efficiently.
