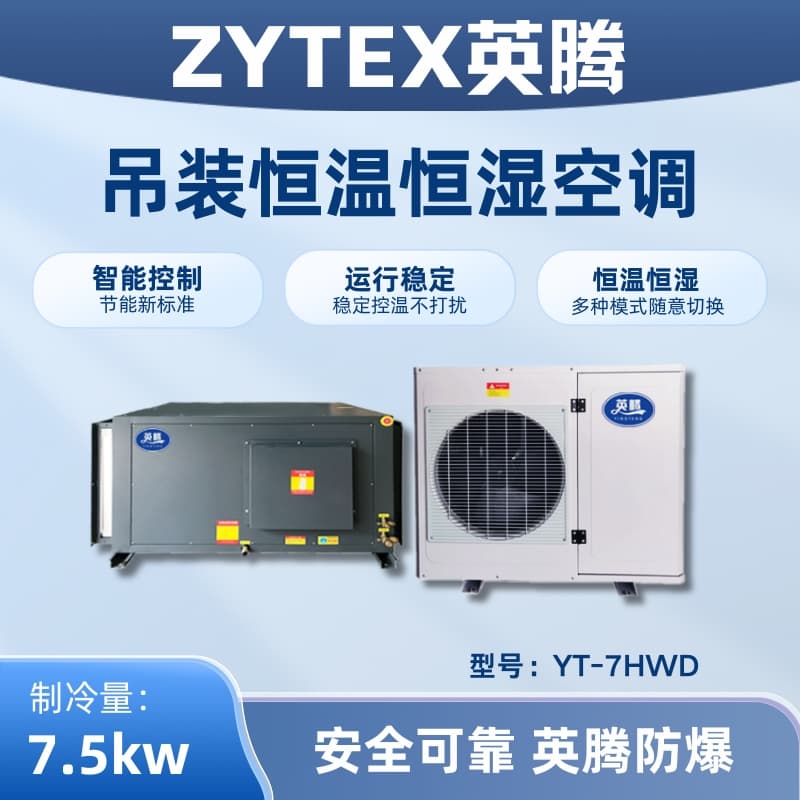

Yiting Temperature and Humidity Control Air Conditioner for Lifting Equipment

Specification: YT-7HWD

Brand: YingTeng

Cooling Capacity: 7.5 kW

Heating Output: 4.5 kW

Airflow: 1200 m³/h

Static Wind Pressure Outside Machine: 50-200 Pa

Aircraft Noise Level dB: 55

Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%

Input Power: AC 380V 50Hz

Input Total Power (KW): 7.5

Compressor Type: Panasonic Twin Rotor

Compressor Power: 2.5 kW

Heater Type: Electric Heating Tube

Humidifier Type: Electrode Humidifier

Humidifying Capacity/Power: Kg/Kw: 3/2

Copper tube joints diameter: Liquid tube 10, steam tube 16

Dimensions (H*W*D) Ceiling Mount: 380*1060*570

Outdoor unit quantity: 1

Outdoor Unit Dimensions (H*W*D): 860*960*385

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; please refer to the actual physical product.

YingTeng Temperature and Humidity Control Air Conditioning Product Features

Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller's status display, parameter modifications, and fault inquiries all utilize Chinese prompt menus for easy and convenient operation.

Reliable performance and stable quality: The unit uses self-control components from European and American brands like DANFOSS, ALCOSPORLAN, and stable quality controllers from manufacturers like Schneider and OMRON, ensuring reliable performance. The unit is equipped with multiple protection devices such as high and low pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.

Quiet operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, vibration is minimal, and noise is extremely low; the compressor is also externally mounted or equipped with a double-stage vibration reduction device, isolating it from the air handling system, ensuring noise does not interfere or overlap; in addition, the interior panels are lined with insulating and sound-absorbing foam; therefore, noise levels are extremely low.

Energy-saving and efficient, intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic finned aluminum foil evaporators, the heat transfer coefficient is 30% higher than that of common evaporators; equipped with top brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, achieving temperature control within ±1°C and humidity control within ±3%; the PLC controller is equipped with multiple automatic control functions including fault diagnosis, energy control, and operation modes, ensuring the unit operates efficiently.
