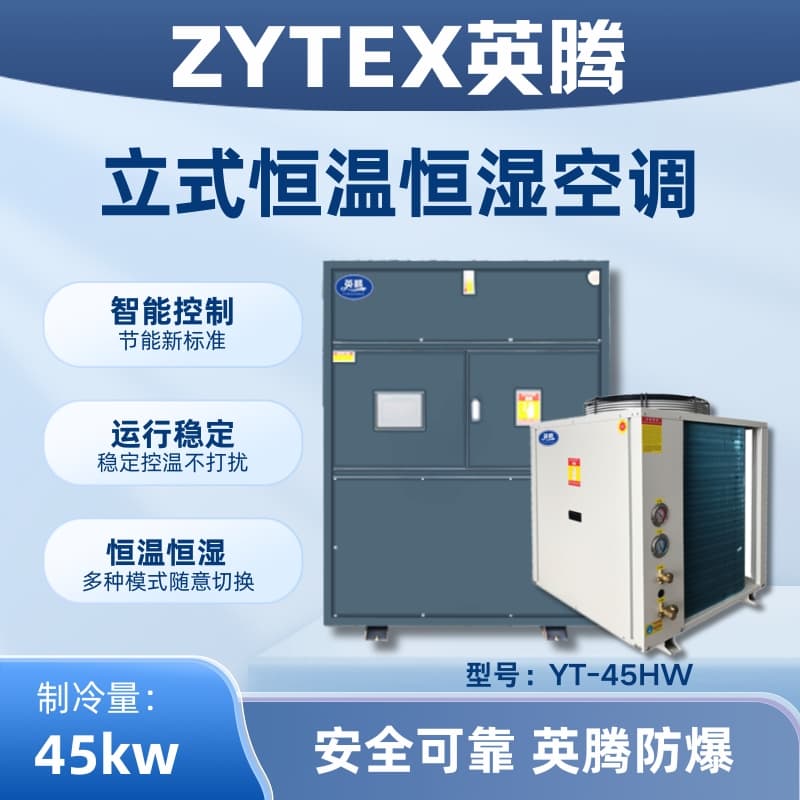

YingTeng Standing Cabinet Constant Temperature and Humidity Air Conditioner
Specification: YT-45HW
Brand: YingTeng
Cooling Capacity: 45 kW
Heating Capacity: 28 kW
Airflow m3/h: 9000
External static pressure Pa: 50-200
Noise Level of Unit: 65 dB
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power KW: 39.5
Compressor Type: Panasonic Twin Rotor
Compressor Power: 4.5*3 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Moisture Output/Power Kg/Kw: 12/9
Copper tube coupling pipe size: liquid tube 12, gas tube 19
Dimensions (H*W*D) for cabinet unit: 1900*1400*700 MM
Outdoor Unit Quantity: 3
Outdoor Unit Dimensions (H*W*D) MM: 960*850*850
Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
YingTeng Constant Temperature and Humidity Air Conditioning Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: The unit employs self-control components from European and American brands like DANFOSS and ALCOSPORLAN, ensuring stable quality. The controllers use electrical components from manufacturers such as Schneider and OMRON, guaranteeing reliable performance. The unit is equipped with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.
Quiet Operation, Ultra-Low Noise: Equipped with the latest fully enclosed low-noise compressor, featuring minimal vibration and low noise; the compressor is externally mounted or equipped with a dual-stage vibration reduction device to isolate it from the air handling system, ensuring noise does not interfere or overlap; in addition, the inner side of the panels is lined with insulating sound-absorbing foam; thus, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal threaded copper tubes and hydrophilic finned aluminum evaporator with openable louver blades, the heat transfer coefficient is 30% higher than that of conventional evaporators; Equipped with top-brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, achieving temperature accuracy of ±1℃ and humidity accuracy of ±3%; The PLC controller is equipped with multiple automatic control functions such as fault diagnosis, energy control, and operating mode, ensuring the unit operates efficiently.
