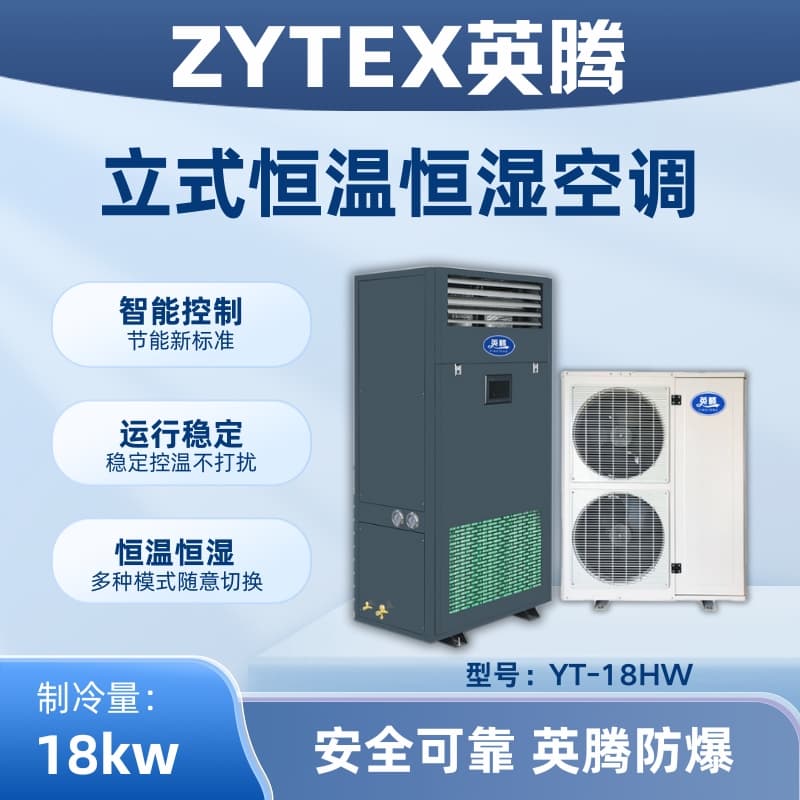

YingTeng Floor-standing Constant Temperature and Humidity Air Conditioner
Specification: YT-18HW
Brand: YingTeng
Cooling Capacity: 18 kW
Heating Power KW: 12
Airflow m3/h: 2500
External static pressure Pa: 50-200
Aircraft Noise Level dB: 55
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power KW: 18
Compressor Type: Panasonic Twin-Rotor
Compressor Power: 6 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Moisture Output/Power: 9 Kg/Kw
Copper tube union pipe size: Liquid tube 12, Steam tube 19
Dimensions (H*W*D) of cabinet unit: 1900*950*550 mm
Outdoor unit quantity: 1
Outdoor Unit Dimensions (H*W*D) MM: 1230*980*460
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual machine is to be taken as the standard.
YingTeng Constant Temperature and Humidity Air Conditioner Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-condensation bridge design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: Equipped with self-control components for refrigeration systems from European and American brands like DANFOSS and ALCO Sporlan, with stable quality controllers from brands like Schneider and OMRON, ensuring reliable performance. The unit is configured with multiple protection devices such as high and low pressure, exhaust temperature, fan, and compressor overload relays, guaranteeing safe operation.
Silent operation, ultra-low noise: Utilizes the latest fully enclosed low-noise compressor, with minimal vibration and low noise; additionally, external mounting or dual-stage vibration reduction devices for the compressor isolate it from the air handling system, ensuring noise does not interfere or overlap; plus, the interior of the panels is lined with insulating sound-absorbing foam; hence, extremely low noise levels.
Energy-efficient and high-performance, with intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic finned aluminum fins, the heat transfer coefficient is 30% higher than that of ordinary evaporators; Equipped with first-class brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, achieving ±1°C temperature and ±3% relative humidity; The PLC controller is equipped with multiple automatic control functions such as fault diagnosis, energy control, and operating mode to ensure efficient operation of the unit.
