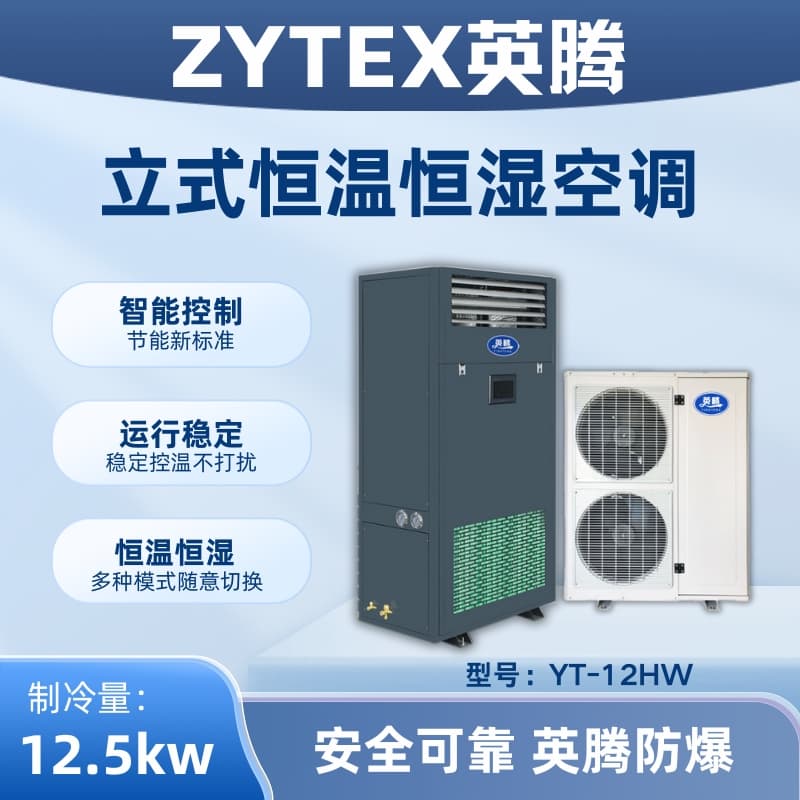

Yiting Tower-Type Constant Temperature and Humidity Air Conditioner
Spec: YT-12HW
Brand: YingTeng
Cooling Capacity: 12.5 kW
Heating Capacity: 7.5 kW
Airflow: 2200 m³/h
Outdoor static pressure Pa: 50-200
Engine noise dB: 55
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power KW: 12
Compressor Type: Panasonic Twin Rotor
Compressor Power: 3.8 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Moisture Output/Power Kg/Kw: 5/3.5
Copper tube union pipe diameter: Liquid tube 12, Gas tube 19
Dimensions (H*W*D) of cabinet unit: 1900*950*550 mm
Outdoor unit quantity: 1
Outdoor Unit Dimensions (H*W*D) MM: 1230*980*460
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall be the standard.
YingTeng Constant Temperature and Humidity Air Conditioning Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet sophisticated frame structure, a dignified and generous appearance, seamlessly blending with the indoor environment; the controller status display, parameter modification, and fault inquiry all use Chinese prompt menus, making operation simple and convenient.
Reliable performance and stable quality: Equipped with self-control components for refrigeration systems from European and American brands like DANFOSS and ALCOSPORLAN, stable quality controllers from brands like Schneider and OMRON, and reliable performance. The unit is also configured with multiple protection devices such as high and low pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation of the unit.
Quiet operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, with minimal vibration and low noise; also features an external compressor or dual-stage vibration reduction device to isolate the compressor from the air handling system, ensuring noise does not interfere or overlap; plus, the inner side of the panels is lined with insulating sound-absorbing foam; thus, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic finned aluminum foil evaporators, the heat transfer coefficient is 30% higher than that of ordinary evaporators; equipped with top-brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control precision, achieving temperature accuracy of ±1°C and humidity accuracy of ±3%; the PLC controller is equipped with multiple automatic control functions such as fault diagnosis, energy control, and operating mode, ensuring the efficient operation of the unit.
