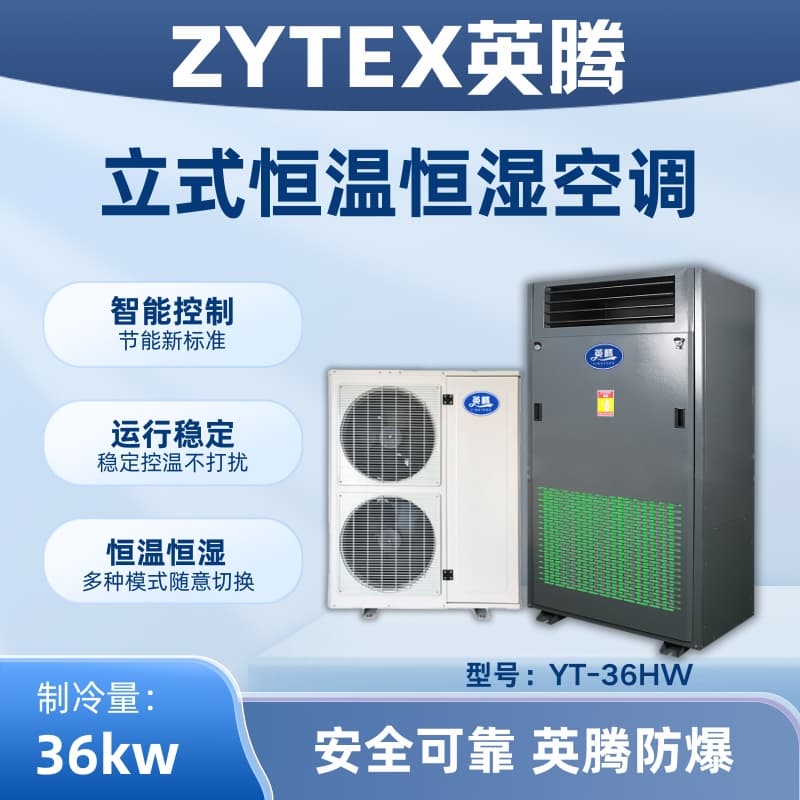

Yiting Vertical恒温恒湿空调
Specification: YT-36HW
Brand: YingTeng
Cooling Capacity: 36 kW
Heating Capacity: 21 kW
Airflow: 6000 m³/h
Static Air Pressure Outside the Machine: 50-200 Pa
Aircraft Noise Level dB: 60
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC380V 50Hz
Total Input Power: 35 kW
Compressor Type: Panasonic Twin-Rotor
Compressor Power: 6 x 2 KW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Moisture Output/Power Kg/Kw: 12/8.5
Copper pipe union diameter: Liquid pipe 12, Steam pipe 19
Dimensions (H*W*D) for cabinet unit: 1900*1200*600 mm
Quantity of outdoor units: 2
Outdoor Unit Dimensions (H*W*D) MM: 1230*980*460
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, the actual unit is the standard.
Yinteng Constant Temperature and Humidity Air Conditioning Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet sophisticated frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: Equipped with self-control components from European and American brands like DANFOSS and ALCOSPORLAN for refrigeration systems, and stable controllers from manufacturers such as Schneider and OMRON, ensuring reliable performance; the unit is also configured with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, guaranteeing safe operation.
Quiet operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, vibration is minimal, and noise is extremely low; the compressor is isolated from the air handling system with an external compressor or dual-stage vibration damping device, ensuring noise interference does not overlap; additionally, the interior wall panels are lined with insulating sound-absorbing foam; therefore, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic openable louvered aluminum fin evaporators, the heat transfer coefficient is 30% higher than that of ordinary evaporators; equipped with first-class brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, temperature control within ±1°C, and relative humidity control within ±3%; the PLC controller is equipped with automatic control functions such as fault diagnosis, energy control, and operating mode, ensuring efficient operation of the unit.
