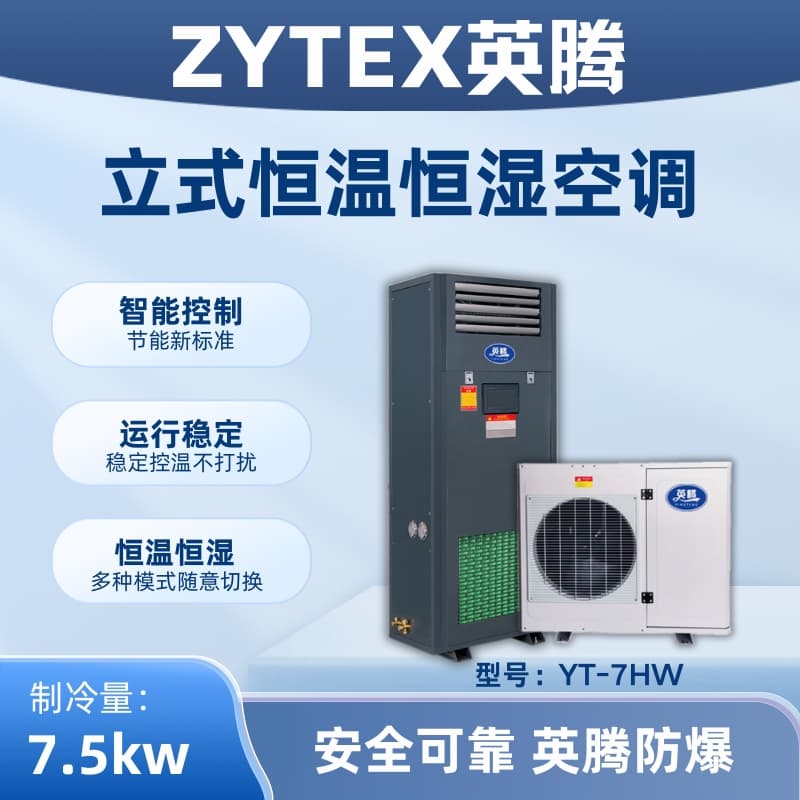

Yinteng Tower-type Constant Temperature and Humidity Air Conditioner
Specification: YT-7HW
Brand: YingTeng
Cooling Capacity: 7.5 kW
Heating Output: 4.5 kW
Airflow: 1200 m³/h
Outdoor static pressure Pa: 50-200
Aircraft Noise Level dB: 55
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power KW: 7.5
Compressor Type: Panasonic Twin Rotor
Compressor Power: 2.5 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Moisture Output/Power Kg/Kw: 3/2
Copper tube union pipe diameter: Liquid tube 10, Steam tube 16
Dimensions (H*W*D) for cabinet unit: 1800*450*600 MM
Outdoor unit quantity: 1
Outdoor Unit Dimensions (H*W*D): 860*960*385
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical parameters are for reference only, and the physical product shall prevail.
Yinteng Constant Temperature and Humidity Air Conditioning Product Features
Attractive appearance and easy maintenance: The unit employs a patented cold-bridge prevention design, featuring a simple yet sophisticated frame structure. Its appearance is dignified and blends seamlessly with the indoor environment; the controller displays its status in Chinese with easy-to-follow menu prompts for parameter modifications and fault inquiries, ensuring simple and convenient operation.
Reliable performance, stable quality: Equipped with self-control components for refrigeration systems from European and American brands like DANFOSS and ALCOSPORLAN, the unit boasts stable quality. The controllers use electrical components from manufacturers such as Schneider and OMRON, ensuring reliable performance. The unit is also configured with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, guaranteeing safe operation.
Quiet operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, with minimal vibration and low noise; also features an external compressor or dual-stage vibration reduction device to isolate the compressor from the air handling system, ensuring noise does not interfere or overlap; plus, the inner wall panels are lined with insulating sound-absorbing foam; thus, the noise level is extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal thread copper tubes and hydrophilic open-window aluminum fin evaporators, the heat transfer coefficient is 30% higher than that of conventional evaporators; Equipped with first-tier brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control accuracy, achieving a temperature precision of ±1°C and relative humidity accuracy of ±3%; The PLC controller is equipped with multiple automatic control functions including fault diagnosis, energy control, and operating modes, ensuring the unit operates efficiently.
