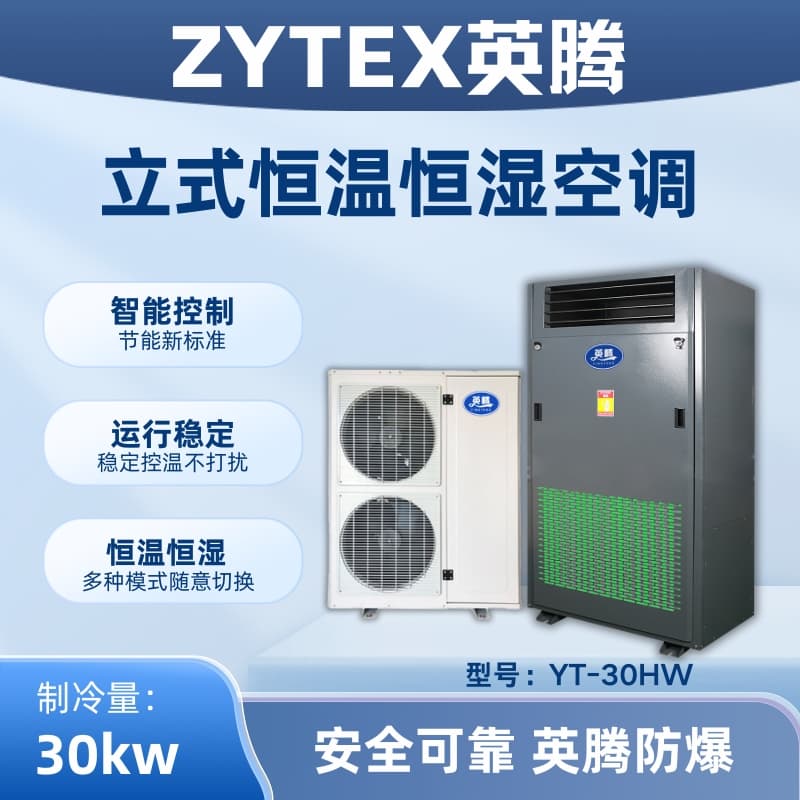

YingTeng Floor-standing Constant Temperature and Humidity Air Conditioner
Spec: YT-30HW
Brand: Yingten
Cooling Capacity: 30 kW
Heating Output: 18 kW
Airflow: 5000 m³/h
External static pressure Pa: 50-200
Aircraft noise level dB: 55
Humidity and temperature control range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Total Input Power: 28.5 kW
Compressor Type: Panasonic Twin Rotor
Compressor Power (KW): 4.7 x 2
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidifying Capacity/Power: 10/Kg, 7/Kw
Copper tube coupling pipe size: Liquid tube 12, Steam tube 19
Dimensions (H*W*D) for cabinet unit: 1900*1200*600 mm
Outdoor unit quantity: 2
Outdoor Unit Dimensions (H*W*D) MM: 1230*980*460
Flameproof Mark: ExdbibmbllBT4Gb/ExdbibmbllCT4Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the actual unit should be used as the standard.
Yinteng Constant Temperature and Humidity Air Conditioning Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller's status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: The unit adopts self-control components for refrigeration systems from European and American brands such as DANFOSS and ALCO Sporlan, ensuring stable quality. The controllers use electrical components from manufacturers like Schneider and OMRON, guaranteeing reliable performance. The unit is equipped with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.
Silent operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, with minimal vibration and low noise; also features external compressor or dual-stage vibration reduction device to isolate the compressor from the air handling system, ensuring noise is not interfering or overlapping; plus, the inner wall panels are lined with insulating sound-absorbing foam; thus, noise levels are extremely low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal threaded copper tubes and hydrophilic finned aluminum baffles, the heat transfer coefficient is 30% higher than that of standard evaporators; equipped with top-brand PLC control, featuring built-in PID analog quantity adjustment for strong adaptability and high control precision, achieving ±1°C temperature and ±3% relative humidity; the PLC controller is equipped with automatic control functions such as fault diagnosis, energy control, and operating mode, ensuring the unit's efficient operation.
