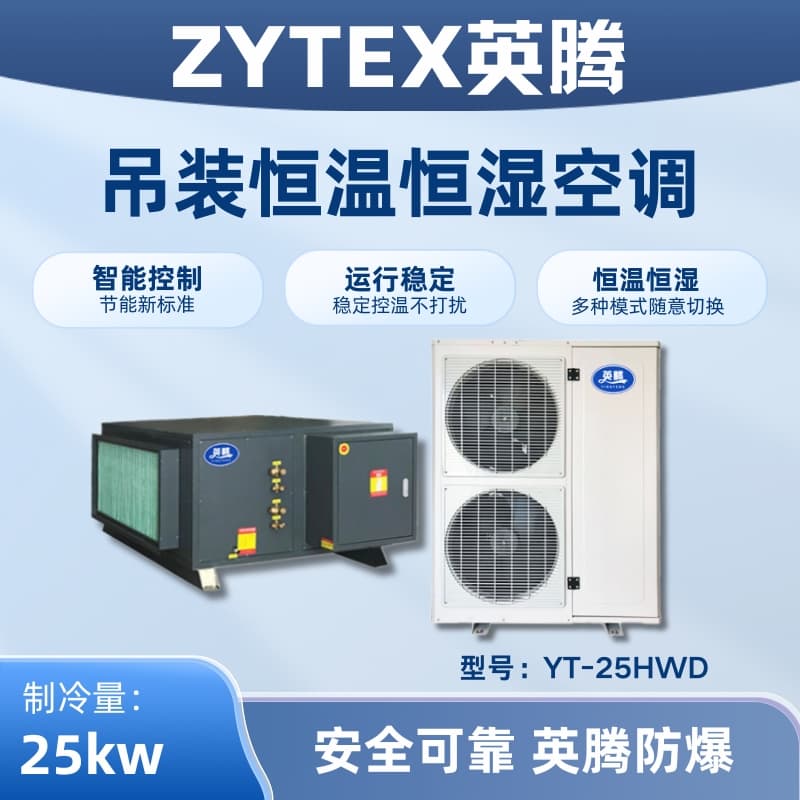

YingTeng Temperature and Humidity Control Air Conditioner for Lifting Equipment

Specification: YT-25HWD

Brand: YingTeng

Cooling Capacity: 25 kW

Output Heat: 15 kW

Airflow: 4500 m³/h

Static Wind Pressure Outside Machine: 50-200 Pa

Aircraft Noise Level dB: 55

Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%

Input Power: AC 380V 50Hz

Input Total Power KW: 23.5

Compressor Type: Panasonic Twin-Rotor

Compressor Power: 3.8*2 KW

Heater Type: Electric Heating Tube

Humidifier Type: Electrode Humidifier

Humidifying Capacity/Power: Kg/Kw: 9/6

Copper pipe union diameter: Liquid tube 12, gas tube 19

Dimensions (H*W*D) Ceiling Mount: 650*1200*1250 MM

Outdoor unit quantity: 2

Outdoor Unit Dimensions (H*W*D): 1230*980*460 mm

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the physical unit shall prevail.

Yinteng Constant Temperature and Humidity Air Conditioning Product Features

Aesthetically pleasing and easy to maintain: The unit features a patented cold-bridge prevention design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.

Reliable performance, stable quality: The unit utilizes self-control components from European and American brands like DANFOSS and ALCOSPORLAN for the refrigeration system, ensuring stable quality. The control units are equipped with electrical components from reputable manufacturers such as Schneider and OMRON, guaranteeing reliable performance. The unit is also fitted with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.

Quiet operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, with minimal vibration and low noise; also utilizes an external compressor or dual-stage vibration reduction device to isolate the compressor from the air handling system, ensuring noise does not interfere or overlap; plus, the interior panels are lined with insulating sound-absorbing foam; thus, the noise level is extremely low.

Energy-efficient and high-performance, with intelligent control: Utilizing high-purity internally threaded copper tubes and hydrophilic finned aluminum evaporator coils, the heat transfer coefficient is 30% higher than that of standard evaporators; Equipped with a top-brand PLC controller, featuring built-in PID analog adjustment for strong adaptability and high control accuracy, achieving temperature precision within ±1°C and humidity accuracy within ±3%; The PLC controller is equipped with multiple automatic control functions, including fault diagnosis, energy control, and operating modes, ensuring efficient operation of the unit.
