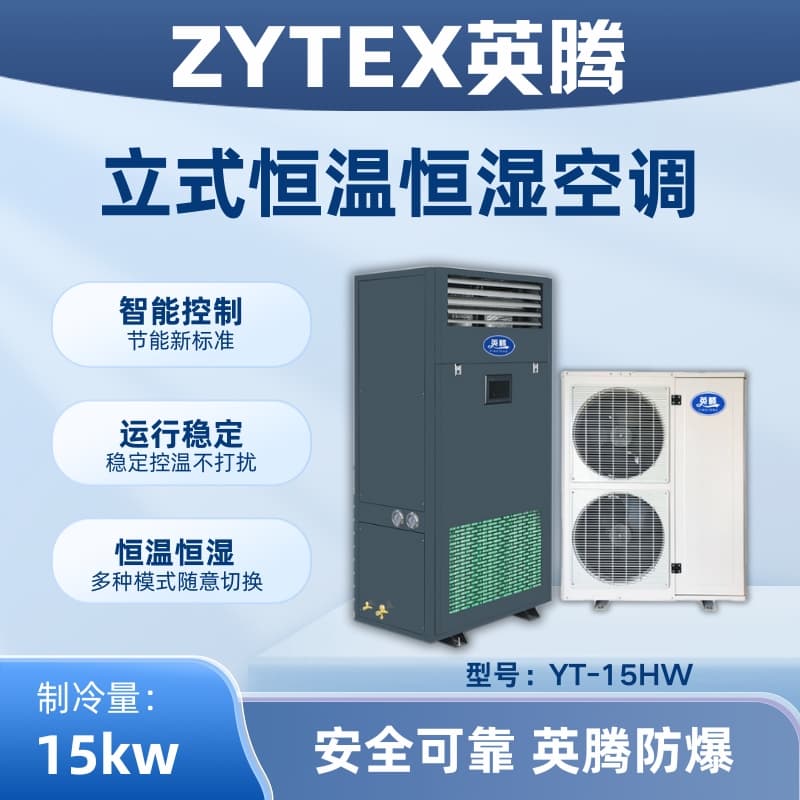

Intenli Tower-style Constant Temperature and Humidity Air Conditioner
Specification: YT-15HW
Brand: YingTeng
Cooling Capacity: 15 kW
Heating Capacity: 9 kW
Airflow: 2500 m³/h
Outdoor static pressure Pa: 50-200
Aircraft noise level dB: 55
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Total Input Power: 15 kW
Compressor Type: Panasonic Twin Rotor
Compressor Power: 4.7 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidifying Capacity/Power: Kg/Kw: 6/4.5
Copper pipe union tube diameter: Liquid tube 12, Steam tube 19
Dimensions (H*W*D): Ceiling Mount MM: 620*760*1220
Outdoor unit quantity: 1
Outdoor Unit Dimensions (H*W*D) MM: 1230*980*460
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual product is the standard.
Yinteng Temperature and Humidity Control Air Conditioner Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation simple and convenient.
Reliable performance, stable quality: Equipped with self-control components for refrigeration systems from European and American brands like DANFOSS and ALCOSPORLAN, with stable quality controllers from manufacturers such as Schneider and OMRON, ensuring reliable performance. The unit is configured with multiple protection devices such as high and low-pressure, exhaust temperature, fan, and compressor overload relays, guaranteeing safe operation.
Silent operation, ultra-low noise: Utilizes the latest fully enclosed low-noise compressor, with minimal vibration and noise; also employs external compressor or dual-stage vibration reduction devices to isolate the compressor from the air handling system, ensuring noise is not overlapping or interfering; plus, the inner wall panels are lined with insulating and sound-absorbing foam; thus, achieving extremely low noise levels.
Energy-efficient and high-performance, with intelligent control: Utilizing high-purity internal threaded copper tubes and hydrophilic finned aluminum heat exchangers, the heat transfer coefficient is 30% higher than that of conventional evaporators; Equipped with first-class brand PLC control, featuring built-in PID analog quantity adjustment, strong adaptability, and high control accuracy, achieving ±1°C temperature control and ±3% relative humidity; The PLC controller is equipped with multiple automatic control functions, including fault diagnosis, energy control, and operation mode, ensuring the unit operates efficiently.
