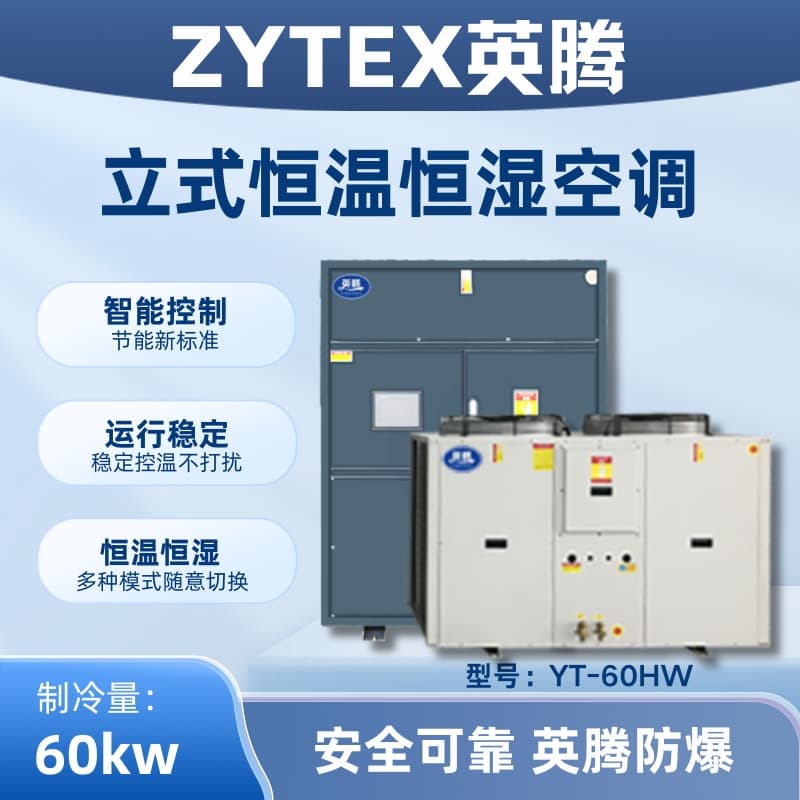

YingTeng Floor-standing Constant Temperature and Humidity Air Conditioner
Spec: YT-60HW
Brand: YingTeng
Cooling Capacity: 60 kW
Heating Output: 36 kW
Airflow: 12,000 m³/h
Static Wind Pressure Outside Machine: 50-200 Pa
Aircraft noise level dB: 65
Humidity and Temperature Control Range: 16-30℃ ±2℃; 40-70% ±5%
Input Power: AC 380V 50Hz
Input Total Power KW: 47.6
Compressor Type: Panasonic Twin Rotor
Compressor Power: 9.2 kW
Heater Type: Electric Heating Tube
Humidifier Type: Electrode Humidifier
Humidification Rate/Power Kg/Kw: 12/9
Copper tube union tube diameter: Liquid tube 15.88mm, Steam tube 19.05mm
Dimensions (H*W*D) for cabinet unit: 1900*1400*700 mm
Outdoor unit quantity: 2
Outdoor Unit Dimensions (H*W*D) MM: 1100*1500*850
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual product should be used as the standard.
Yiting恒温恒湿Air Conditioning Product Features
Aesthetically pleasing and easy to maintain: The unit features a patented anti-cold bridge design, with a simple yet elegant frame structure, a dignified and generous appearance, seamlessly integrating with the indoor environment; the controller's status display, parameter modifications, and fault inquiries all use Chinese prompt menus, making operation straightforward and convenient.
Reliable performance, stable quality: The unit utilizes self-control components for refrigeration systems from renowned European and American brands like DANFOSS and ALCO Sporlan, ensuring stable quality. The controllers are equipped with components from reputable manufacturers such as Schneider and OMRON, guaranteeing reliable performance. The unit is also equipped with multiple protection devices including high and low-pressure, exhaust temperature, fan, and compressor overload relays, ensuring safe operation.
Silent operation, ultra-low noise: Equipped with the latest fully enclosed low-noise compressor, vibration is minimal, and noise is extremely low; also features an external compressor or dual-stage vibration reduction device to isolate the compressor from the air handling system, ensuring noise does not interfere or overlap; plus, the inner wall panels are lined with insulating and sound-absorbing foam; thus, noise levels are exceptionally low.
Energy-saving and efficient, intelligent control: Utilizing high-purity internal threaded copper tubes and hydrophilic finned aluminum baffles, the heat transfer coefficient is 30% higher than that of conventional evaporators; equipped with top-brand PLC control, featuring built-in PID analog quantity adjustment, strong adaptability, and high control accuracy, achieving ±1°C temperature and ±3% relative humidity; the PLC controller is equipped with multiple automatic control functions, including fault diagnosis, energy control, and operating modes, ensuring the unit operates efficiently.
