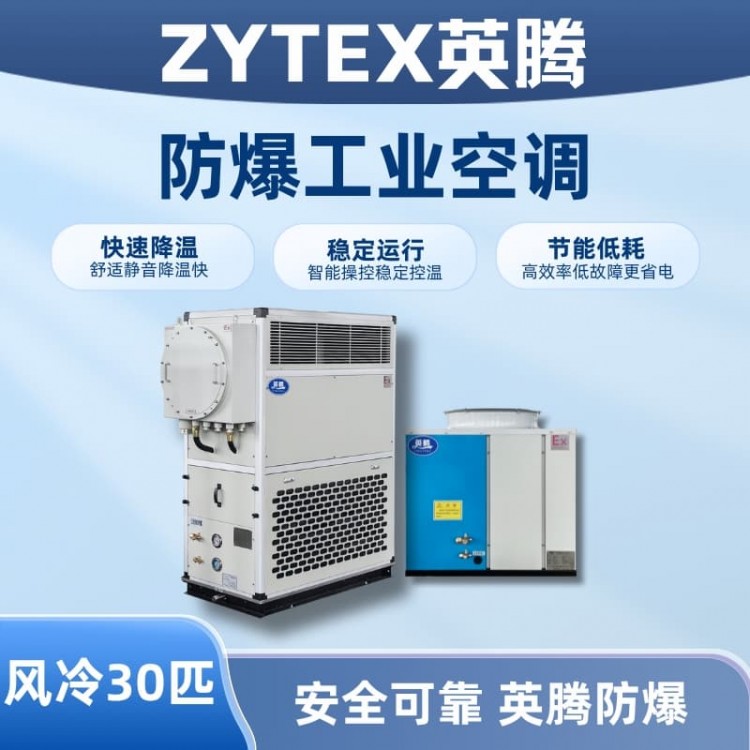

30 HP Air-Cooled Industrial Explosion-Proof Air Conditioner in Cabinet TypeProduct Specifications
Brand: YingTeng
Spec: 30 horsepower
Cooling Capacity: 85.6 kW
Energy Control: 100, 67, 33.0%
Heating Output - Electric Heating: 42KW
Heating Output - Hot Water Heating: 80KW
Heating Capacity - Steam Heating: 120KW
Airflow: 17,000 m³/h
Static Pressure Outside of the Machine: 350 Pa
Engine noise: 75 dB(A)
Temperature control range and accuracy: Heating/cooling type 18-30℃, cooling fan type 20-30℃, sensitivity ±2℃
Power Source: AC 380V 50Hz, three-phase four-wire system
Compressor Type: Scroll Full Enclosed Compressor
Nominal Input Power: 22.5KW
Throttle Type: External Balance Type Thermal Expansion Valve
Evaporator Type: Copper-tube sheathed hydrophilic aluminum foil fins
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Number of Exhaust Fans: 2
Fan Motor Power: 5.6 kW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating heating capacity: 42 kW
Hot Water Heating Capacity: 80KW, Inlet Pipe Diameter: 32mm
Steam heating capacity: 120KW, steam pipe diameter: 32mm
Dimensions (Length × Width × Height mm): 2150×1050×1950 [2305]
Ex db ib mb IIB T4 Gb / Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; indoor temperature DB=27°C, WB=19°C.
2. Heating工况: Outdoor temperature DB=7℃, WB=6℃; Indoor temperature DB=20℃.
3. The remaining refrigerant filling quantity and compressor type are as specified in the specific data of the unit's random documents.
4. For refrigerant units, data other than cooling capacity, heating capacity, power, and charge amount can be referred to in the table above. For data that cannot be referenced, refer to the specific figures in the unit's random materials.
YingTeng explosion-proof industrial air conditioning series products comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type of enclosure"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yinteng explosion-proof industrial air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Group II A, II B, T1 to T4 categories.
The "YingTeng" explosion-proof industrial air conditioning series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof industrial air conditioners are suitable for locations with temperature requirements. These units have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and CCC certificates issued. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Yinteng explosion-proof industrial air conditioners are the latest generation of products meticulously developed by the company, drawing upon a blend of international and domestic design philosophies and refrigeration components. Each model has been tested by the company's authorized testing center, renowned for its accuracy. They are praised for their attractive appearance, superior performance, ease of installation and maintenance, and stable reliability. The product line is comprehensive, with a wide range of models to meet various customer needs. They are widely used in industrial fields such as steel mills, chemical factories, paper mills, printing plants, power plants, substations, food factories, garment factories, and microelectronics factories, as well as in various electrical control rooms.
Variety in form and function
Explosion-proof industrial air conditioners are categorized into three types: direct air supply, top air supply with front return, and top air supply with rear return. To meet the requirements of different working environments or the functional needs of specific usage locations, there are various derivatives available, such as heat pump models, heat pump electric auxiliary heating models, cold electric heating models, cold water heating coil models, 100% outdoor air models, and single cooling models. The wide range of types and capacities ensures that they can satisfy the air conditioning needs of various commercial spaces and industrial special applications.
Direct Air Delivery
Direct-airflow models utilize bidirectional louver blowers, offering a long throw and high airflow volume. They feature a compact size, aesthetic appearance, and simple, flexible application, reducing the amount of renovation and installation work for users. Suitable for local air conditioning in small to medium-sized spaces.
Top-mounted fan type
Top-blowing type uses ducted air supply, allowing users to flexibly select the air supply method and reasonably arrange the number of air outlets based on the space conditions and usage requirements, meeting the needs of centralized management and balanced temperature control in large spaces. The air return methods include front return type, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms; and rear return type, suitable for centralized air conditioning of supply and return air in multiple independent spaces, requiring the setting of return air ducts and machine rooms for each space.
State-of-the-art performance
The product utilizes an efficient spiral compressor, an internationally branded flat heat expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been meticulously tested by an authorized CNAS laboratory testing center, ensuring the product boasts exceptional performance quality and unmatched energy-saving and cost-reduction advantages.
Evaporator
The heat exchanger utilizes high-performance internally threaded copper tubes and hydrophilic finned aluminum fins, further enhanced by advanced mechanical expansion tube processing, achieving optimal heat exchange efficiency.
Condenser
The heat exchanger features a large-scale corrugated aluminum fin design with a wide spacing, processed using advanced mechanical expansion technology. It maximizes adaptation to various harsh dust environments while meeting heat exchange performance and efficiency, reducing maintenance and cleaning, and extending service life.
Microcomputer Control
Microcomputer with user-friendly control, LCD large liquid crystal display, featuring RS-485 communication interface, three working modes of ventilation, cooling, and heating, with timer on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operating data, and full-code query and prompt for fault alarms, convenient and practical; the unit is equipped with multiple protection functions to ensure safe and worry-free operation.
Maintenance and repair
Convenient and streamlined frame-style structure design, fully considering the needs for flexible installation and maintenance, making installation and repair extremely easy. Comes with a double-layer initial efficiency filter mesh that is washable, offering a long service life.
Meet customers' special requirements
Based on customer requirements, additional systems can be provided, including year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long pipeline, fresh air supply, cool storage, remote control, steam heating, and hot water heating units.
In case of special requirements, parameters such as the machine size may be subject to change. Customers must communicate these before placing an order and include specific requirements in the order notes.
