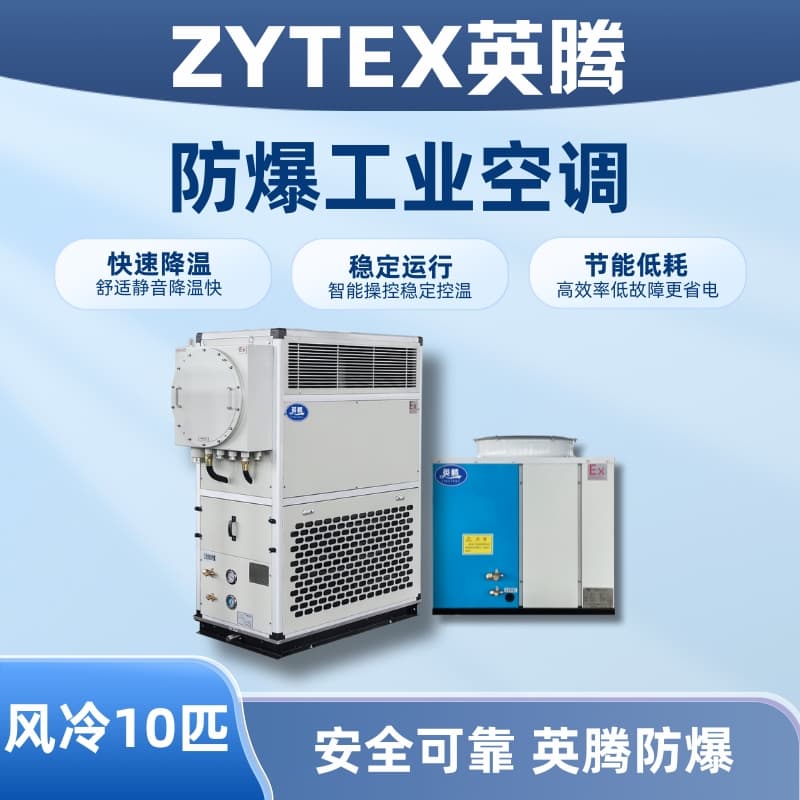

10-horsepower explosion-proof industrial air conditioning unit with forced-air coolingProduct Specifications
Brand: YingTeng
Spec: 10 horsepower
Cooling Capacity: 28.3 kW
Energy Control: 100%
Heating Capacity - Electric Heating: 18KW
Heating Capacity - Hot Water Heating: 25KW
Heating Output - Steam Heating: 40KW
Airflow: 5600 m³/h
Static Pressure Outside the Machine: 200 Pa
Aircraft noise level: 68 dB(A)
Temperature control range and accuracy: Warm/Cold (electric heating) type 18 - 30°C, Cool Fan type 20 - 30°C, sensitivity ±2°C
Power Supply: AC 380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Full Enclosed Compressor
Nominal Input Power: 7.5 kW
Throttling Method: External Balance Thermostatic Expansion Valve
Evaporator Type: Copper tube sleeve hydrophilic aluminum foil fins
Blower Type: External Rotor Low Noise Centrifugal Blower
Number of exhaust fans: 2
Fan Power: 1.1 kW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating power: 18KW
Hot Water Heating: 25KW, Inlet Pipe Diameter: 25mm
Steam heating capacity: 40KW, steam inlet and outlet pipe diameter: 25mm
Dimensions (Length × Width × Height mm): 1400×750×1755 [2075]
Ex db ib mb IIB T4 Gb/Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual unit shall prevail.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; Indoor temperature DB=27°C, WB=19°C.
2. Heating operating conditions: Outdoor temperature DB=7°C, WB=6°C: Indoor temperature DB=20°C.
3. The corresponding filling amount of the remaining refrigerants and the type of compressor are specified in the specific data provided in the unit's random materials.
4. For refrigerant unit data, other than refrigeration capacity, heating capacity, power, and charge amount, refer to the table above. For data not listed, refer to the specific information in the unit's random materials.
The YingTeng explosion-proof industrial air conditioning series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9-2021 "Explosive Atmospheres - Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
Yinteng explosion-proof industrial air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Applicable environment: Temperature -7℃ to 43℃, free of corrosive gases.
c) There are hazardous areas with flammable gases, vapors, and air mixtures, classified as II A, II B, and T1 to T4 groups, posing explosion risks.
The "YingTeng" explosion-proof industrial air conditioning series has been processed with special explosion-proof technology, making it suitable for 1 and 2 zone flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, power plant, and other facilities where II A, IIB, T1-T4 group combustible gases, steam, and air mixtures may pose explosion hazards. The explosion-proof industrial air conditioning is ideal for areas with temperature requirements, having passed inspections and received explosion-proof certificates and CCC certificates from the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products. It boasts an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series features well-known brand compressors, microcomputer intelligent control, digital display, low noise, stable performance, simple operation, and high safety reliability, making it popular in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-type air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
The Yinteng explosion-proof industrial air conditioner is a newly developed generation of air conditioning products by our company, meticulously crafted by integrating the best design concepts and refrigeration components from both international and domestic markets. Each model has been tested by our authorized testing center, renowned for its accuracy and reliability. It boasts an aesthetically pleasing design, superior performance, easy installation and maintenance, and a reputation for stability and dependability. The product line is comprehensive, with various models to meet diverse customer needs. It is widely used in industrial fields such as steel mills, chemical factories, paper mills, printing plants, power plants, substations, food factories, garment factories, microelectronics factories, and various electrical control rooms.
Variety in form and function
Explosion-proof industrial air conditioners are divided into three main types: direct air supply, top supply with front return air, and top supply with rear return air. According to the requirements of different working environments or the functional needs of usage sites, the units have derivatives such as heat pump, heat pump with electric auxiliary heating, cold air electric heating, cold air hot water coil, fresh air, and single cooling models for user selection. With a wide variety of types and a broad cooling capacity range, they can meet the air conditioning needs of various commercial spaces and industrial special applications.
Direct Air Delivery
Direct air supply models use bidirectional louvers for blowing air, featuring long air throw and high air volume. They offer many advantages such as compact size, attractive appearance, and simple and flexible application, reducing the amount of renovation and installation work for users. They are suitable for local air conditioning in medium and small spaces.
Top-mounted exhaust fan
The top-mounted fan type utilizes ducted air supply, allowing users to flexibly select the air supply method and reasonably arrange the number of air outlets based on the space conditions and usage requirements. This meets the needs of centralized management and balanced temperature control in large spaces. The return air method is further divided into front return type, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms; and rear return type, suitable for centralized air conditioning of supply and return air in multiple independent spaces, requiring the setup of return air ducts and machine rooms for each space.
Advanced performance
The product utilizes a high-efficiency screw compressor, an externally piloted thermal expansion valve from an international brand, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been meticulously tested by a CNAS-accredited and authorized testing center. The products boast exceptional performance quality and offer unparalleled energy-saving and cost-reduction advantages.
Evaporator
The heat exchanger employs high-performance internally threaded copper tubes and hydrophilic finned aluminum fins, further enhanced by the advanced mechanical expansion process, achieving optimal heat exchange efficiency.
Condenser
The heat exchanger features a large-diameter corrugated fin design made of aluminum, processed through advanced mechanical expansion tube technology. It maximizes adaptability to various harsh dust environments while meeting heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.
Microcomputer Control
Microcomputer with user-friendly control, LCD large liquid crystal display, featuring RS-485 communication interface, three operating modes: ventilation, cooling, and heating, with timer on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operational data, and fault alarm full-code query and prompt functions, convenient and practical. The unit is equipped with multiple protection features to ensure safe and worry-free operation.
Maintenance & Repair
Convenient, straightforward, and functional framework-style structure design, taking full consideration of the needs for flexible installation and maintenance, ensuring easy installation and repair. Includes a double-layer pre-effect filter that can be removed and washed, offering a long service life.
Meet customers' special requirements
Based on customer requirements, we can add systems with year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coatings, long-connection pipelines, fresh air supply, cool storage, remote control, steam heating, and hot water heating, etc.
Should there be any special requirements, parameters such as the aircraft dimensions may be subject to change. Customers must communicate these requirements prior to placing an order and include them as special notes on the order.
