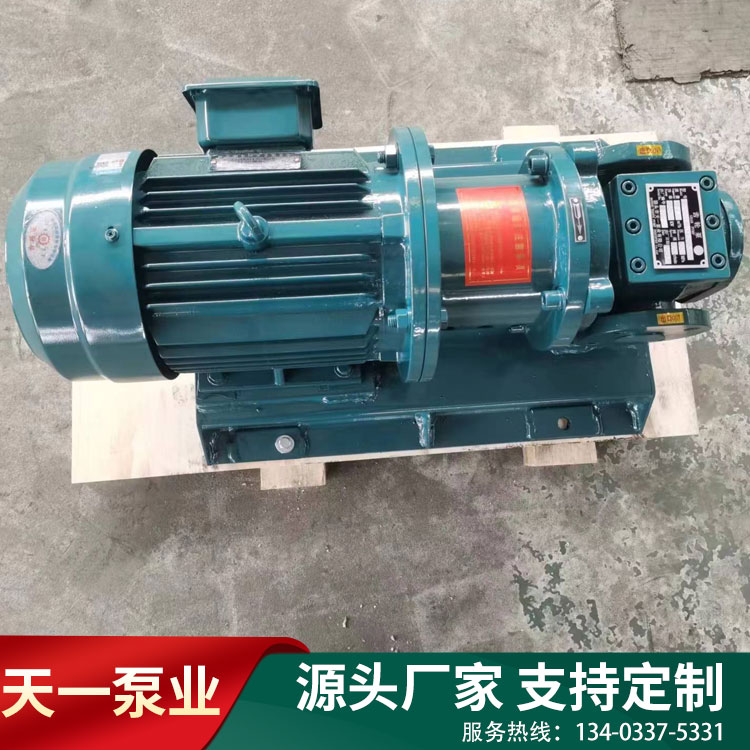

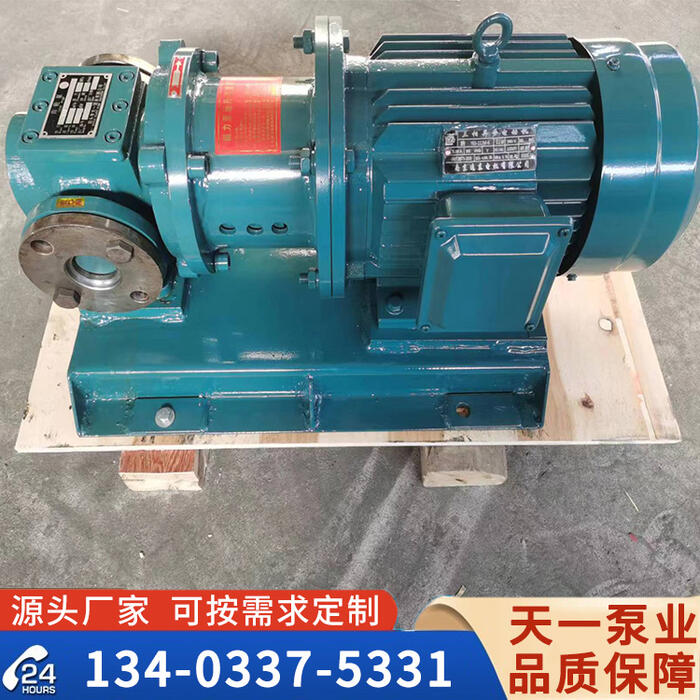

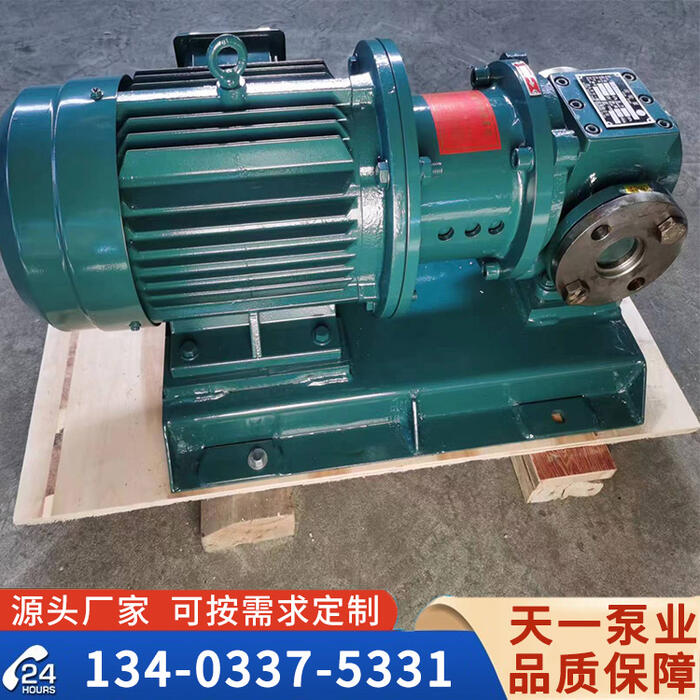

The YCB4-0.6 Magnetic Gear Pump is a pump designed specifically for transferring lubricants or other liquids with similar properties that are free of solid particles and fibers, non-corrosive, with temperatures below 80°C, and viscosities ranging from 5 to 1500 cSt. It employs superior magnetic drive technology, achieving complete isolation between the pump shaft and the motor shaft, eliminating the leakage risks that may be present in traditional mechanical seal pumps. This ensures safety and cleanliness in the production environment.
Operating Principle
The YCB4-0.6 Magnetic Gear Pump's core lies in its unique magnetic coupling system, which consists of a driving magnet wheel and a passive magnet wheel. The driving magnet wheel is connected to the motor, and as the motor starts, the driving magnet wheel rotates at high speed, generating a strong rotating magnetic field. The passive magnet wheel is mounted on the pump shaft and is closely connected to the gears inside the pump. Through magnetic coupling, the rotational force of the driving magnet wheel is transmitted to the passive magnet wheel without contact, thereby driving the pump shaft and gears to rotate synchronously.
During the pump's operation, the pump chamber volume undergoes periodic changes as the gears engage and disengage. At the suction port, the gears gradually disengage, increasing the pump chamber volume and creating a vacuum to draw fluid into the chamber; at the discharge port, the gears gradually engage, reducing the pump chamber volume and forcing the fluid out at a stable pressure. This method of power transmission through magnetic coupling avoids the leakage risks associated with shaft seals in traditional mechanical transmissions, while also reducing mechanical friction and wear, significantly enhancing the pump's operational stability and lifespan.
Product Structure
Magnetic drive technology
The core technology of the YCB4-0.6 magnetic gear pump lies in its magnetic drive system. This system transmits torque through the magnetic field coupling of the internal and external magnetic rotors, eliminating the need for traditional mechanical seals and thus preventing leakage issues caused by seal wear. The magnetic drive technology not only enhances the pump's operational stability but also reduces noise and vibration, extending the pump's service life.
2. Arc Gear Design
The pump housing is internally equipped with double-arc sine wave gear teeth, which design ensures there's no relative sliding between the tooth profiles during engagement, reducing energy loss and wear. Additionally, the engagement of the arc gears is more stable, lowering noise and vibration, and enhancing the pump's efficiency.
3. Safety Protection Device
The pump housing is equipped with a safety valve as an overload protection device. When the pump's discharge pressure exceeds the rated value, the safety valve will automatically open, returning a portion of the fluid back to the pump's inlet, thereby preventing damage to the pump due to overloading. This design not only ensures the safe operation of the pump but also enhances the reliability of the equipment.
Features and Advantages
No-leak design
Due to the use of magnetic drive technology, the YCB4-0.6 magnetic gear pump achieves zero-leakage transfer, effectively avoiding the leakage issues that may be present in traditional mechanical seal pumps. This is particularly important for applications that require maintaining a clean environment or transferring toxic or harmful liquids.
2. Wear-resistant and long-lasting
The design of the arc gears minimizes internal wear of the pump housing, extending the pump's lifespan. Additionally, the magnetic drive system reduces contact and wear of mechanical components, further enhancing the reliability of the equipment.
3. Effective Energy Savings
Highly energy-efficient motors and optimized pump design ensure the YCB4-0.6 magnetic gear pump operates with lower energy consumption and higher efficiency. This helps reduce operational costs for businesses and enhance economic benefits.
4. Easy to maintain and service
The YCB4-0.6 magnetic gear pump features a simple and compact structural design, making it easy to disassemble and maintain. Additionally, the pump body is internally lubricated, which reduces maintenance efforts. Regularly replacing the lubricating oil and inspecting the seals ensures the pump's long-term stable operation.
Application Scenario
1. Chemical Industry: During chemical production, the transportation of various chemicals with corrosive, flammable, explosive, or high purity requirements is often necessary, such as sulfuric acid, solutions, organic solvents, etc.
2. Pharmaceutical Industry: The pharmaceutical sector demands stringent cleanliness in production environments and stability in drug quality.
3. Food and Beverage Industry: In the production process of food and beverage, the transportation of various raw materials, semi-finished, and finished products is required, such as syrups, juices, milk, edible oils, etc.
4. Oil & Gas Industry: In the oil extraction, refining, and natural gas processing stages, various media with different viscosities and corrosive properties, such as natural gas condensate, need to be transported.
