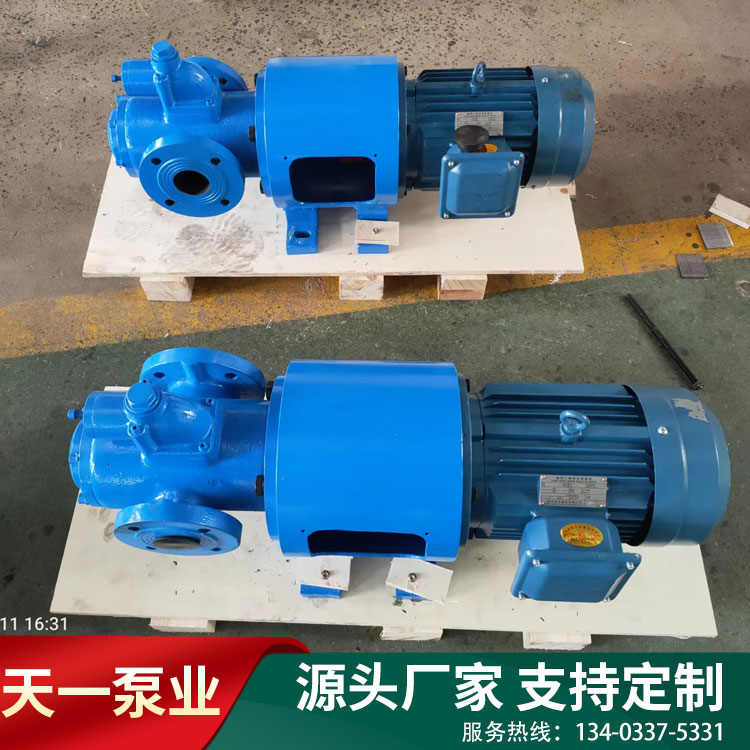

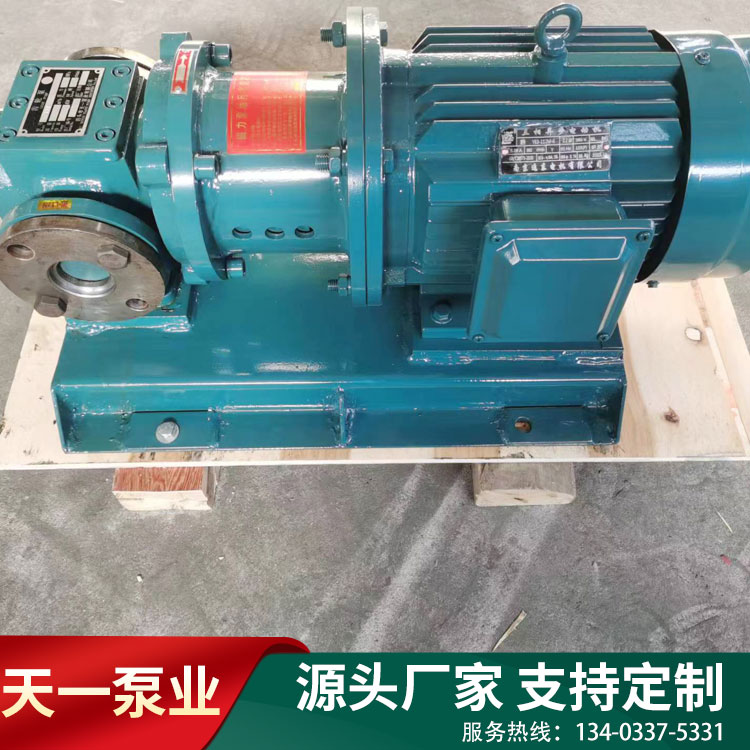

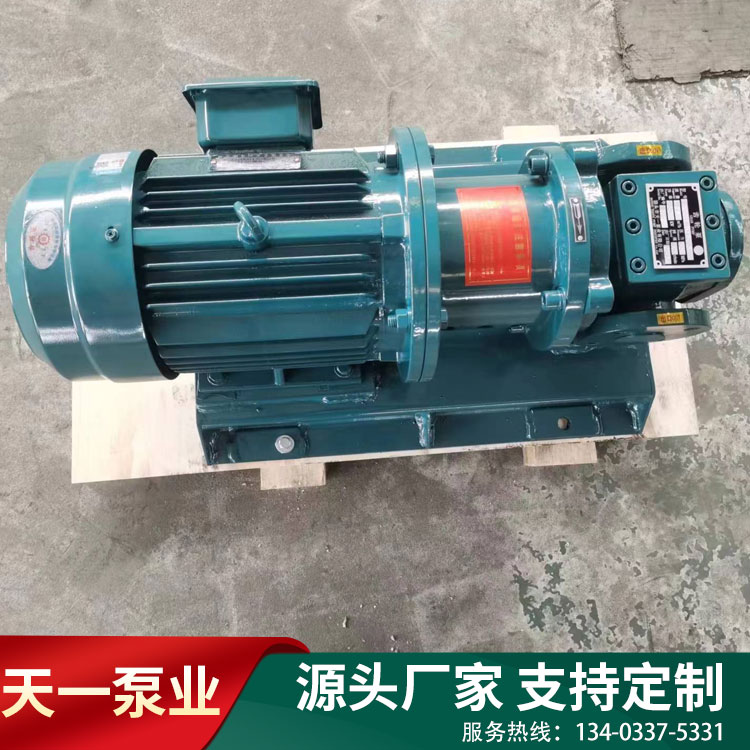

YCB Magnetic PumpA fluid conveying device that combines magnetic drive technology with the principles of a gear pump.YCB Magnetic PumpAlso known as an Arc Magnetic Drive Pump, it is a specially designed magnetic drive gear pump. It is primarily used in water systems requiring low flow rates and high lift, as well as for transporting specific media in application scenarios.
The following is a detailed introduction to the YCB Magnetic Pump:
I. Product Features
Leakproof Design: The YCB magnetic pump utilizes magnetic coupling transmission technology, achieving a contactless transmission between the pump body and motor, eliminating the risk of medium leakage. It is particularly suitable for transporting flammable, explosive, toxic, harmful, or corrosive media.
High Corrosion Resistance: The pump body and flow components are typically made of materials like stainless steel, which are resistant to various corrosive media.
Operation Smooth: The working principle of the gear pump ensures that the YCB magnetic pump maintains a stable flow rate, low pressure pulsation, and low noise during operation.
Energy-saving: Magnetic drive technology reduces mechanical friction and energy loss, enhancing pump efficiency and achieving energy conservation and consumption reduction.
Ease of Maintenance: With no contact between the pump housing and motor, maintenance workload is reduced, and the pump housing is compact, making it easy to disassemble and repair.
Section 2: YCB Magnetic Pump Specifications Table:
Model | Bore （inch） | Traffic | Pressure | Vacuum Degree | Power | Efficiency | RPM |
YCB-17/10 | ¾″ | 17 | 1.0 | 0.35 | 0.75 | ≥85 | 1450 |
YCB-16/25 | ¾″ | 16 | 2.5 | 0.35 | 1.5 | ≥85 | 1450 |
YCB-32/10 | 1″ | 32 | 1.0 | 0.35 | 1.5 | ≥85 | 1450 |
YCB-32/25 | 1″ | 30 | 2.5 | 0.35 | 3 | ≥85 | 1450 |
YCB-45/10 | 1″ | 45 | 1.0 | 0.35 | 2.2 | ≥85 | 1450 |
YCB-42/25 | 1″ | 42 | 2.5 | 0.35 | 4 | ≥85 | 1450 |
YCB-65/10 | 1¼″ | 65 | 1.0 | 0.35 | 3 | ≥85 | 1450 |
YCB-65/25 | 1¼″ | 60 | 2.5 | 0.35 | 5.5 | ≥85 | 1450 |
YCB-110/10 | 1½″ | 110 | 1.0 | 0.35 | 4 | ≥85 | 1450 |
YCB-100/25 | 1½″ | 100 | 2.5 | 0.35 | 7.5 | ≥85 | 1450 |
YCB-122/3.3 | 2″ | 122 | 0.33 | 0.35 | 4 | ≥85 | 1450 |
YCB-190/3.3 | 2″ | 190 | 0.33 | 0.35 | 4 | ≥85 | 1450 |
YCB-180/6 | 2″ | 180 | 0.6 | 0.35 | 5.5 | ≥85 | 1450 |
YCB-270/6 | 3″ | 270 | 0.6 | 0.35 | 5.5 | ≥85 | 960 |
YCB-430/3.6 | 3″ | 430 | 0.36 | 0.35 | 7.5 | ≥85 | 1450 |
YCB-400/10 | 3″ | 400 | 1.0 | 0.35 | 11 | ≥85 | 1450 |
YCB-583/2.8 | 4″ | 583 | 0.28 | 0.35 | 11 | ≥85 | 960 |
YCB-850/3 | 4″ | 850 | 0.3 | 0.35 | 18.5 | ≥85 | 1450 |
Section 3: Applicable Scope
YCB Magnetic Pumps are widely used in the following fields:
Chemical Industry: Used for conveying various corrosive, flammable, explosive, and toxic/harmful liquid mediums.
Pharmaceutical Industry: Transfer high-purity liquid mediums during the pharmaceutical process, such as drug solutions and solvents.
Food Industry: Transports liquid media with strict hygiene requirements during the food processing, such as beverages, dairy products, etc.
Environmental Protection Industry: Conveys various mediums in environmental projects such as sewage treatment and wastewater treatment.
Other Industries: Applications requiring the conveyance of special mediums in industries such as oil, textiles, and papermaking.
Section 3: Selection and Precautions
When selecting a YCB magnetic pump, choose the appropriate model and specification based on the actual working conditions and medium characteristics. Focus on factors such as the medium's corrosiveness, viscosity, temperature, pressure, as well as the pump's flow rate, head, and other performance parameters.
Installation: Ensure the pump housing is horizontally positioned during installation, and the inlet and outlet pipes are correctly connected to avoid excessive stress and vibration on the pump housing.
Operation: During operation, the pump's running status should be checked regularly for normalcy, such as temperature, noise, and vibration. Any abnormal conditions should prompt immediate shutdown for inspection and troubleshooting.
Maintenance: Regular maintenance of the pump, such as changing lubricating oil and cleaning the pump body, to ensure long-term stable operation.
