SD-2Type Digital Load Cell Indicator
(1) Brief Introduction:
This factory is a manufacturer ofSD-2Manufacturer of the model digital point load tester, the first to adopt instrument data sampling. Our data sampler is an intelligent unit that integrates a digital pressure sensor and a liquid crystal display, capable of capturing the peak value at the moment and simultaneously displaying real-time pressure data. It avoids measurement errors caused by the inherent linear error of mechanical pressure gauges and human visual errors during rock point load tests, especially solving the issue of human eye reaction time lag during instantaneous failure. It achieves real-time and accurate sampling during testing. The instrument is designed with imported components, high-precision pressure sensors, and has the following features::
1High-precision pressure transmitter made with silicon resistance sensors, accuracy<0.3%Ensures consistency for long-term use.
2Please use1300mAnLithium-ion battery with low power consumption design, featuring an integrated, reliable charging management circuit, and an automatic shutdown protection function for low battery voltage; one charge provides continuous usage10Hour(s)
3Internally equipped with a real-time clock, enabling time-stamped sampling of test data.
4Storage available120A set of test result data.
5Auto-Energy Saving Mode: When in normal operation, if the instrument25No operation within a minute will automatically shut down the instrument.
6、Calibration and zeroing operations for sensors are available.
7Industrial-grade component selection, meets-10℃~70Operate in °C environment.
8、The complete machine boasts a sleek and simple design, with a light weight, compact size, and great portability.
(II) Technical Specifications:
1. Maximum Pressure Sensor Range:100KnAccuracy<0.3%，
2. Sampling Rate: 1000 times/s
3. Power Adapter Power: AC 220V ±10%, 50Hz
4. Total Power Consumption: ≤1W
5. Working Environment: -20~70℃
6. Backup Power Capacity: 1.3
7. Maximum Working Pressure of Oil Cylinder: 60 MPa
8. Piston Diameter:￠45mm, stroke 45mm
9. Test Dimensions: Max 100mm
10. Piston Area: 15.9 square centimeters
(3) Main Functions:
1Rock point load test
（1Features:Point load test involves placing a rock specimen between two spherical conical plates, applying a concentrated load to the specimen until failure, and then determining the point load strength of the rock based on the failure load.
Point load strength can be used as an indicator for rock strength classification and rock mass weathering classification, and it can also be employed to evaluate the degree of anisotropy in rock strength, as well as to predict other related strength indicators such as uniaxial compressive strength and tensile strength.

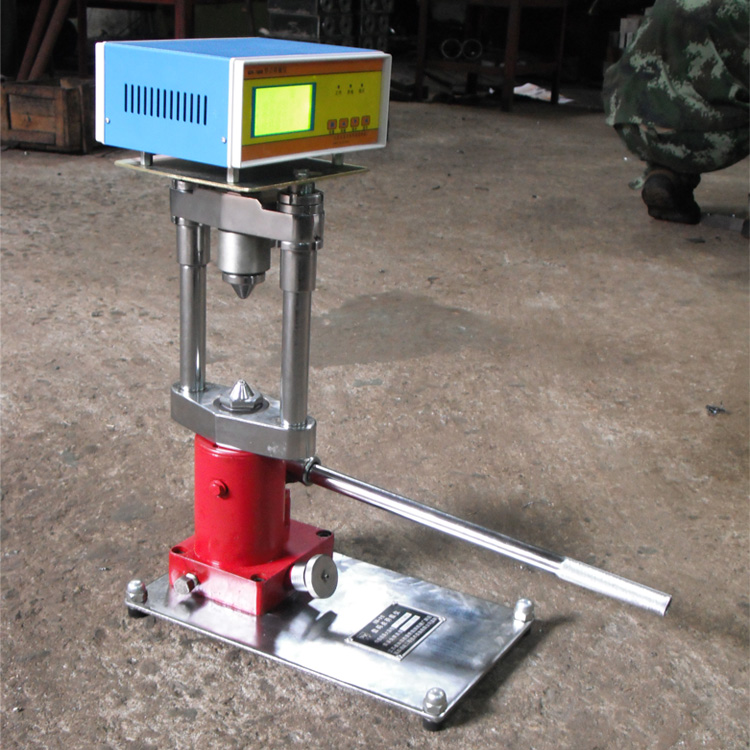

（2The loading system consists of a pressure oil pump, a pressure-bearing frame, and a spherical cone-shaped pressure plate. The oil pump output
Approximately 100 horsepower60kNThe loading frame has sufficient rigidity to ensure resistance under repeated maximum load application.
No permanent distortion or deformation; spherical end conical plate with spherical curvature radius of5mmPyramidal top angle
Please provide the Chinese content to be translated.60°(See illustration), made of durable materials.
（2The entire load measurement system can withstand hydraulic shock and vibration, unaffected by repeated loading.
