30 HP Air-Cooled Industrial Air Conditioner Product Specifications

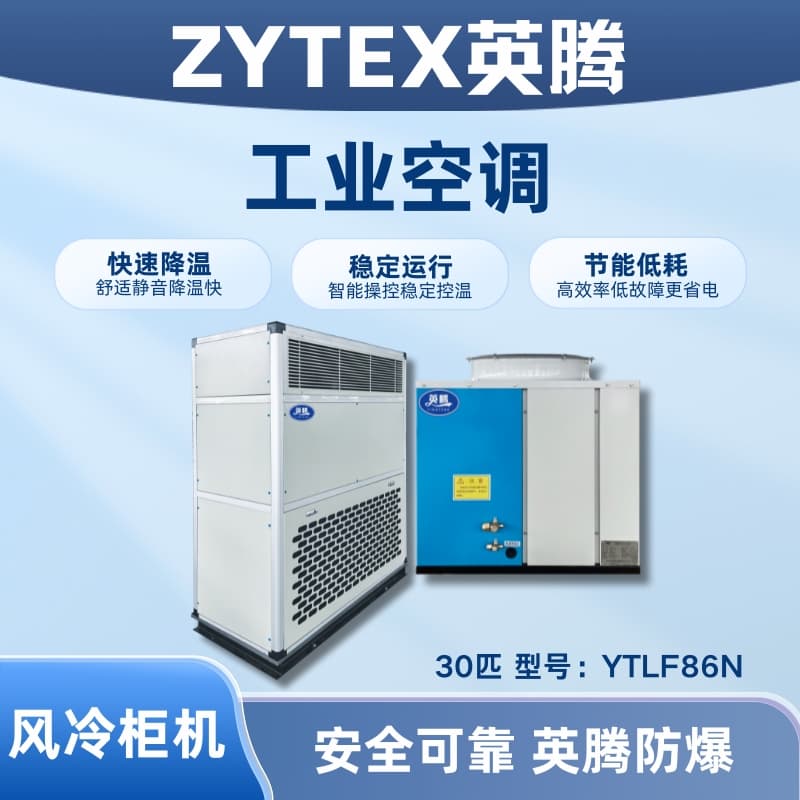

Model:YTLF86N

Brand: YingTeng

Spec: 30 HP

Cooling Capacity: 85.6 kW

Energy Control: 100, 67, 33.0%

Heating Capacity - Electric Heating: 42 kW

Heating Capacity - Hot Water Heating: 80 kW

Heating Capacity - Steam Heating: 120 kW

Airflow: 17,000 m³/h

Outdoor static pressure: 350 Pa

Engine noise: 75 dB(A)

Temperature Control Range and Accuracy: Cold and Heat (Electric Heating) Type: 18-30°C, Air Cooler Type: 20-30°C, Sensitivity: ±2°C

Power Supply: AC380V 50Hz, 3-phase 4-wire system

Compressor Type: Scroll Totally Enclosed Compressor

Nominal Input Power: 22.5 kW

Throttling Method: External Balance Thermostatic Expansion Valve

Evaporator Type: Copper Tube Sheathed Hydrophilic Aluminum Foil Fin

Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan

Number of exhaust fans: 2

Fan Power: 5.6 kW

Filter Type: Initial Efficiency Nylon Mesh (Panel Type)

Electric heating power: 42KW

Hot Water Heating Capacity: 80KW, Inlet Pipe Diameter: 32mm

Steam heating capacity: 120KW, steam inlet and outlet pipe diameter: 32mm

Dimensions (Length x Width x Height mm): 2150×1050×1950 [2305]

Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.

Note: The above technical parameters are for reference only, and the physical product shall prevail.

1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; indoor temperature DB=27°C, WB=19°C.

2. Heating Conditions: Outdoor Temperature DB=7°C, WB=6°C: Indoor Temperature DB=20°C.

3. The corresponding charging amount for the remaining refrigerants and the type of compressor are specified in the specific data of the unit's random materials.

4. For refrigerant units, data other than cooling capacity, heating capacity, power, and charge volume can be referenced in the above table. For data that cannot be referenced, please refer to the specific figures in the random materials provided with the unit.

YingTeng Industrial Air Conditioning is a new generation of air conditioning products meticulously developed by the company, drawing on a wealth of international and domestic design philosophies and refrigeration components. Each model has been tested by the company's nationally accredited and authorized testing center. It boasts aesthetic appearance, superior performance, ease of installation and maintenance, and a reputation for stability and reliability. The product range is comprehensive with numerous models, catering to diverse user needs. It is widely used in various industrial fields such as steel mills, chemical factories, paper mills, printing plants, power plants, sub-stations, food factories, garment factories, and microelectronics plants, as well as in various electrical control rooms.

Diverse in form and function

Industrial air conditioning systems are categorized into three main types: direct air supply, top supply with front return air, and top supply with rear return air. To meet the requirements of different working environments or functional needs of usage sites, the units are derived into types such as heat pump, heat pump with electric auxiliary heating, cold air electric heating, cold air hot water coil, 100% fresh air, and single cooling models. The variety of types and wide range of cooling capacities can satisfy the air conditioning needs of various commercial spaces and industrial special applications.

Direct-air delivery

Direct-airflow models use bidirectional louver blowing, offering long air throw and high airflow volume. They feature compact size, attractive appearance, simple and flexible application, and reduce the amount of decoration and installation work required. Suitable for partial air conditioning in medium and small spaces.

Top-mounted fan type

Top-mounted air supply models utilize ducted air supply, allowing users to flexibly choose the air supply method and reasonably arrange the number of air outlets based on the space conditions and requirements, meeting the needs of centralized management and balanced temperature control in large spaces. The return air methods are further divided into front return air models, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms; and rear return air models, suitable for centralized air conditioning of return air in multiple independent spaces, requiring the installation of return air ducts and machine rooms for each space.

Advanced performance

The product features an efficient spiral compressor, an externally flat thermal expansion valve from an international brand, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been thoroughly tested by a CNAS-accredited and authorized testing center. The products offer superior performance quality and unparalleled energy-saving advantages.

Evaporator

The heat exchanger utilizes high-performance internally threaded copper tubes and hydrophilic finned aluminum baffles, further enhanced by advanced mechanical expansion tube processing, thereby achieving optimal heat exchange efficiency.

Condenser

The heat exchanger features a large-diameter corrugated fin design with aluminum, processed through advanced mechanical expansion tube technology. It maximizes adaptability to various harsh dust environments while meeting heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.

Microcomputer control

Microcomputer with user-friendly control, LCD large-screen display, featuring RS-485 communication interface, three operating modes of ventilation, refrigeration, and heating, with timer on/off function, power failure memory function, and real-time clock display; optimized control logic, meticulously designed operating data, and full-code query and prompt for fault alarms, convenient and practical; the unit is equipped with multiple protection functions to ensure safe and worry-free operation.

Maintenance and repair

Convenient and streamlined framework design, with a focus on flexible installation and maintenance, ensuring ease of installation and repair. Includes a double-layer initial efficiency filter, which is washable and has a long service life.

Meet customers' special requirements

According to customer requirements, additional systems can be provided, including year-round refrigeration operation, high air volume with low enthalpy difference, anti-corrosion coating, long connecting pipes, 100% fresh air, shaded storage, remote control, steam heating, and hot water heating.

Should there be any special requirements, the dimensions and other parameters of the assembly may vary. Customers are required to communicate these before placing an order and note the special requirements in the order details.
