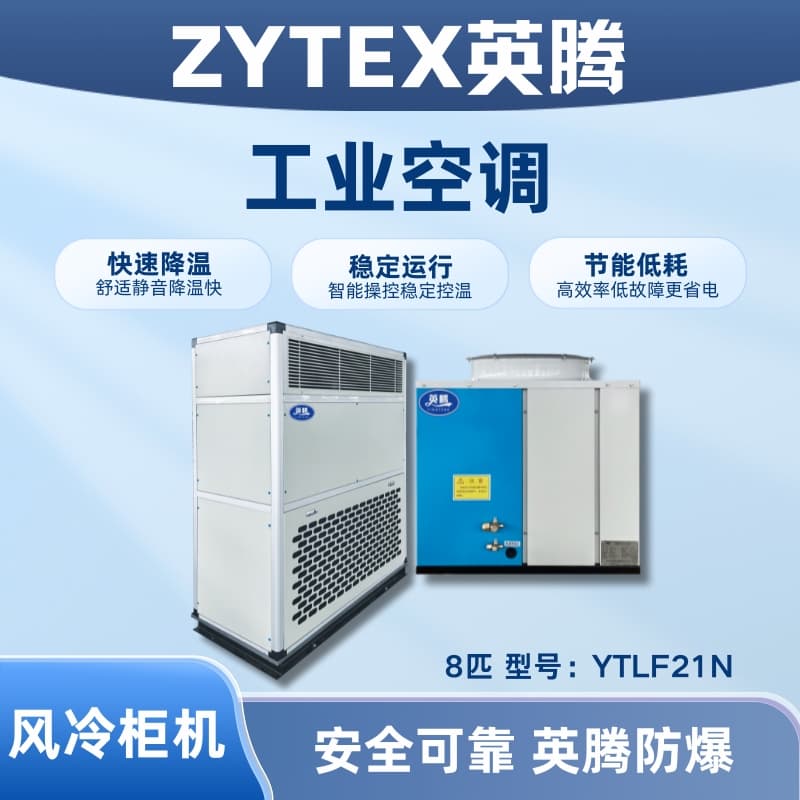

Model:YTLF21N
Brand: YingTeng
Spec: 8 HP
Cooling Capacity: 20.8 kW
Energy Control: 100%
Heating Capacity - Electric Heating: 12KW
Heating Output - Hot Water Heating: 20KW
Heating Capacity - Steam Heating: 30KW
Airflow: 4500 m³/h
Static Pressure Outside the Machine: 150 Pa
Aircraft noise level: 65 dB(A)
Temperature control range and accuracy: Heat/Cool (electric heating) type: 18-30°C, Cold fan type: 20-30°C, Sensitivity: ±2°C
Power Supply: AC380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Full Enclosed Compressor
Nominal Input Power: 5.6 kW
Throttling Method: External Balance Thermostatic Expansion Valve
Evaporator Type: Copper-tube sheathed hydrophilic aluminum foil fin
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Number of blowers: 2
Fan Motor Power: 0.75 kW
Filter Type: Initial Efficiency Nylon Mesh (Plate Type)
Electric heating output: 12 kW
Hot water heating capacity: 20KW, inlet pipe diameter: 25mm
Steam heating heating capacity: 30KW, steam inlet and outlet pipe diameter: 25mm
Dimensions (Length x Width x Height mm): 1400 x 750 x 1755 [2075]
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual product is the definitive standard.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; indoor temperature DB=27°C, WB=19°C.
2. Heating Condition: Outdoor temperature DB=7°C, WB=6°C; Indoor temperature DB=20°C.
3. The filling amount of the remaining refrigerants and the type of compressors are specified according to the specific data in the random documentation of the unit.
4. For refrigerant units, data other than cooling capacity, heating capacity, power, and filling amount can be referred to in the above table. For data that cannot be referenced, refer to the specific data in the unit's random materials.
Yiting Industrial Air Conditioning is the company's latest generation of air conditioning products, meticulously developed by integrating the best of both international and domestic design philosophies and refrigeration components. Each model has been tested by the company's nationally recognized and authorized testing center. Known for its attractive appearance, superior performance, ease of installation and maintenance, and stable reliability, it enjoys a reputation for trustworthiness. The product line is comprehensive, with a wide range of models to meet various user needs, and is widely used in industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substations, food factories, clothing factories, and microelectronics factories, as well as in various electrical control rooms.
Diverse in form and function
Industrial air conditioners are categorized into three main types: direct air supply, top supply with front return air, and top supply with rear return air. To meet the requirements of different working environments or the specific functional needs of the application sites, various units are derived, including heat pump types, heat pump with electric auxiliary heating, chilled water electric heating, chilled water and hot water coil types, fresh air types, and single cooling models. With a wide range of types and capacities, these units can satisfy the air conditioning needs of various commercial spaces and industrial special applications.
Direct Air Delivery
Direct-airflow models use bidirectional louver blowers, offering long throw distance and high airflow volume. They feature compact size, attractive appearance, simple and flexible application, and reduce the amount of decoration and installation work for users. Suitable for local air conditioning in medium and small spaces.
Top-blow type
Top-mounted air supply models use ducted air distribution for air supply. Users can flexibly choose the air supply method and reasonably arrange the number of air outlets based on the space conditions and usage requirements, meeting the needs of centralized management and balanced temperature control in large spaces. The return air methods include front return air type, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms: and rear return air type, suitable for centralized air conditioning of return air in multiple independent spaces, requiring the setting of return air ducts and machine rooms for each space.
Advanced performance
The product utilizes an efficient spiral compressor, an internationally branded flat-plate thermal expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been carefully tested by a CNAS-accredited and authorized testing center. The products offer exceptional performance quality and unparalleled advantages in energy conservation and consumption reduction.
Evaporator
The heat exchanger employs high-performance internal threaded copper tubes and hydrophilic baffle aluminum fin, further processed through advanced mechanical expansion tube technology, enabling optimal heat exchange efficiency.
Condenser
The heat exchanger features a large-diameter corrugated fin design with aluminum, processed through advanced mechanical expansion tube technology. It maximizes adaptation to various harsh dust environments while ensuring heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.
Microcomputer control
Microcomputer with humanized control, large LCD display, featuring RS-485 communication interface, three working modes: ventilation, refrigeration, and heating, with scheduled on/off, power failure memory function, and real-time clock display; optimized control logic, meticulously designed operating data and fault alarm full code query and prompt function, convenient and practical. The unit is equipped with multiple protective features to ensure safe and worry-free operation.
Maintenance and repair
Convenient and streamlined framework structure design, fully considering the needs for flexible installation and maintenance, making installation and repair extremely easy. Comes with a double-layer initial efficiency filter mesh that is washable, ensuring a long service life.
Meet customers' special requirements
Based on customer requirements, additional units can be equipped with year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long connection piping, fresh air supply, shaded storage, remote control, steam heating, and hot water heating, etc.
Should there be any special requirements, parameters such as the aircraft dimensions may be subject to change. Customers must communicate these requirements prior to placing an order and include them as special notes in the order.
