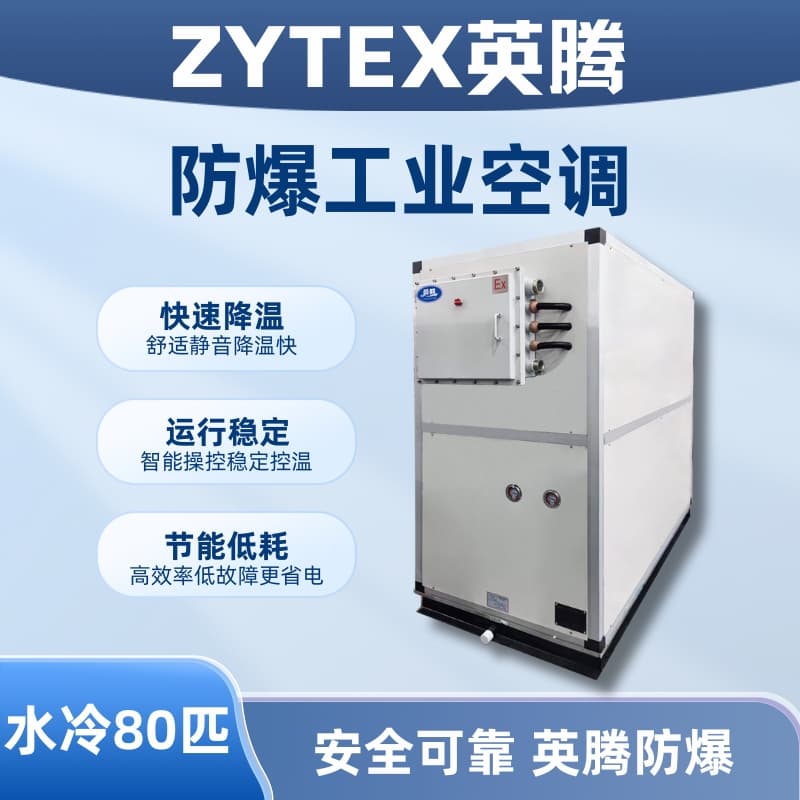

80 HP Water-Cooled Cabinet Industrial Explosion-Proof Air ConditionerProduct Specifications
Brand: YingTeng
Spec: 80 HP
Cooling Capacity: 215.1 kW
Energy Control: 100, 67, 33.0%
Heating Output - Electric Heating: 96 kW
Heating Capacity - Hot Water Heating: 200KW
Heating Capacity - Steam Heating: 280 kW
Airflow: 37,000 m³/h
Static Pressure Outside the Machine: 550 Pa
Aircraft noise: 87 dB(A)
Temperature control range and accuracy: Heating/Cooling type 18-30°C, Cool air type 20-30°C, Sensitivity ±2°C
Power Supply: AC 380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Full Enclosed Compressor
Nominal Input Power: 60.0 kW
Condenser Type: High-Efficiency Shell and Tube
Flow Rate: 41 m³/h
Pipe diameter for inlet and outlet: DN125
Throttle Method: External Balanced Thermal Expansion Valve
Evaporator Type: Copper tube sleeve with hydrophilic aluminum foil fins
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Number of blowers: 3
Fan Power: 15.0 kW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating power: 96KW
Hot Water Heating: 200KW, Inlet Pipe Diameter: 40mm
Steam heating capacity: 280 kW, steam inlet and outlet pipe diameter: 40 mm
Dimensions (Length × Width × Height mm): 2980×1450×2400 [2400]
Ex db ib mb IIB T4 Gb/Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall be the criterion.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; indoor temperature DB=27°C, WB=19°C.
2. Heating Condition: Outdoor temperature DB=7°C, WB=6°C; Indoor temperature DB=20°C.
3. The corresponding filling quantity of the remaining refrigerants and compressor types are as specified in the specific data provided in the random data of the unit.
4. For refrigerant units, data other than cooling capacity, heating capacity, power, and charge amount can be referred to in the table above. For data that cannot be referenced, please refer to the specific data in the unit's random materials.
The YingTeng explosion-proof industrial air conditioning series products comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements"
GB/T 3836.2 - 2021 "Explosive Atmospheres *Part 2: Equipment protected by explosion-proof enclosures 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by encased "m" type"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
Yinteng explosion-proof industrial air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7°C to 43°C, free from corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof industrial air conditioning series has been specially processed with explosion-proof technology, making it suitable for widespread use in Class 1 and Class 2 flammable and explosive environments. It is ideal for scientific research, oil, chemicals, pharmaceuticals, power plants, and other locations where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures posing explosion hazards. The explosion-proof industrial air conditioning is designed for temperature-controlled environments and has passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving explosion-proof certificates and CCC certification. It boasts an aesthetically pleasing design, reasonable structure, ease of installation and maintenance. The entire series uses renowned compressors, microcomputer intelligent control, digital display, and features low noise, stable performance, simple operation, and safety. It is highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
YingTeng explosion-proof industrial air conditioners are the latest generation of air conditioning products meticulously developed by our company, drawing on the best of both international and domestic design philosophies and refrigeration components. Each model has been tested by our company's recognized and authorized testing center. They are renowned for their attractive appearance, superior performance, ease of installation and maintenance, and stable and reliable operation. The product range is comprehensive, with numerous models to meet various user needs. They are widely used in various industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substation, food factories, garment factories, and microelectronics factories, as well as in various electrical control rooms.
Diverse in form and function
Explosion-proof industrial air conditioners are categorized into three types: direct air supply, top air supply with front return, and top air supply with rear return. To meet the requirements of different working environments or functional needs of specific usage sites, the units are derived into types such as heat pump, heat pump with electric auxiliary heating, cold air with electric heating, cold air with hot water coil, 100% fresh air, and single cooling models. The variety of types and wide range of cooling capacities can satisfy the needs of air conditioning for various commercial spaces and industrial special applications.
Direct Air Delivery
Direct-airflow models utilize bidirectional louvered fans for blowing air, offering a long throw and high air volume. They feature compact size, attractive appearance, and simple, flexible application, reducing the amount of renovation and installation work for users. Suitable for local air conditioning in medium and small spaces.
Top-mounted exhaust fan
Top-mounted air supply models utilize ducted air distribution, allowing users to flexibly choose the air supply method and reasonably arrange the number of air outlets based on the space conditions and usage requirements, meeting the needs of centralized management and balanced temperature control in large spaces. The return air methods are further divided into front return air models, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms; and rear return air models, suitable for centralized air conditioning of return air in multiple independent spaces, requiring the installation of return air ducts and machine rooms for each space.
Advanced performance
The product features an efficient vortex-type compressor, an internationally branded external expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been carefully tested by a CNAS-accredited and authorized testing center. The products offer superior performance quality and unparalleled advantages in energy saving and consumption reduction.
Evaporator
The heat exchanger features high-performance internally threaded copper tubes and hydrophilic finned aluminum baffles, further enhanced by advanced mechanical expansion tube processing, achieving optimal heat exchange efficiency.
Condenser
Heat exchangers are designed with large-diameter corrugated fin designs, processed through advanced mechanical expansion tube technology. They offer maximum adaptability to various harsh dust environments while ensuring excellent heat exchange performance and efficiency, thereby reducing maintenance and cleaning needs, and extending service life.
Microcomputer control
Microcomputer with user-friendly control, LCD large screen display, featuring RS-485 communication interface, three operating modes of ventilation, cooling, and heating, with timer on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operating data and fault alarm full-code query and prompt function, convenient and practical; the unit is equipped with multiple protection functions to ensure safe and worry-free operation.
Maintenance and repair
Convenient, streamlined, and functional frame structure design, fully considering the needs for flexible installation and maintenance, making installation and repair very easy. Includes a double-layer initial efficiency filter with removable and washable features, offering a long service life.
Meet customers' special requirements
According to customer requirements, options can be added for year-round refrigeration operation, high air volume with low enthalpy difference, corrosion-resistant coating, long connecting pipelines, fresh air supply, shaded storage, remote control, steam heating, and hot water heating systems.
Should there be any special requirements, the dimensions and other parameters of the assembly may vary. Customers are required to communicate these requirements prior to placing an order and to note them in the order details.
