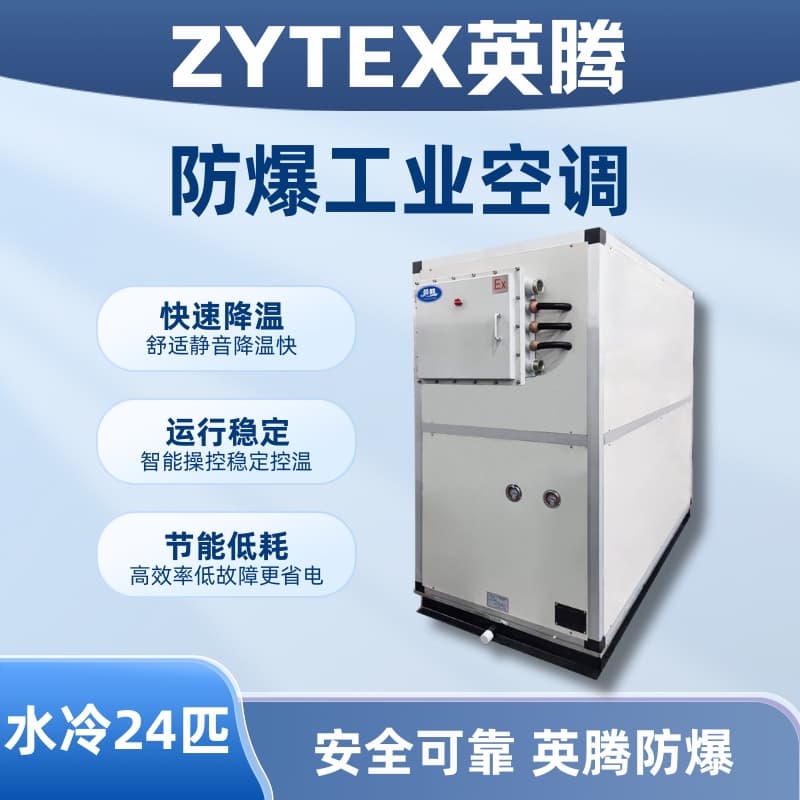

24 HP Water-Cooled Cabinet Type Explosion-Proof Industrial Air ConditionerProduct Specifications
Brand: YingTeng
Spec: 24 HP
Cooling Capacity: 66.5 kW
Energy Control: 100, 50.0%
Heating Capacity - Electric Heating: 36KW
Heating Output - Hot Water Heating: 65KW
Heating Output - Steam Heating: 90KW
Airflow: 13,500 m³/h
Static Pressure Outside of the Machine: 350 Pa
Engines Noise: 73 dB(A)
Temperature Control Range & Accuracy: Warm/Cold (Electric Heat) Type 18-30°C, Air Cooler Type 20-30°C, Sensitivity ±2°C
Power Supply: AC 380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Fully Enclosed Compressor
Nominal Input Power: 18.0 kW
Condenser Type: High-efficiency Shell and Tube
Flow Rate: 13.4 m³/h
Pipe Diameter: DN25
Throttling Method: External Balance Thermo Expansion Valve
Evaporator Type: Copper Tube with Hydrophilic Aluminum Foil Fin
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Number of exhaust fans: 2
Fan Power: 3.6KW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating power: 36KW
Hot Water Heating Capacity: 65KW, Inlet Pipe Diameter: 32mm
Steam heating capacity: 90KW, steam pipe diameter: 32mm
Dimensions (Length × Width × Height mm): 1750×855×1875 [2235]
Ex db ib mb IIB T4 Gb / Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit is the standard.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; indoor temperature DB=27°C, WB=19°C.
2. Heating Condition: Outdoor temperature DB=7°C, WB=6°C; Indoor temperature DB=20°C.
3. The corresponding refrigerant filling amounts and compressor types for the remainder are as specified in the specific data within the unit's random materials.
4. For refrigerant units, data other than cooling capacity, heating capacity, power, and charge amount can be referred to in the above table. For data that cannot be referenced, refer to the specific figures in the unit's random documentation.
Yinteng explosion-proof industrial air conditioning series products comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
Yinteng explosion-proof industrial air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors from Group II A, II B, T1 to T4, and air.
The "YingTeng" explosion-proof industrial air conditioning series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof industrial air conditioners are suitable for locations with temperature requirements. These units have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and have been issued explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
The Yingteng explosion-proof industrial air conditioner is a newly developed generation of air conditioning products by the company, meticulously crafted by integrating the best of both international and domestic design philosophies and refrigeration components. Each model has been tested by the company's recognized and authorized testing center. It boasts a beautiful appearance, superior performance, easy installation and maintenance, and a reputation for stability and reliability. The product line is comprehensive, with a wide range of models to meet various user needs. It is widely used in industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substation, food factories, garment factories, microelectronics factories, and various electrical control rooms.
Variety in form and function
Explosion-proof industrial air conditioners are divided into three main types: direct air supply, top air supply with front return air, and top air supply with rear return air. To meet the requirements of different working environments or the functional needs of specific application sites, the units are derived in various types such as heat pumps, heat pump with electric auxiliary heating, chilled water electric heating, chilled water hot water coil, 100% outside air, and single cooling models. With a wide range of types and capacities, they can satisfy the air conditioning needs of various commercial spaces and industrial special applications.
Direct Air Delivery
Direct air supply type with bidirectional louver blowing, featuring long throw distance, high air volume, compact size, attractive appearance, and simple and flexible application. It reduces the amount of decoration and installation work for users, suitable for local air conditioning in medium and small spaces.
Top-mounted exhaust fan
Top-mounted fan models utilize ducted air delivery, allowing users to flexibly choose the air delivery method and reasonably arrange the number of air outlets based on the space conditions and usage requirements. This meets the needs of centralized management and balanced temperature control in large spaces. The return air methods are further divided into front return air type, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms; and rear return air type, suitable for centralized air conditioning of return air in multiple independent spaces, requiring the installation of return air ducts and machine rooms for each space.
Advanced performance
The product utilizes a high-efficiency vortex compressor, an internationally branded external expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been carefully tested by an authorized CNAS-certified testing center, ensuring superior performance and quality. The product boasts unparalleled energy-saving and cost-reduction advantages.
Evaporator
The heat exchanger utilizes high-performance internal threaded copper tubes and hydrophilic baffle aluminum fin sheets, further enhanced by advanced mechanical expansion tube processing, achieving optimal heat exchange efficiency.
Condenser
The heat exchanger features a large-diameter corrugated aluminum fin design, processed through advanced mechanical expansion tube technology. It maximizes adaptability to various harsh dust environments while meeting heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.
Microcomputer Control
Microcomputer humanized control, LCD large liquid crystal display, featuring RS-485 communication interface, three working modes of ventilation/cooling/heating, with timer on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operational data and fault alarm full code query and prompt functions, convenient and practical; the unit is equipped with multiple protection features to ensure safe and worry-free operation.
Maintenance and repair
Convenient, streamlined, and functional frame structure design, fully considering the needs for flexible installation and maintenance, making installation and repair extremely easy. Includes a double-layer initial efficiency filter with washable features, offering a long service life.
Meet customers' special requirements
According to customer requirements, we can add systems with year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long connecting pipes, fresh air supply, shaded storage, remote control, steam heating, and hot water heating, etc.
If there are any special requirements mentioned above, the aircraft dimensions and other parameters may be subject to change. Customers must communicate these requirements prior to placing an order and include them as special notes in the order.
