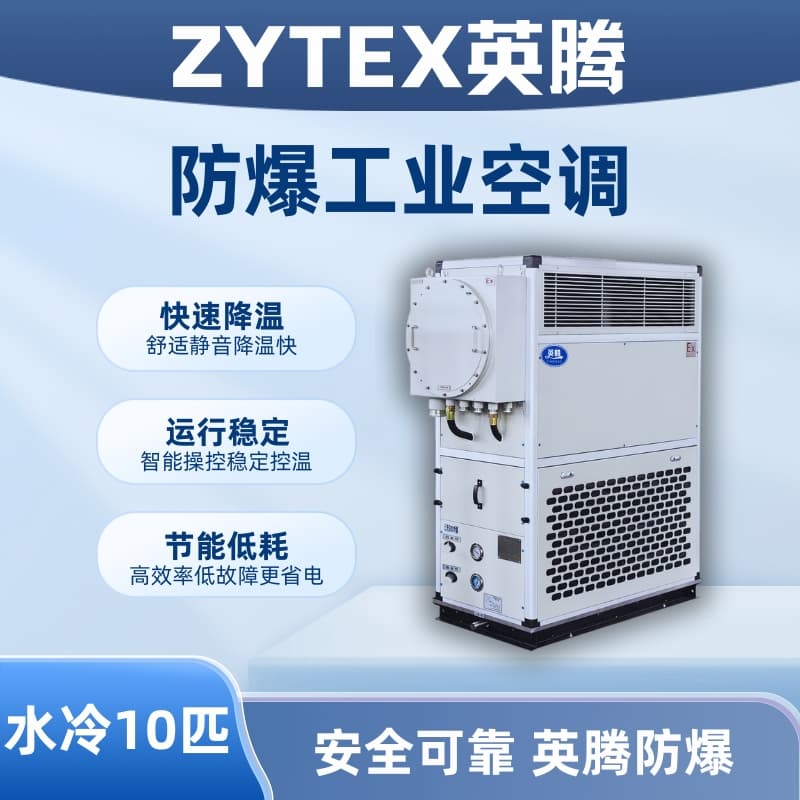

10 Horsepower Water-Cooled Cabinet Industrial Explosion-Proof Air ConditionerProduct Specifications
Brand: YingTeng
Spec: 10 horsepower
Cooling Capacity: 28.3 kW
Energy Control: 100%
Heating Capacity - Electric Heating: 18KW
Heating Output - Hot Water Heating: 25KW
Heating Capacity - Steam Heating: 40KW
Airflow: 5600 m³/h
Static Pressure Outside of the Machine: 200Pa
Engine noise: 68 dB(A)
Temperature Control Range and Accuracy: Warm/Cold (Electric Heating) Type: 18 - 30°C, Cold Air Fan Type: 20 - 30°C, Sensitivity: ±2°C
Power Supply: AC 380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Full Enclosed Compressor
Nominal Input Power: 7.5 kW
Condenser Type: High-Efficiency Shell and Tube
Flow Rate: 6.8 m³/h
Pipe Diameter: DN32
Throttle Method: External Balance Type Thermal Expansion Valve
Evaporator Type: Copper tube sleeve hydrophilic aluminum foil fins
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Quantity of exhaust fans: 2
Fan Power: 1.1 kW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating power: 18 kW
Hot Water Heating Capacity: 25KW, Inlet Pipe Diameter: 25mm
Steam heating capacity: 40KW, steam inlet and outlet pipe diameter 25mm
Dimensions (Length × Width × Height mm): 1400×750×1755 [2075]
Ex db ib mb IIB T4 Gb/Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit is the standard.
1. Refrigeration Conditions: Outdoor Temperature DB=35°C, WB=24°C; Indoor Temperature DB=27°C, WB=19°C.
2. Heating Condition: Outdoor temperature DB=7°C, WB=6°C: Indoor temperature DB=20°C.
3. The filling amount of the remaining refrigerants and the type of compressor are as specified in the specific data of the unit's random documentation.
4. For refrigerant units, data other than cooling capacity, heating capacity, power, and charge amount can be referred to in the table above. For data that cannot be referenced, please refer to the specific data in the unit's random materials.
YingTeng explosion-proof industrial air conditioning product series complies with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 "d""
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"
Yinteng explosion-proof industrial air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are hazardous areas with flammable gases, vapors, and air mixtures, classified as II A, II B, and T1 to T4 groups, posing explosion risks.
The "YingTeng" explosion-proof industrial air conditioning series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas of Zones 1 and 2. It is widely applicable in research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures pose explosion hazards. Explosion-proof industrial air conditioners are ideal for areas with temperature requirements. These units have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and are certified with explosion-proof and CCC certificates. They feature an attractive appearance, reasonable design, and are easy to install and maintain. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliability, making them highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
Yinteng Explosion-proof Industrial Air Conditioners are the latest generation of air conditioning products meticulously developed by our company, drawing on the best of international and domestic design philosophies and refrigeration components. Each model has been tested by our company's recognized and authorized testing center. They are renowned for their attractive appearance, superior performance, ease of installation and maintenance, and stable and reliable operation. The product range is comprehensive with numerous models, catering to various user needs and widely used in industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substation, food factories, garment factories, and microelectronics factories, as well as various electrical control rooms.
Variety in form and functionality
Explosion-proof industrial air conditioners are categorized into three main types: direct air supply, top air supply with front return air, and top air supply with rear return air. To meet the requirements of different working environments or functional needs of usage sites, the units are derived in various types such as heat pump, heat pump with electric auxiliary heating, cold air electric heating, cold air hot water coil, 100% fresh air, and single cooling models. With a wide range of types and capacities, they can satisfy the air conditioning needs of various commercial spaces and industrial special applications.
Direct Air Delivery
Direct-airflow models utilize bidirectional louver blowing, offering long throw distance and high air volume. They feature compact size, aesthetic appearance, and simple, flexible application, reducing the amount of renovation and installation work for users. Suitable for local air conditioning in medium and small spaces.
Top-mounted exhaust fan
The top-mounted fan type utilizes ducted air supply, allowing users to flexibly choose the air supply method and reasonably arrange the number of air outlets based on the space conditions and requirements, meeting the needs of centralized management and even temperature control in large spaces. The return air method is further divided into front return type, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms: and rear return type, suitable for centralized air conditioning of return air in multiple independent spaces, requiring the installation of return air ducts and machine rooms for each space.
Advanced performance
The product utilizes an efficient centrifugal compressor, an internationally branded external floating thermal expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been carefully tested by a CNAS-accredited and authorized testing center. The product boasts exceptional performance quality and unparalleled energy-saving advantages.
Evaporator
The heat exchanger employs high-performance internally threaded copper tubes and hydrophilic finned aluminum fins, further enhanced by the advanced mechanical expansion tube process, achieving optimal heat exchange efficiency.
Condenser
Heat exchangers are designed with large pitch corrugated fin design for enhanced turbulent flow, processed using advanced mechanical expansion technology. They are engineered to adapt to a wide range of harsh dust environments while maximizing heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.
Microcomputer control
Microcomputer with user-friendly control, LCD large liquid crystal display, featuring RS-485 communication interface, three operating modes: ventilation, cooling, and heating, with timer on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operating data, and full-code query and prompt function for fault alarms, convenient and practical, the unit is equipped with multiple protection functions to ensure safe and worry-free operation.
Maintenance and repair
Convenient, streamlined, and functional framework design, with full consideration for flexible installation and maintenance requirements, ensuring ease of installation and repair. Includes a double-layer initial efficiency filter that is washable and reusable, offering a long service life.
Meet customers' special requirements
According to customer requirements, options include year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long-connection piping, fresh air supply, cool storage, remote control, steam heating, and hot water heating systems.
In case of any special requirements, parameters such as the machine's size may be subject to change. Customers must communicate these requirements prior to placing an order and note them in the order details.
