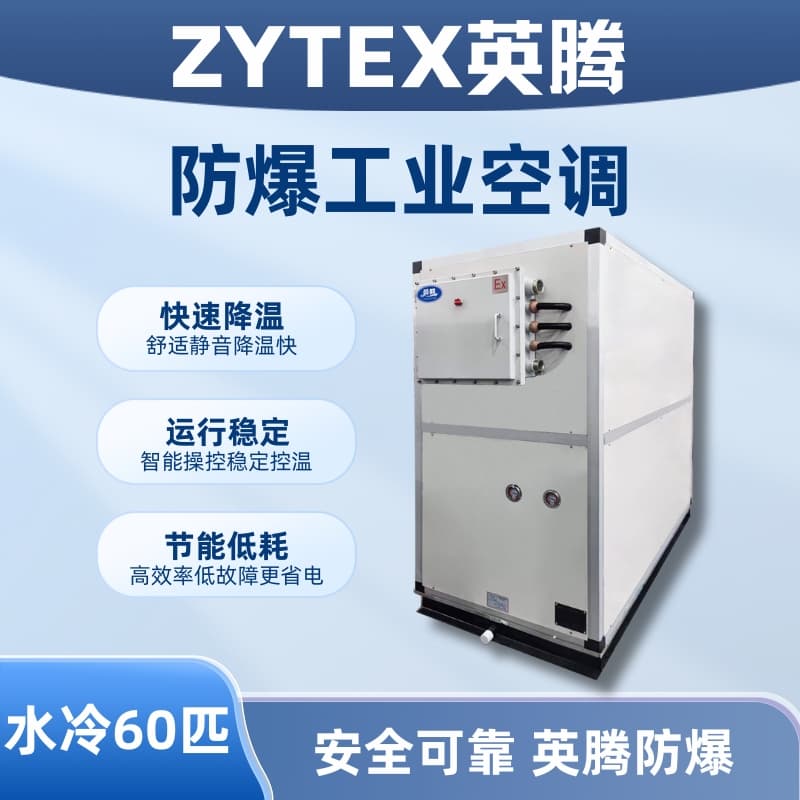

60 HP Water-Cooled Cabinet Style Explosion-Proof Industrial Air ConditionerProduct Specifications
Brand: Yingten
Spec: 60 HP
Cooling Capacity: 155.8 kW
Energy Control: No Data
Heating Output - Electric Heating: 72 kW
Heating Capacity - Hot Water Heating: 140 kW
Heating Output - Steam Heating: 200KW
Airflow: 26,000 m³/h
Static Pressure Outside the Machine: 500 Pa
Engine noise: 84 dB(A)
Temperature Control Range and Accuracy: Warm/Cold (Electric Heating) Type: 18 - 30°C, Air Cooler Type: 20 - 30°C, Sensitivity: ±2°C
Power Supply: AC 380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Full Enclosed Compressor
Nominal Input Power: 41.3 kW
Condenser Type: High-Efficiency Shell and Tube
Flow Rate: 34 m³/h
Pipe Diameter: DN125
Throttling Method: External Balance Type Thermal Expansion Valve
Evaporator Type: Copper Tube and Fin with Hydrophilic Aluminum Foil
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Number of exhaust fans: 3
Fan Motor Power: 9.0 kW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating power: 72KW
Hot water heating capacity: 140 kW, inlet pipe diameter: 40 mm
Steam heating capacity: 200KW, steam inlet and outlet pipe diameter 40mm
Dimensions (Length x Width x Height mm): 2680×1450×2250 [2250]
Ex db ib mb IIB T4 Gb / Ex db ib mb II CT4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the actual product should be used as the standard.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; indoor temperature DB=27°C, WB=19°C.
2. Heating Condition: Outdoor temperature DB=7°C, WB=6°C; indoor temperature DB=20°C.
3. The corresponding filling amount of the remaining refrigerants and the type of compressor are specified in the specific data provided in the random data of the unit.
4. For the refrigerant unit, data other than refrigeration capacity, heating capacity, power, and charging quantity can be referred to in the above table. For data that cannot be referenced, please refer to the specific figures in the unit's random materials.
The YingTeng explosion-proof industrial air conditioning series products comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres - Part 9: Equipment protected by encased 'm' type"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
YingTeng explosion-proof industrial air conditioners can operate normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7°C to 43°C, free from corrosive gases.
c) There are hazardous explosive areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof industrial air conditioning series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof industrial air conditioners are suitable for locations with temperature requirements. These units have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and CCC certificates issued. They feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
YingTeng explosion-proof industrial air conditioners are the latest generation of air conditioning products meticulously developed by our company, drawing on the best of both international and domestic design philosophies and refrigeration components. Each model has been tested by our company's recognized and authorized testing center. They are renowned for their attractive appearance, superior performance, ease of installation and maintenance, as well as their stable and reliable operation. The product range is comprehensive, with a variety of models to meet diverse user needs. They are widely used in various industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substation, food factories, garment factories, microelectronics factories, and various electrical control rooms.
Diverse in form and function
Explosion-proof industrial air conditioners are categorized into three main types: direct air supply, top air supply with front return air, and top air supply with rear return air. To meet the requirements of different working environments or functional needs of specific use sites, the units are derived into types such as heat pumps, heat pump with electric auxiliary heating, electric heating with cold air, hot water coil with cold air, fresh air supply, and single cooling units, offering a variety of types and a wide range of cooling capacities to satisfy the air conditioning needs for various commercial spaces and industrial special applications.
Direct Air Delivery
Direct air supply type features bi-directional louver blowing, offering long throw distance and high airflow volume. It boasts compact size, attractive appearance, simple and flexible application, which reduces the amount of decoration and installation work for users. It is suitable for local air conditioning in medium and small spaces.
Top blowing type
Top blowing type adopts duct air supply, users can flexibly choose the air supply method according to the space conditions and requirements, and reasonably arrange the number of air outlets to meet the needs of centralized management and balanced temperature control in large space venues. The air return methods include front air return type, suitable for direct air return in independent large spaces, eliminating the need for air return ducts and machine rooms: rear air return type is suitable for centralized air supply and return in multiple independent spaces, requiring the installation of air return ducts and machine rooms for each space.
Advanced performance
The product utilizes a high-efficiency spiral compressor, an internationally branded level external expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been thoroughly tested by an authorized CNAS-accredited testing center, ensuring superior performance and quality. It boasts unparalleled energy-saving and cost-reduction advantages.
Evaporator
The heat exchanger utilizes high-performance internally threaded copper tubes and hydrophilic finned aluminum fins, further enhanced by advanced mechanical expansion tube processing, achieving optimal heat exchange efficiency.
Condenser
The heat exchanger features large-diameter corrugated fin design with aluminum, processed through advanced mechanical expansion tube technology. It maximizes adaptability to various harsh dust environments while meeting heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.
Microcomputer Control
Microcomputer with user-friendly control, LCD large-screen display, featuring RS-485 communication interface, three operating modes: ventilation, cooling, and heating, with scheduled on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operating data and fault alarm full-code query and prompt function, convenient and practical; the unit is equipped with multiple protection functions to ensure safe and worry-free operation.
Maintenance and repair
Convenient, streamlined, and functional frame-style structure design, fully considering the needs for flexible installation and maintenance, making installation and repair extremely easy. Includes a double-layer initial efficiency filter that is removable and washable, with a long service life.
Meet customers' special requirements
Based on customer requirements, additional units can be provided with features such as year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long pipeline connections, 100% fresh air, cool storage, remote control, steam heating, and hot water heating.
Should there be any special requirements, parameters such as the aircraft dimensions may be subject to change. Customers must communicate these requirements prior to placing an order and include them as special notes on the order.
