5HP Air-Cooled Cabinet Industrial Air Conditioner Product Specifications

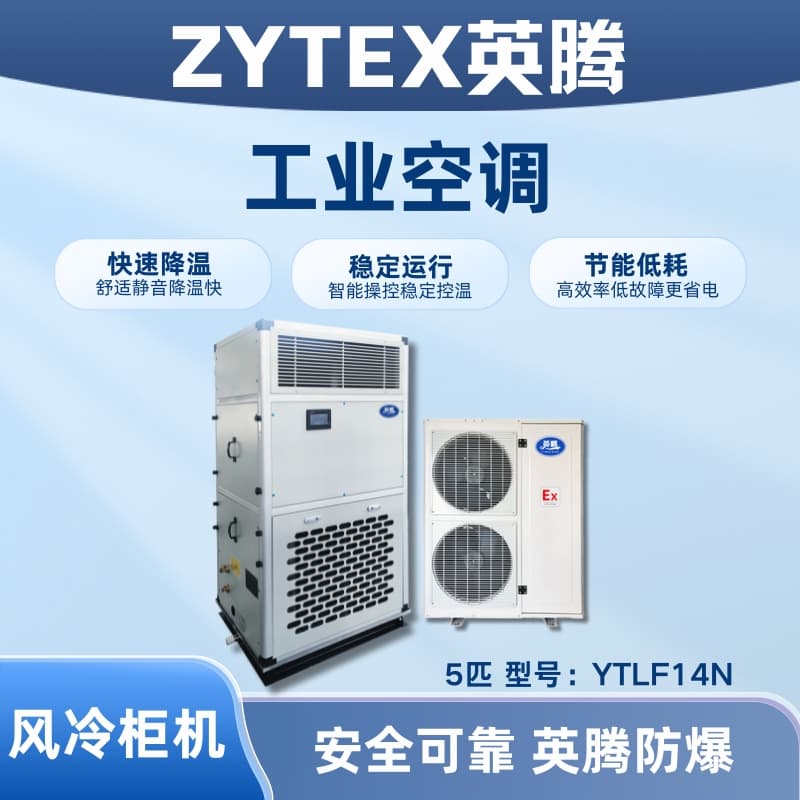

Model:YTLF14N
Brand: YingTeng
Spec: 5 HP
Cooling Capacity: 14.2 kW
Energy Control: 100%
Heating Capacity - Electric Heating: 9 kW
Heating Capacity - Hot Water Heating: 15KW
Heating Capacity - Steam Heating: 20KW
Airflow: 2800 m³/h
Static Pressure Outside the Machine: 100 Pa
Engine noise: 63 dB(A)
Temperature Control Range and Accuracy: Cold & Heat (Electric Heating) Type: 18-30°C, Cool Fan Type: 20-30°C, Sensitivity: ±2°C
Power Supply: AC380V 50Hz, 3-phase 4-wire system
Compressor Type: Scroll Enclosed Compressor
Nominal Input Power: 3.7 kW
Throttling Method: External Balance Thermostatic Expansion Valve
Evaporator Type: Copper-tube sleeve hydrophilic aluminum foil fin
Exhaust Fan Type: External Rotor Low Noise Centrifugal Fan
Fan Unit Quantity: 1
Fan Motor Power: 0.55 kW
Filter Type: Initial Efficiency Nylon Mesh (Panel Type)
Electric heating power: 9KW
Hot Water Heating Capacity: 15KW, Inlet Pipe Diameter: 25mm
Steam heating capacity: 20KW, inlet and outlet steam pipe diameter: 25mm
Dimensions (Length x Width x Height mm): 1045 x 700 x 1705 [2055]
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliance Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall be the standard.
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; Indoor temperature DB=27°C, WB=19°C.
2. Heating Condition: Outdoor Temperature DB=7°C, WB=6°C; Indoor Temperature DB=20°C.
3. The corresponding charging quantity of other refrigerants and compressor types are as specified in the specific data provided in the unit's random materials.
4. For refrigerant units, data other than cooling capacity, heating capacity, power, and charge amount can be referred to in the table above. For data that cannot be referenced, please refer to the specific figures in the unit's random materials.
Yiting Industrial Air Conditioning is the company's newly developed generation of air conditioning products, meticulously crafted by integrating the best of both international and domestic design philosophies and refrigeration components. Each model has been tested by the company's nationally recognized and authorized testing center. It boasts aesthetic appeal, superior performance, ease of installation and maintenance, and a reputation for stability and reliability. The product line is comprehensive, with a wide range of models to meet various user needs, and is widely used in various industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substation, food factories, garment factories, microelectronics factories, and various electrical control rooms.
Diverse in form and function
Industrial air conditioners are categorized into three main types: direct air supply, top air supply with front return, and top air supply with rear return. To meet the requirements of different working environments or functional needs of specific usage places, units are derived with heat pump, heat pump with electric auxiliary heating, cold water electric heating, cold water hot water coil, fresh air, and single cooling models for customer selection. With a wide variety of types and a broad range of cooling capacities, they can satisfy the air conditioning needs for various commercial spaces and industrial special applications.
Direct Air Delivery
Direct air supply type utilizes bidirectional louver blowing, offering long throw distance and high airflow volume. It features compact size, aesthetic appearance, simple and flexible application, reducing users' decoration and installation workload. Suitable for partial air conditioning in small and medium-sized spaces.
Top-mounted fan type
Top-mounted fan models utilize ducted air supply, allowing users to flexibly choose the air supply method and reasonably arrange the number of air outlets based on the space conditions and requirements, meeting the needs of centralized management and even temperature control in large spaces. The return air methods are further divided into front return air models, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms; and rear return air models, suitable for centralized air conditioning of supply and return air in multiple independent spaces, requiring the installation of return air ducts and machine rooms for each space.
Advanced performance
The product utilizes a high-efficiency spiral compressor, an internationally branded horizontal thermal expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been thoroughly tested by a CNAS-accredited testing center. The products boast superior performance and quality, and offer unparalleled energy-saving and cost-reduction advantages.
Evaporator
The heat exchanger utilizes high-performance internal threaded copper tubes and hydrophilic finned aluminum baffles, further enhanced by advanced mechanical expansion tube processing, achieving optimal heat exchange efficiency.
Condenser
The heat exchanger employs a large-diameter corrugated fin design with aluminum, processed through advanced mechanical expansion tube technology. It maximizes adaptability to various harsh dust environments while meeting heat exchange performance and efficiency, reducing maintenance and cleaning, and extending service life.
Microcomputer control
Microcomputer humanized control, LCD large liquid crystal display, featuring RS-485 communication interface, with three working modes: ventilation, cooling, and heating. It has timer on/off functions, power failure memory function, real-time clock display, and more. Optimized control logic, meticulously designed operational data, and fault alarm full-code query and prompt features are convenient and practical. The unit is equipped with multiple protection functions to ensure safe and worry-free operation.
Maintenance and repair
Streamlined, functional frame-style structure design for ease of installation and maintenance; comes with a double-layer initial efficiency filter, easy to remove and wash, and has a long service life.
Meet customers' special requirements
Based on customer requirements, options include year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long pipeline connections, fresh air supply, shaded storage, remote control, steam heating, and hot water heating units.
If there are any special requirements, parameters such as the aircraft dimensions may change. Customers must communicate these before placing an order and note the special requirements on the order.
