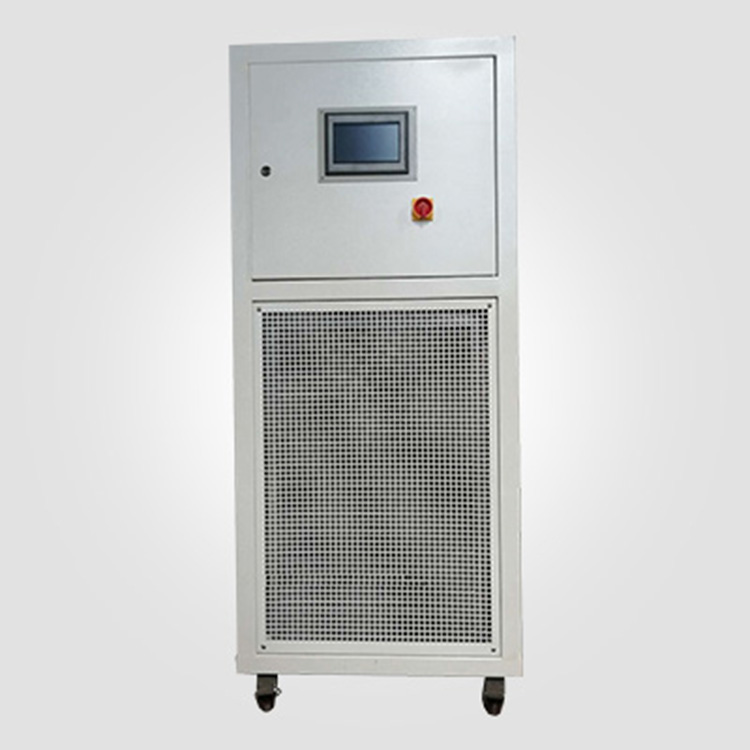

Water-Cooled Chiller Series CH, 5-35℃

Compressor High/Low Pressure Protection, Internal Overheat Protection

Low-water-level alarm device, low-water-temperature anti-freezing alert

Using imported compressors from Europe, America, and Japan

The refrigeration system welding joints are made using oxygen-free welding, minimizing oxidation and ensuring a smooth surface.

Throttle components are sourced from Danfoss of Denmark and Aco of the USA.

The water tank is made of SUS304 stainless steel to prevent corrosion and leakage.

Stainless steel plate-type, coiled, shell-and-tube, and finned high-efficiency heat exchangers

RS485 communication function, for automated management

Electrical appliances utilize OMRON, FUJI, TE, LG, MOELLER, and SCHNEIDER.

Control Method: Imported microcomputer or PLC control

Comprehensive safety protection, fault display, no need for professional maintenance or repair.

High-efficiency evaporators and condensers, saving over 30% of energy

AC-08 and above models feature two compressor heads, which can be used individually or together.

Parameters Model CH-03W CH-04W CH-05 CH-06 CH-08

Cooling Capacity 50/60 Hz/kW: 9.5/11.2, 12.43/14.54, 15.91/18.62, 19.18/22.45, 24.85/29.08

Input Power kW 2.8, 3.55, 4.5, 5.4, 6.8

Operating Current A 6.7, 8.4, 10.4, 12.6, 16.5

Power Supply 3N~380V 50Hz

Refrigerant R-22

Compressor Emerson Copeland

Weight: 120kg, 140kg, 150kg, 200kg, 210kg

Water Chiller Series CH, 5-35℃
