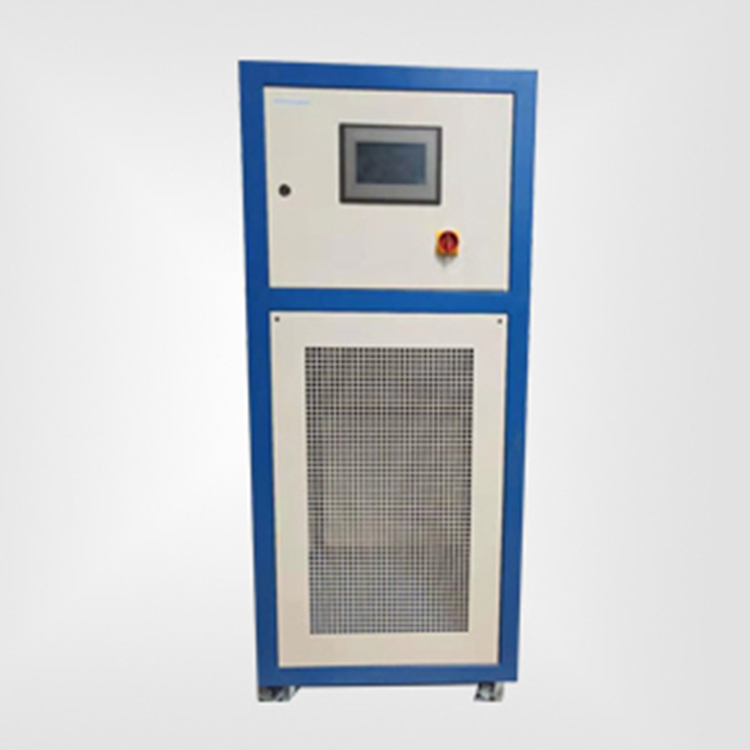

Ultra-Low Temperature Chilled Water Unit CH-04W 5-35℃

Provide a virtual environment temperature for industrial production.

Compressor Low and High Pressure Protection, Internal Overheat Protection

Low-water level alarm, low water temperature anti-freezing alert

Using imported compressors from Europe, America, and Japan

The refrigeration system welding joints are made using oxygen-free welding, reducing oxides, and ensuring a smooth surface.

Throttle components are made with Danish Danfoss and U.S. Aco.

The tank is made of SUS304 stainless steel, preventing corrosion and leakage.

Stainless steel plate-type, coil-type, shell-and-tube-type, and finned-type high-efficiency heat exchangers

RS485 communication function, for automated management

Electrical appliances use OMRON, FUJI, TE, LG, MOELLER, and SCHNEIDER.

Control Method: Imported microcomputer or PLC control

Safety protection is comprehensive, with fault display; no professional maintenance personnel required for repairs and upkeep.

High-efficiency evaporators and condensers, saving over 30% of energy

AC-08 and above models utilize two compressor heads, which can be used individually or together.

Parameters Model CH-03W CH-04W CH-05 CH-06 CH-O8

Cooling Capacity 50/60 Hz/kW: 9.5/11.2, 12.43/14.54, 15.91/18.62, 19.18/22.45, 24.85/29.08

Input Power kw: 2.8, 3.55, 4.5, 5.4, 6.8

Operating Current A 6.7, 8.4, 10.4, 12.6, 16.5

Power 3N~380V 50Hz

Refrigerant R-22

Compressor - Emerson Copeland

Weight: 120kg, 140kg, 150kg, 200kg, 210kg

Ultra-Low Temperature Chiller CH-04W 5-35℃
