ATC-1055 High and Low Temperature UnitWe offer circulating units capable of providing both cold and heat sources, with a wide range of applications in industries such as pharmaceuticals, chemicals, and biology. These units supply heat and cold to reactors, tanks, and can also be used for heating and cooling other equipment.
Model
ATC-
1035WATC-
1055WATC-
1075WATC-
10N10WATC-
10N5WATC-
10N25WATC-
10N38WATC-
10N60WATC-
10N80WMedium Temperature Range
-100℃～+220℃ (at 3 bar pressure)
Control System
CPU collects PID and runs independently ,Fuzzy Self-Constructing Tree AlgorithmPLC Controller
Temperature Control Mode Selection
Material temperature control and equipment export temperature control mode are freely selectable.
Temperature Difference Control
The temperature difference between the equipment's export temperature and the reaction material temperature can be controlled and set.
Programmer Editing
Programmable for 10 routines, each routine is programmable99Step section
Communication Protocol
RS-485 Interface
External temperature feedback
PT100
Temperature feedback
Thermal Conductive Medium Equipment - Inlet Temperature, Outlet Temperature, Reactor Material Temperature - Three Temperature Points
Thermal Conductive Medium Temperature Control Accuracy
±0.5℃
±1℃
Reaction material temperature control accuracy
±1℃
Heating Power: kW
3.5
5.5
7.5
10
15
25
38
60
80
Cooling capacity
kW AT135℃
3.5
5.5
7.5
10
15
25
38
60
80
0℃
3.5
5.5
7.5
10
15
25
38
60
80
-60℃
2.8
5
6.2
8
9
15
23
38
52
-80℃
1.8
2.8
3.4
4
5
8
13
22
30
-90℃
0.6
1.1
1.6
2
3
4.8
7.5
12
16
-100℃
0.45
0.7
0.9
1.2
1.8
2.9
4.5
7.2
9.5
Flow pressure max
L/min bar35
50
50
110
110
150
200
400
400
1
1
1
2.5
2.5
2.5
2.5
2.5
2.5
Compressor
Duline, Italy
Oil Separator
Emerson
Expanding Valve
Danfoss/Emerson Thermal Expansion Valves
Evaporator
Gao Li Plate Heat Exchanger
Operation Panel
7-inch color touch screen, temperature curve display and record
Safety Protection
Features include self-diagnostic capabilities; overload protection; high and low pressure switches, overload relays, thermal protection, and various other safety features.
Sealed Recirculation System
The entire system is fully enclosed, free of oil mist at high temperatures, and does not absorb moisture from the air at low temperatures. The system operates smoothly.Maintain constant pressureAuto-completion.
Refrigerant
R-404A/R-14 Mixed Refrigerant
Interface Size
DN20
DN20
DN25
DN25
DN32
DN32
DN40
DN50
DN50
Dimensionsmm
705*1005
*1755805*1205
*18551005*1505
*18551005*1505
*18552055*1455
*20552055*1455
*20552455*1455
*22553005*1605
*22554005*1605
*2255Weight: kg
455
585
725
910
1270
1620
2120
2970
3370
Power Supply: 380V 50Hz
12.5kW
18.5kW
24.5kW
30.5kW
40.5kW
60.5kW
85.5kW
135.5kW
200.5kW

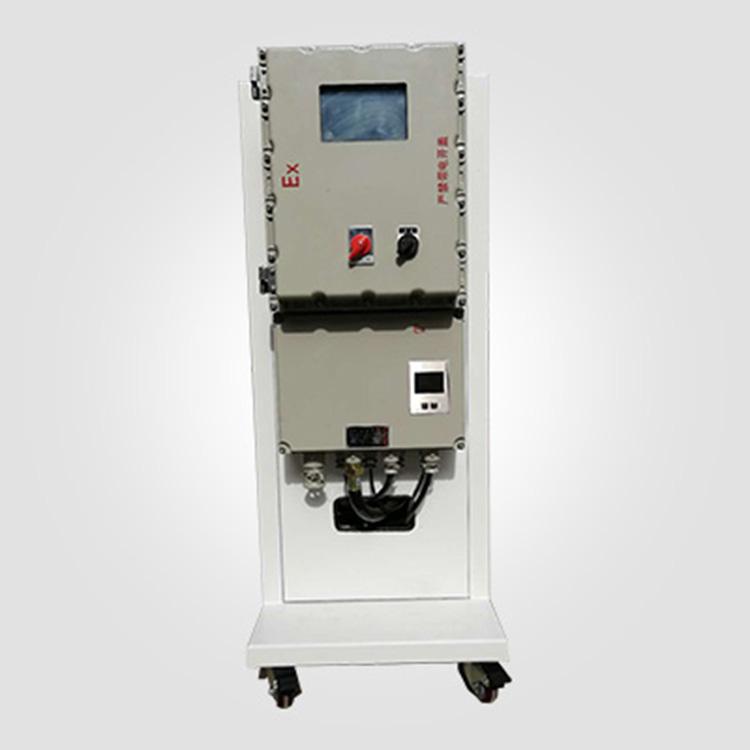

High/Low Temperature Integrated Machine ATC-1055W
