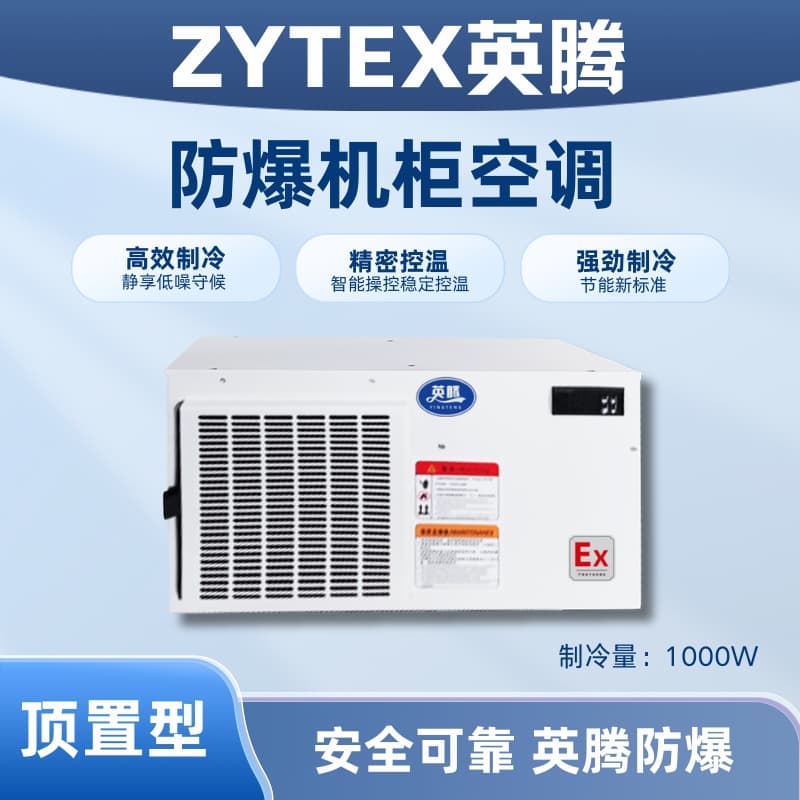

Yiting Top Mount Series Explosion-proof Cabinet Air Conditioner

Product Specifications

Model: BKG-50-Ex1000Z

Brand: Yingten

Cooling capacity: 1000W

Interior temperature range: 25℃~38℃

Exterior Temperature Range: -5℃ to 45℃

System Pressure Resistance: 26bar

Power: 220V/50Hz

Operating Current: 3.3A

Input Power: 685W

Cabinet air circulation volume: 380 m³/h

Cabinet External Airflow: 780 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP34

Noise: 65 dB(A)

Weight: 45 kg

Dimensions (Width x Height x Depth): 600*430*390mm

Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be taken as the standard.

Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.

2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for detailed inquiries.

Inten explosion-proof cabinet air conditioner has explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

The Yingteng explosion-proof cabinet air conditioner series products comply with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2 - 2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳“d”"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres - Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:

a) Altitude not exceeding 2,000 meters;

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors from Group II A, II B, and T1 to T4, with air.

The "Yingteng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for use in Class 1 and Class 2 flammable and explosive environments. It is widely employed in scientific research, oil, chemical, pharmaceutical, power plant, and other locations where II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. These explosion-proof cabinet air conditioners are ideal for environments with temperature requirements. The Yingteng explosion-proof cabinet air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certificates and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable construction, and easy installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).

Inten Explosion-proof Cabinet Air Conditioner Product Features

Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements inside the electrical control cabinet.

Utilizing a high-efficiency screw-type compressor, it boasts high reliability, low energy consumption, and stable quality.

There is no air heat exchange between the interior and exterior air in the cabinet, ensuring the air inside the electrical cabinet remains clean.

Choose high airflow, high static pressure centrifugal fans, which offer large recirculating air volume and excellent heat exchange performance.

Proper air intake and exhaust design to prevent short-circuiting of air circulation inside the cabinet.

The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.

Compact, lightweight, and extremely easy to install, use, and maintain.

InTeng Explosion-proof Cabinet Air Conditioner Application Range

Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, construction materials, and automobiles, the large-scale data processing centers and CNC machining centers in China are also widely utilizing them. The exceptional performance and superior quality of the electrical cabinet air conditioners are gradually gaining recognition and adoption from an increasing number of high-end customers both domestically and internationally.

Selection Example

The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W

Select the air conditioner model BKG-50-Ex600C.
