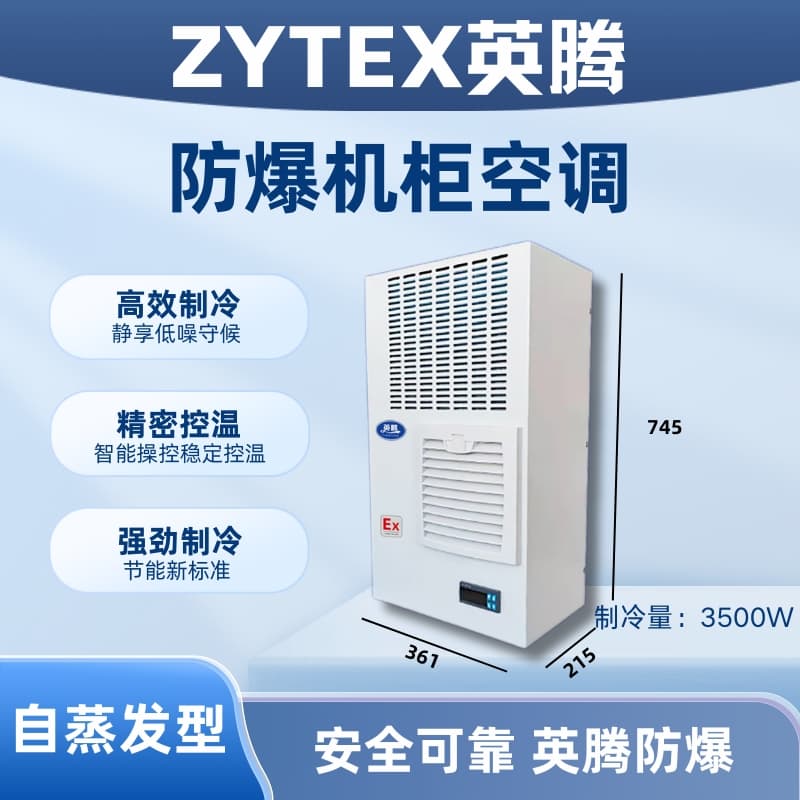

YingTeng Self-evaporative Explosion-proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex3500Z
Brand: YingTeng
Cooling Capacity: 3500W
Internal cabinet temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 9.6A
Input Power: 2100W
Cabinet air circulation volume: 650 m³/h
Outdoor cabinet air volume: 1160 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 70 kg
Dimensions (Width x Height x Depth): 435*1115*280mm
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the physical product shall prevail.
Test conditions are: dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacities or customized products, please call our company for detailed inquiries.
Inten Explosion Proof Cabinet Air Conditioners are marked with Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb explosion-proof symbol.
The Yingteng explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 "d""
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety "i""
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by “m” type of enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Applicable environmental conditions: temperature -7°C to 43°C, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for 1st and 2nd zone flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, power plants, and other locations where II A, IIB group flammable gases, steam, and air mixtures may form explosive hazards. These explosion-proof cabinet air conditioners are ideal for areas with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, receiving both explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, ease of installation and maintenance. The entire series uses branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliability, making them highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion-proof Cabinet Air Conditioner Product Features
Equipped with temperature regulation and dehumidification functions, ensuring to meet the ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency scroll-type compressor rotors, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high airflow and high static pressure centrifugal fans, with large recirculating air volume and excellent heat exchange performance.
Reasonable intake and exhaust air structure to avoid short-circuiting of air circulation inside the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operation.
Compact, lightweight, and extremely easy to install, use, and maintain.
Inten explosion-proof cabinet air conditioner application range
Extensively applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, large-scale data processing centers and CNC machining centers in China are also widely adopted. The exceptional efficiency and excellent performance of our electrical cabinet air conditioners are gaining recognition and usage among an increasing number of high-end domestic and international clients.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), and the environmental temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Choose the air conditioner model BKG-50-Ex600C.
