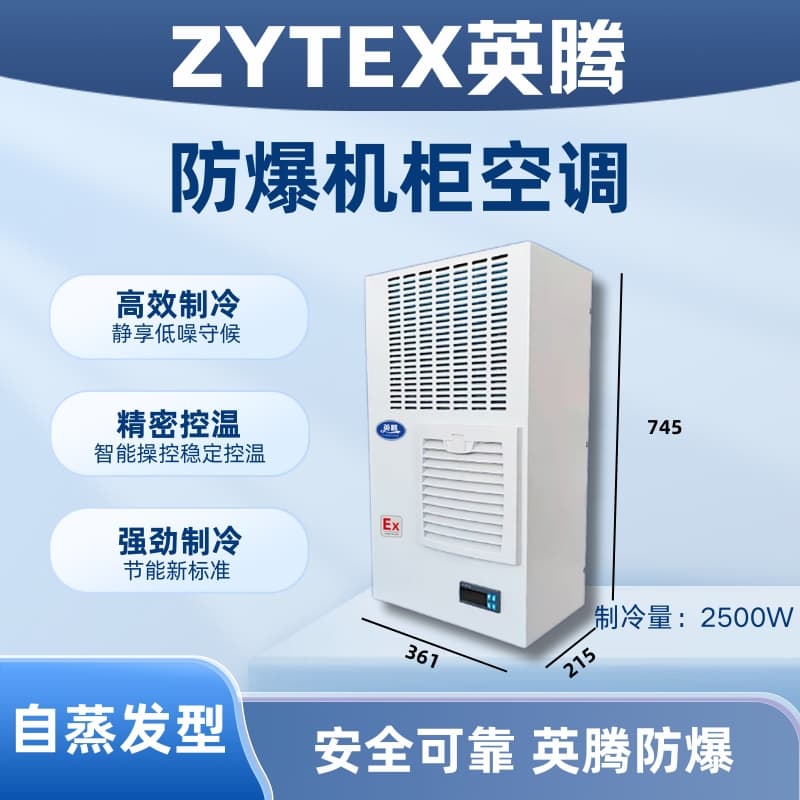

YingTeng Self-evaporative Explosion-proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex2500Z
Brand: YingTeng
Cooling Capacity: 2500W
Interior temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Rating: 26 bar
Power: 220V/50Hz
Operating Current: 7.2A
Input Power: 1560W
Cabinet air circulation volume: 320 m³/h
Cabinet external air volume: 810 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 54 kg
Dimensions (width x height x depth): 390*1009*245mm
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall prevail.
The test conditions are as follows: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for details.
Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Aiting explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres - Part 1: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yinteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Applicable environmental conditions: Temperature -7°C to 43°C, free from corrosive gases.
c) There are hazardous explosive areas formed by mixtures of flammable gases, vapors, and air in groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for widespread use in flammable and explosive areas such as Zones 1 and 2. It is ideal for research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1 to T4 groups of combustible gases and steam-air mixtures may pose an explosion hazard. These explosion-proof cabinet air conditioners are designed for temperature-sensitive locations. The YingTeng explosion-proof cabinet air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and received explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable engineering, and ease of installation and maintenance. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion-Proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification features, ensuring ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency vortex rotor compressors, offering high reliability, low energy consumption, and stable quality.
The air inside the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Select high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper intake and exhaust air structures prevent short-circuiting in the cabinet air circulation.
The full-touch screen controller can feature alarm functions, dehumidification capabilities, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
InTeng Explosion-proof Cabinet Air Conditioner Application Range
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automobiles, the large-scale data processing centers and CNC machining centers within the country are also widely utilizing them. The outstanding effectiveness and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end domestic and international customers.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the internal cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
