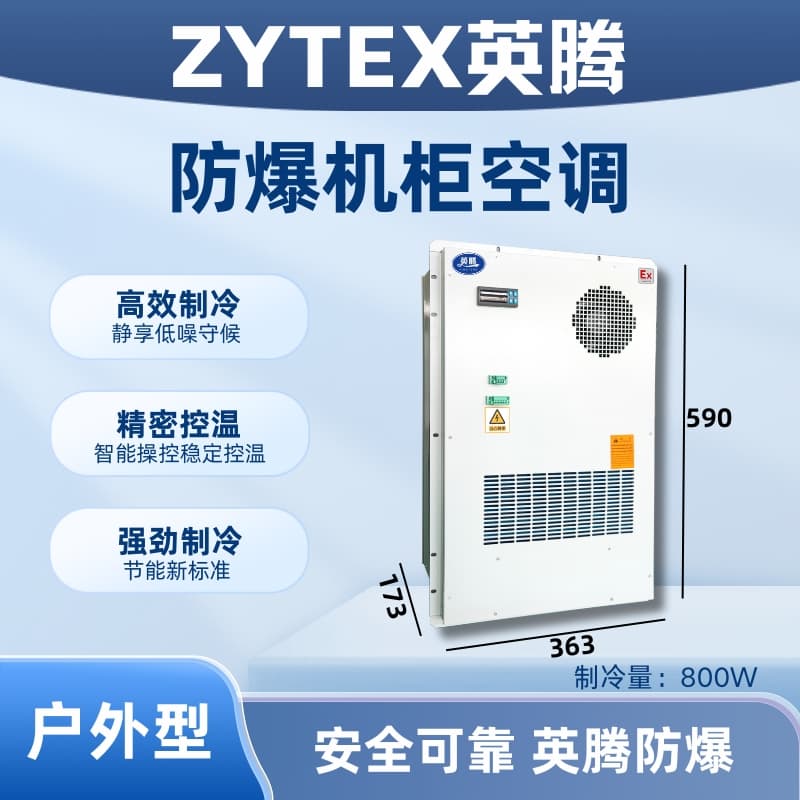

YingTeng Outdoor Explosion-proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex800H
Brand: Yingten
Cooling Capacity: 800W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -40℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 1.86A
Input Power: 410W
Cabinet air circulation volume: 230 m³/h
Exterior Cabinet Airflow: 450 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP55
Noise: 58 dB(A)
Weight: 25 kg
Dimensions (Width x Height x Depth): 455*692*155mm
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the actual product should be used as the standard.
Test conditions are as follows: Dry bulb temperature inside the electrical cabinet is 35°C, wet bulb temperature is 26°C, and dry bulb temperature outside the electrical cabinet is 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
InTeng explosion-proof cabinet air conditioner, explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Airteng explosion-proof cabinet air conditioner series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment - General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in Group II A, II B, and T1 to T4 categories.
The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for widespread use in flammable and explosive areas in Zones 1 and 2. It is ideal for research, oil, chemical, pharmaceutical, power plant, and other facilities where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures pose explosion hazards. These explosion-proof cabinet air conditioners are suitable for environments with specific temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten explosion-proof cabinet air conditioner product features
Equipped with temperature control and dehumidification functions to ensure ideal temperature and humidity requirements inside the electrical control cabinet.
Utilizing a high-efficiency scroll-type rotor compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust design, avoiding short-circuiting of air circulation inside the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operation status.
Compact, lightweight, and extremely easy to install, use, and maintain.
InTeng Explosion-proof Cabinet Air Conditioner Application Range
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale domestic data processing centers and CNC machining centers have also been extensively adopted. The exceptional efficiency and superior performance of our electrical cabinet air conditioners are gradually gaining recognition and usage among an increasing number of high-end customers both domestically and internationally.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
