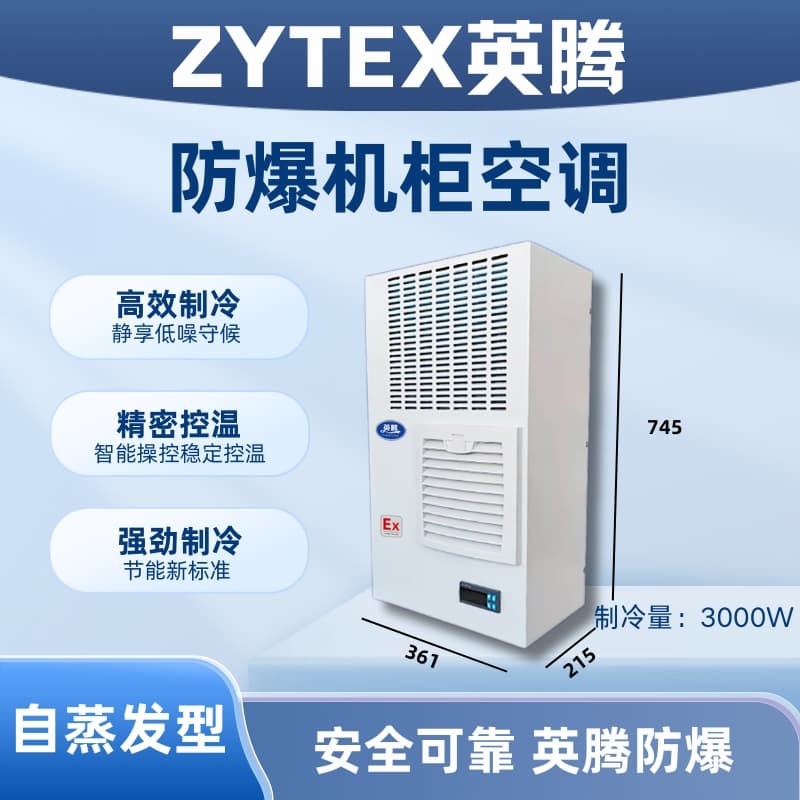

Yiting Self-evaporative Explosion-proof Cabinet Air Conditioner

Product Specifications

Model: BKG-50-Ex3000Z

Brand: YingTeng

Cooling Capacity: 3000W

Internal cabinet temperature range: 25℃~38℃

External cabinet temperature range: -5℃ to 45℃

System Pressure Resistance: 26bar

Power Supply: 220V/50Hz

Operating Current: 9.2A

Input Power: 2050W

Cabinet air circulation volume: 610 m³/h

Outdoor air circulation volume: 1150 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP34

Noise: 70 dB(A)

Weight: 54 kg

Dimensions (Width x Height x Depth): 435*1115*280mm

Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the physical unit shall prevail.

Test conditions: Dry bulb humidity inside the electrical cabinet is 35°C, wet bulb temperature is 26°C, and dry bulb temperature outside the electrical cabinet is 35°C.

2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.

Inten explosion-proof cabinet air conditioner features explosion-proof markings: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

The Aiting explosion-proof cabinet air conditioner product series complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres – Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by a "m" type of enclosure"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are explosion hazard areas formed by mixtures of flammable gases, vapors from Groups T1 to T4, and air, with II A, II B classifications.

The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may pose explosion hazards. Explosion-proof cabinet air conditioners are ideal for locations with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).

Inten explosion-proof cabinet air conditioner product features

Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.

Utilizing high-efficiency vortex rotor compressors, offering high reliability, low energy consumption, and stable quality.

No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.

Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.

Proper intake and exhaust air design to prevent short-circuiting of air circulation within the cabinet.

The all-touch screen controller can be equipped with alarm features, dehumidification function, and real-time monitoring of the air conditioner's operation status.

Compact, lightweight, and extremely easy to install, use, and maintain.

Inten Explosion-proof Cabinet Air Conditioner Application Range

Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemical, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers within our country are also widely used. The outstanding effectiveness and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end domestic and international clients.

Selection Examples

The control cabinet surface area is 8㎡ (A=8㎡), with an environmental temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the following calculation method for selecting the electrical cabinet air conditioner is:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W

Select the air conditioner model BKG-50-Ex600C
