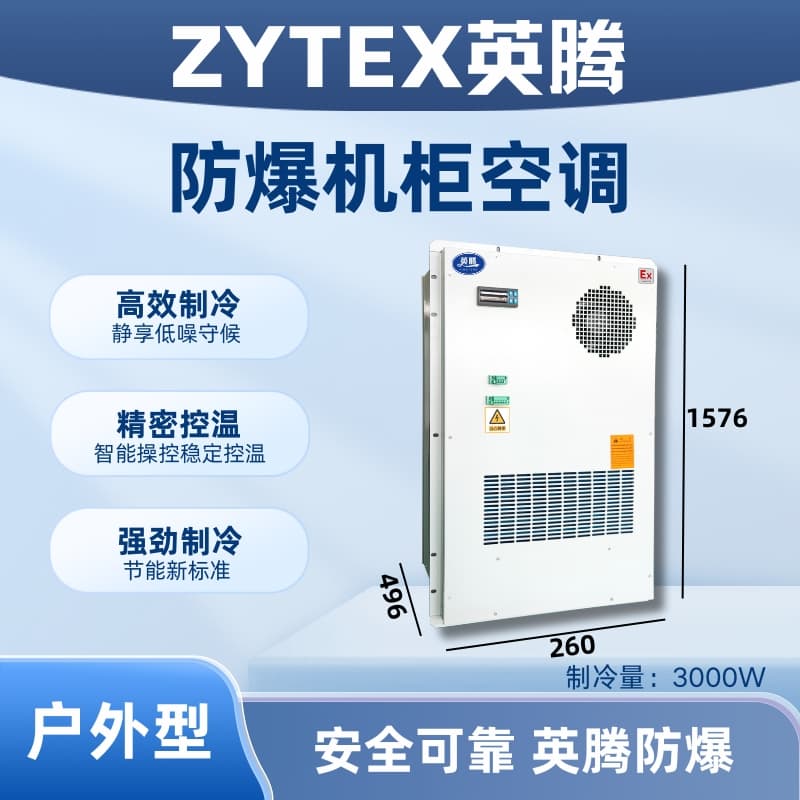

Inten Outdoor Explosion-proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex3000H
Brand: YingTeng
Cooling Capacity: 3000W
Interior temperature range: 25℃~38℃
Exterior Temperature Range: -40℃ to 55℃
System Pressure Rating: 26 bar
Power Supply: 220V/50Hz
Operating Current: 5.63A
Input Power: 1240W
Cabinet air circulation volume: 780 m³/h
Exterior cabinet air volume: 1380 m³/h
Ingress Protection Rating: IP54
External Protection Rating: IP55
Noise: 70 dB(A)
Weight: 58 kg
Dimensions (width x height x depth): 550*1208*220mm
Explosion-proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliance Co., Ltd.
Note: The above technical parameters are for reference only; the actual machine is the standard.
Test conditions: Dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C inside the electrical cabinet, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for detailed inquiries.
InTeng explosion-proof cabinet air conditioner, explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Aiting explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9-2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2000m.
b) Applicable environment: Temperature -7°C to 43°C, free from corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in II A, II B, T1 to T4 groups.
The "Yingteng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, suitable for widespread use in Class 1 and 2 flammable and explosive environments. It is ideal for research, oil, chemical, pharmaceutical, power plant, and other facilities where II A, IIB Group T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof cabinet air conditioners are suitable for environments with temperature requirements. The Yingteng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable construction, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
InTeng Explosion-Proof Cabinet Air Conditioner Product Features
Equipped with temperature regulation and dehumidification functions, ensuring to meet the ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency vortex rotor compressor, it boasts high reliability, low energy consumption, and stable quality.
The air inside the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air in the electrical cabinet.
Choose high airflow, high static pressure centrifugal fans, with large recirculation air volume and excellent heat exchange effect.
Proper intake and exhaust air design, avoiding short-circuiting in the cabinet's air circulation.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
InTeng Explosion-proof Cabinet Air Conditioner Application Range
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely utilized. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Choose the air conditioner model BKG-50-Ex600C.
