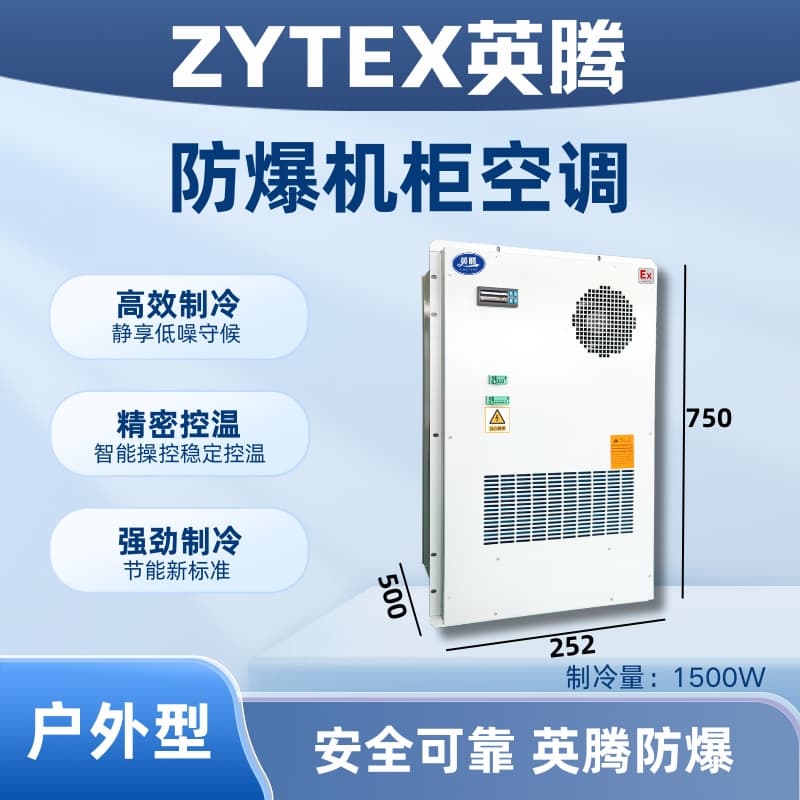

Yiting Outdoor Explosion-proof Cabinet Air Conditioner

Product Specifications

Model: BKG-50-Ex1500H

Brand: YingTeng

Cooling Capacity: 1500W

Interior temperature range: 25℃~38℃

Exterior Temperature Range: -40℃ to 55℃

System Pressure Rating: 26 bar

Power: 220V/50Hz

Operating Current: 2.75A

Input Power: 605W

Cabinet air circulation volume: 400 m³/h

Cabinet external air volume: 620 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP55

Noise: 63 dB(A)

Weight: 38 kg

Dimensions (Width x Height x Depth): 482*781*188mm

Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be used as the standard.

Test conditions are: dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C, and dry bulb temperature of 35°C outside the electrical cabinet.

2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for more details.

Inten explosion-proof cabinet air conditioner has explosion-proof markings: Ex db ib mb IIB T4 Gb / Ex db eb ib mb ll C T4 Gb

The Yinteng explosion-proof cabinet air conditioner series products comply with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"

The Yinteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in II A, II B categories, and T1 to T4 groups.

The "Yingteng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, power plants, and other locations where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof cabinet air conditioners are ideal for environments with temperature requirements. The Yingteng explosion-proof cabinet air conditioners have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, receiving both explosion-proof and CCC certification. They feature an aesthetically pleasing design, reasonable construction, and are easy to install and maintain. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).

Inten Explosion-proof Cabinet Air Conditioner Product Features

Equipped with temperature regulation and dehumidification features, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.

Utilizing high-efficiency vortex rotor compressors, offering high reliability, low energy consumption, and stable quality.

The interior air of the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.

Select high airflow, high static pressure centrifugal fans for better air recirculation and heat exchange efficiency.

Reasonable intake and exhaust air structure, preventing short-circuiting in the cabinet's air circulation.

The full touch screen controller can feature alarm functionality, dehumidification capabilities, and real-time monitoring of the air conditioner's operation.

Compact, lightweight, and extremely easy to install, use, and maintain.

InTeng Explosion-proof Cabinet Air Conditioners - Application Range

Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large domestic data processing centers and CNC machining centers have also been extensively utilized. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.

Selection Examples

The control cabinet surface area is 8㎡ (A=8㎡), and the environmental temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W

Select the air conditioner model BKG-50-Ex600C.
