Inten High-Temperature Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex2000G
Brand: YingTeng
Cooling Capacity: 2000W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Rating: 26bar
Power: 220V/50Hz
Operating Current: 4.15A
Input Power: 923W
Cabinet air circulation volume: 320 m³/h
Outdoor circulation air volume: 1050 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 49 kg

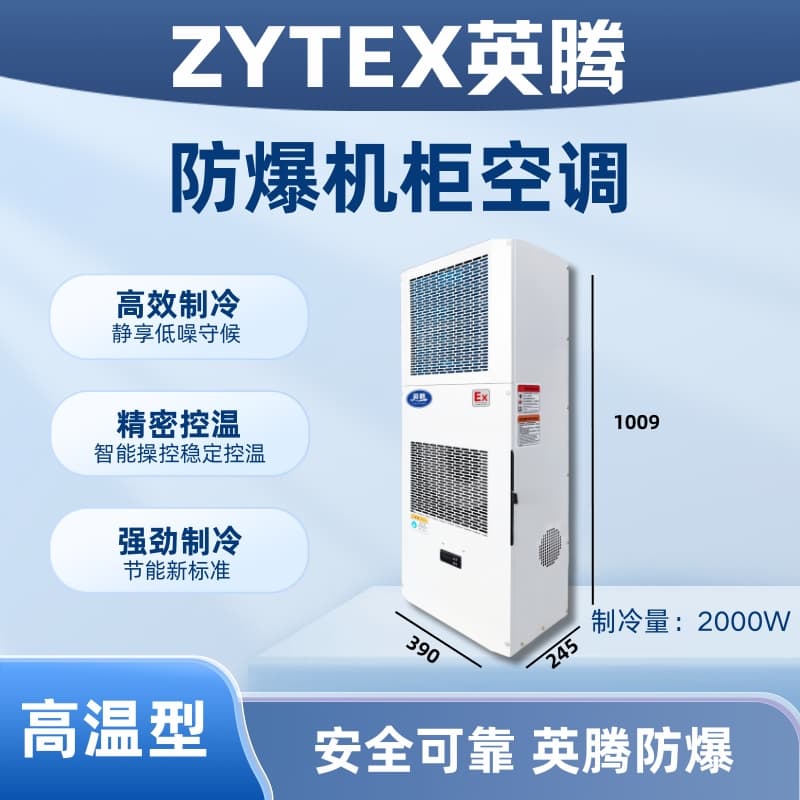

Dimensions (Width x Height x Depth): 390*1009*245mm
Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, please refer to the actual product.
The test conditions are as follows: dry bulb temperature of 35°C inside the electrical cabinet, wet bulb temperature of 26°C inside the electrical cabinet, and dry bulb temperature of 35°C outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
YingTeng explosion-proof cabinet air conditioner has the explosion-proof mark of Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb.
The Yinteng explosion-proof cabinet air conditioner series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioning series has been processed with special explosion-proof technology, making it suitable for use in Class 1 and Class 2 flammable and explosive environments. It is widely employed in scientific research, oil, chemical, pharmaceutical, and power plant settings where there is or may be II A, II B, T1-T4 groups of combustible gases, steam, and air mixtures that pose explosion hazards. These explosion-proof cabinet air conditioners are ideal for locations with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certificates and explosion-proof CCC certificates. They feature an aesthetically pleasing design, reasonable construction, and are easy to install and maintain. The entire series is equipped with brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliability. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion-proof Cabinet Air Conditioner Product Features
Equipped with temperature regulation and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency vortex rotor compressors, offering high reliability, low energy consumption, and stable quality.
There is no air heat exchange between the cabinet air and the ambient air, ensuring the cleanliness of the air inside the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust structure to prevent short-circuiting of air circulation within the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Small in size, lightweight, and extremely easy to install, use, and maintain.
InTeng Explosion-proof Cabinet Air Conditioners - Application Scope
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, construction materials, and automobiles, some large-scale domestic data processing centers and CNC machining centers are also widely using them. The outstanding effectiveness and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end customers both domestically and internationally.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
