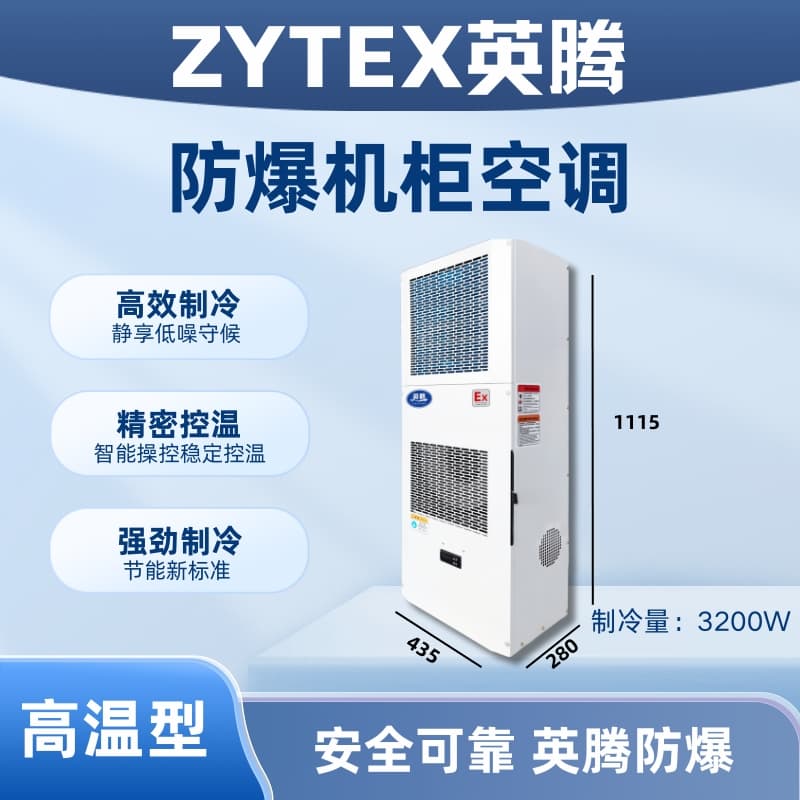

Yinteng High-Temperature Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex3200G
Brand: YingTeng
Cooling Capacity: 3200W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Rating: 26 bar
Power Supply: 220V/50Hz
Operating Current: 6.2A
Input Power: 1240W
Cabinet air circulation volume: 980 m³/h
Outdoor circulation air volume: 1300 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 68 kg
Dimensions (Width x Height x Depth): 435*1115*280mm
Explosion-Proof Marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit shall prevail.
The test conditions are 35℃ dry bulb humidity inside the electrical cabinet, 26℃ wet bulb temperature, and 35℃ dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Yinteng explosion-proof cabinet air conditioner series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.
c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, power plants, and other locations where there may be or could be II A, IIB Group T1 to T4 combustible gases, steam-air mixtures, or explosion hazards. The explosion-proof cabinet air conditioners are suitable for environments with specific temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certificate. They feature an aesthetically pleasing design, reasonable construction, and ease of installation and maintenance. The entire series utilizes branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten explosion-proof cabinet air conditioner product features
Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
No air heat exchange between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and exhaust structure to avoid short-circuiting of air circulation within the cabinet.
The all-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operational status of the air conditioner in real time.
Compact, lightweight, and extremely easy to install, use, and maintain.
Inventex Explosion Proof Cabinet Air Conditioners - Application Range
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers within the country are also widely employed. The outstanding efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Choose the air conditioner model BKG-50-Ex600C.
