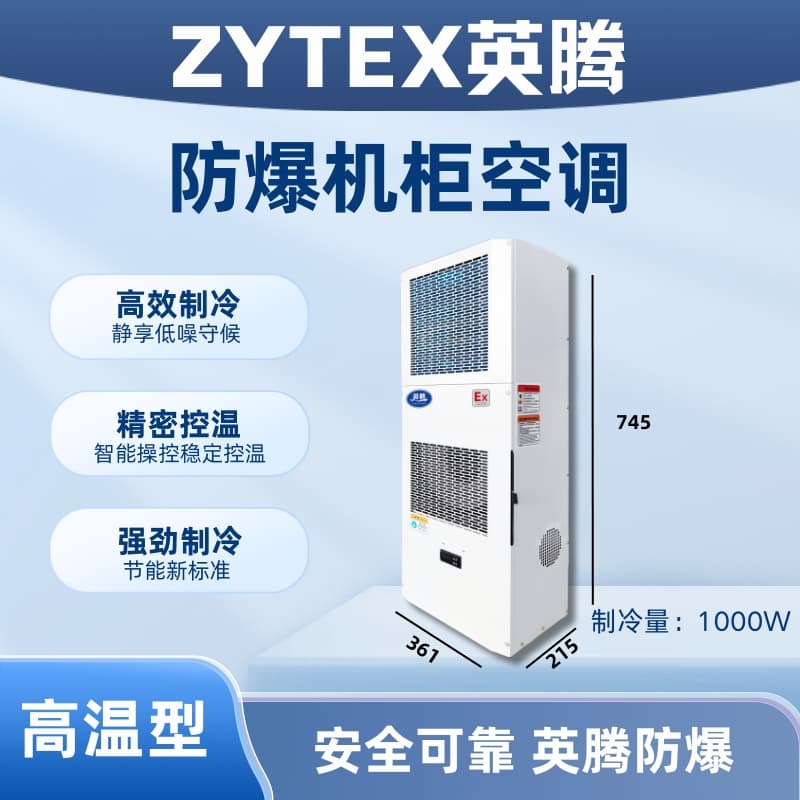

Yinteng High-Temperature Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex1000G
Brand: YingTeng
Cooling Capacity: 1000W
Interior temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power Supply: 220V/50Hz
Operating Current: 2.85A
Input Power: 610W
Cabinet air circulation volume: 250 m³/h
Cabinet external air volume: 640 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 36 kg
Dimensions (Width x Height x Depth): 361*745*215mm
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Inten explosion-proof cabinet air conditioner has explosion-proof marks: Ex db ib mb IIB T4 Gb / Ex db eb ib mb ll C T4 Gb
The Aiting explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by 'm' type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Applicable environment: Temperature -7℃ to 43℃, free of corrosive gases.
c) There are hazardous areas with explosive risks formed by mixtures of flammable gases, vapors, and air from Group II A, II B, T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plants where IIA, IIB, T1-T4 groups of combustible gases and steam-air mixtures may form explosive hazards. These explosion-proof cabinet air conditioners are ideal for environments with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof and explosion-proof CCC certificates. They feature an attractive appearance, reasonable design, ease of installation and maintenance. The full series uses brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored by the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
InTeng Explosion-Proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency scroll-type compressor, offering high reliability, low energy consumption, and stable quality.
The interior air of the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the air inside the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable intake and exhaust air structure, avoiding short-circuit in the cabinet air circulation.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, operate, and maintain.
Inten Explosion-proof Cabinet Air Conditioner Application Range
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, the large-scale data processing centers and CNC machining centers within our country are now widely utilizing them. The superior efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage among an increasing number of high-end domestic and international customers.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C), and the total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
