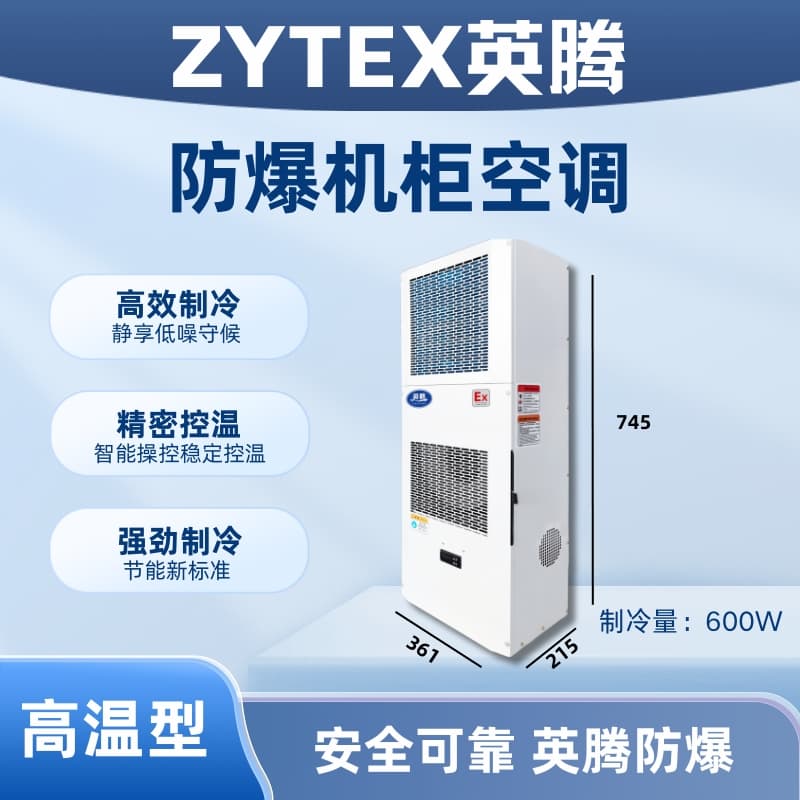

Inten High-Temperature Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex600G
Brand: YingTeng
Cooling capacity: 600W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 55℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 2.1A
Input Power: 420W
Cabinet air circulation volume: 230 m³/h
Outdoor circulation air volume: 290 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 60 dB(A)
Weight: 26 kg
Dimensions (Width x Height x Depth): 350*630*205mm
Flameproof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, the physical product shall prevail.
Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Yingteng explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres – Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by encased "m""
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7°C to 43°C, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors from Group II A, II B, and T1 to T4, with air.
The "Yingteng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for flammable and explosive areas in Zones 1 and 2. It is widely used in scientific research, oil, chemicals, medicine, power plants, and other places where II A, II B, T1-T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. Explosion-proof cabinet air conditioners are ideal for locations with temperature requirements. The Yingteng explosion-proof cabinet air conditioners have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, receiving both explosion-proof and CCC certification. They feature an attractive appearance, reasonable design, and easy installation and maintenance. The full range utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
InTeng Explosion-Proof Cabinet Air Conditioner Product Features
Equipped with temperature regulation and dehumidification functions to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency screw-type compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the interior of the cabinet and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable air intake and return design, avoiding short-circuiting in the cabinet air circulation.
The full-touch screen controller can be equipped with alarm features, dehumidification capabilities, and real-time monitoring of the air conditioner's operation.
Compact, lightweight, and extremely easy to install, use, and maintain.
Inten Explosion-proof Cabinet Air Conditioner Application Range
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely adopted. The exceptional efficiency and excellent performance of our electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Choose the air conditioner model BKG-50-Ex600C.
