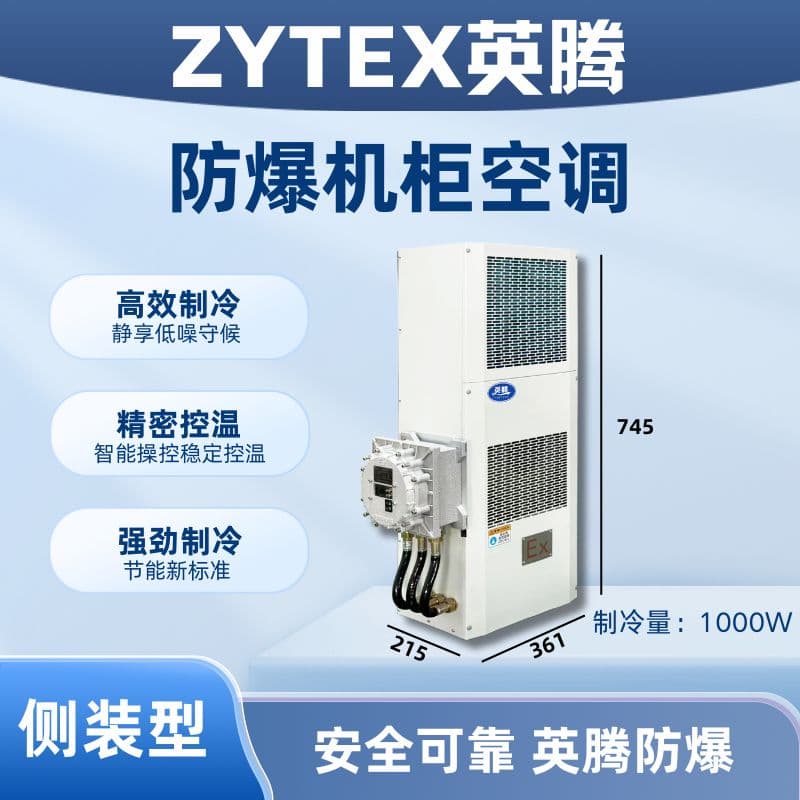

YingTeng Side-Mount Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex1000C
Brand: YingTeng
Cooling capacity: 1000W
Internal cabinet temperature range: 25℃~38℃
Out-of-Container Temperature Range: -5℃ to 45℃
System Pressure Rating: 26bar
Power: 220V/50Hz
Working Current: 2.85A
Input Power: 610W
Cabinet air circulation volume: 250 m³/h
Outdoor cabinet air volume: 540 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 36 kg
Dimensions (Width x Height x Depth): 361*745*215mm
Explosion-proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only, and the physical unit shall prevail.
The test operating conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Inten explosion-proof cabinet air conditioner, explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Aiting explosion-proof cabinet air conditioner series products comply with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2 - 2021 "Explosive Atmospheres - Part 2: Equipment protected by intrinsic safety 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by encased "m""
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yinteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by the mixture of flammable gases, vapors from Group II A, II B, and T1 to T4 categories with air.
The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for 1 and 2 area flammable and explosive environments. It is widely used in scientific research, oil, chemical, pharmaceutical, and power plant settings where there may be or could be II A, IIB group T1 to T4 combustible gases, steam, and air mixtures forming explosion hazards. Explosion-proof cabinet air conditioners are ideal for environments with temperature requirements. YingTeng's explosion-proof cabinet air conditioners have passed inspections by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center and received explosion-proof certification and CCC certification. They feature an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance. The full range of explosion-proof cabinet air conditioners are equipped with brand-name compressors, microcomputer intelligent control, digital display, and offer low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
InTeng Explosion-Proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification functions to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency screw-type compressor, it boasts high reliability, low energy consumption, and stable quality.
No air heat exchange between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper inflow and exhaust ventilation design to prevent air circulation short-circuiting inside the cabinet.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Inten Explosion-proof Cabinet Air Conditioner Application Range
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China have also been widely adopted. The exceptional effectiveness and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end domestic and international customers.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Choose the air conditioner model BKG-50-Ex600C.
