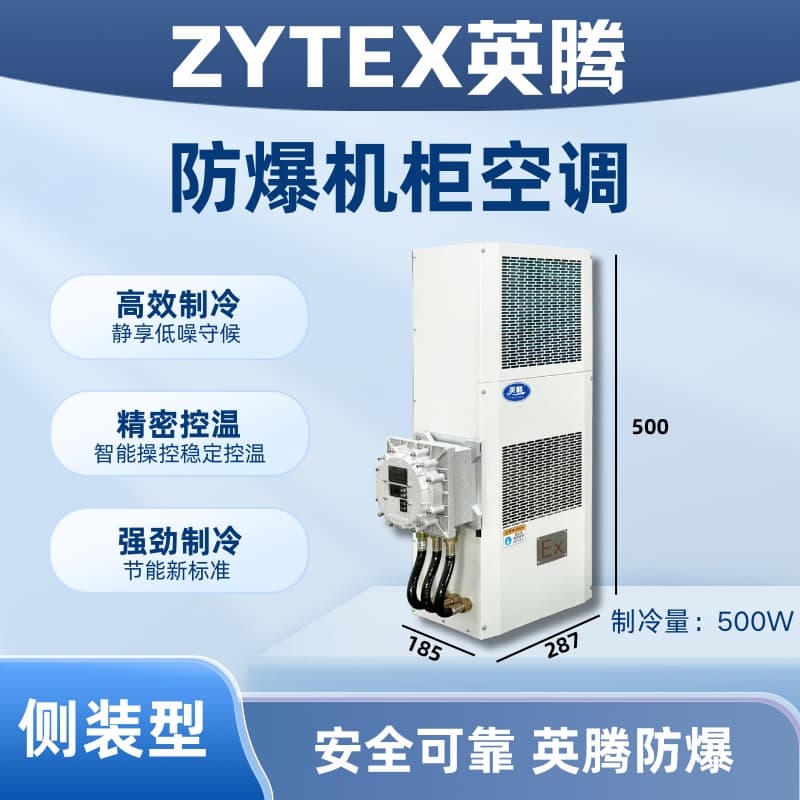

Yinteng Side-Mount Explosion-Proof Cabinet Air Conditioner

Product Specifications

Model: BKG-50-Ex500C

Brand: YingTeng

Cooling capacity: 500W

Internal temperature range: 25℃~38℃

Exterior Temperature Range: -5℃ to 45℃

System Pressure Rating: 26 bar

Power: 220V/50Hz

Working Current: 1.72A

Input Power: 340W

Cabinet air circulation volume: 150 m³/h

Outdoor cabinet air volume: 230 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP34

Noise: 55 dB(A)

Weight: 18 kg

Dimensions (W x H x D): 287*500*185mm

Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the physical unit is the definitive standard.

Test conditions are: dry bulb humidity inside the electrical cabinet at 35°C, wet bulb temperature at 26°C, and dry bulb temperature outside the electrical cabinet at 35°C.

2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.

Inten explosion-proof cabinet air conditioner features explosion-proof markings: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

The YingTeng explosion-proof cabinet air conditioner product series complies with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9-2021 "Explosive atmospheres *Part 9: Equipment protected by "m" type enclosures"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors from Groups II A, II B, and T1 to T4, with air.

The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant environments where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures forming explosive hazards. These explosion-proof cabinet air conditioners are suitable for locations with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Supervision and Inspection Center for Quality of Explosion-Proof Electrical Products, and are issued with explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and reliable safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).

Inten Explosion-proof Cabinet Air Conditioner Product Features

Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements inside the electrical control cabinet.

Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.

The air inside the cabinet does not exchange heat with the ambient air, ensuring the cleanliness of the internal air in the electrical cabinet.

Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.

Reasonable intake and exhaust air structure, preventing short-circuiting of air circulation within the cabinet.

The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.

Compact, lightweight, and extremely easy to install, use, and maintain.

InTeng Explosion-proof Cabinet Air Conditioner Application Range

Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers within the country are also widely utilized. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.

Selection Examples

The control cabinet has a surface area of 8㎡ (A=8㎡), and the ambient temperature is 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain the internal cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W

Select the air conditioner model BKG-50-Ex600C.
