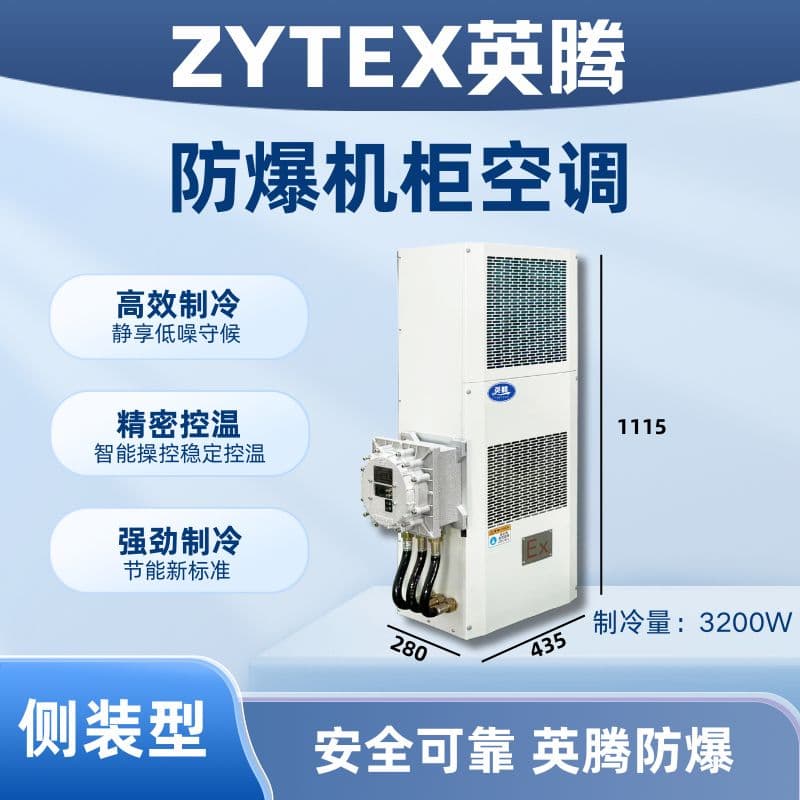

Yiting Side-Mount Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex3200C
Brand: YingTeng
Cooling Capacity: 3200W
Internal temperature range: 25℃~38℃
Exterior cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Working Current: 7.5A
Input Power: 1615W
Cabinet air circulation volume: 620 m³/h
Outdoor cabinet air volume: 1160 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 65 kg
Dimensions (width x height x depth): 435*1115*280mm
Explosion-proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.
Note: The above technical specifications are for reference only; the actual product is the standard.
The test condition is with a dry bulb humidity of 35℃ inside the electrical cabinet, a wet bulb temperature of 26℃, and a dry bulb temperature of 35℃ outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
Inten explosion-proof cabinet air conditioner features explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Aiting explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 "d""
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety "i""
GB/T 3836.9 - 2021 "Explosive Atmospheres - Part 9: Equipment protected by a 'm' type enclosure"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors from Group II A, II B, and T1 to T4, with air.
The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for widespread use in flammable and explosive areas in Zones 1 and 2. It is ideal for research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB, T1-T4 groups of combustible gases, steam, and air mixtures may form explosive hazards. These explosion-proof cabinet air conditioners are suitable for locations with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have passed inspections by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products and have been issued explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The full series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
InTeng Explosion-proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency spiral rotor compressors, offering high reliability, low energy consumption, and stable quality.
The cabinet air and ambient air do not exchange air heat, ensuring the cleanliness of the internal air in the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Proper air intake and exhaust design to prevent short-circuiting within the cabinet air circulation.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operation.
Compact, lightweight, and extremely easy to install, use, and maintain.
Invent Fireproof Cabinet Air Conditioner Application Range
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale domestic data processing centers and CNC machining centers are also widely utilized. The exceptional efficiency and superior performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end domestic and international clients.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C), and the total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
