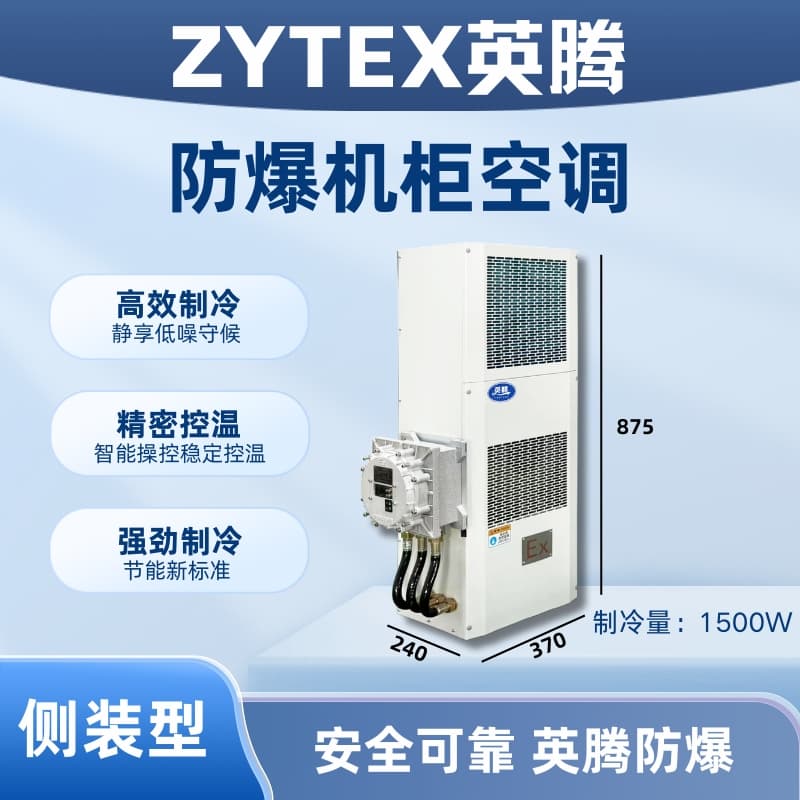

YingTeng Side-Mount Explosion-Proof Cabinet Air Conditioner

Product Specifications

Model: BKG-50-Ex1500C

Brand: YingTeng

Cooling Capacity: 1500W

Internal temperature range: 25℃~38℃

Exterior Temperature Range: -5℃ to 45℃

System Pressure Resistance: 26bar

Power: 220V/50Hz

Operating Current: 3.73A

Input Power: 790W

Cabinet air circulation volume: 270 m³/h

Outdoor cabinet air volume: 780 m³/h

Internal Protection Rating: IP54

External Protection Rating: IP34

Noise: 65 dB(A)

Weight: 37 kg

Dimensions (Width x Height x Depth): 370*875*240mm

Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the actual product should be taken as the standard.

Test conditions are as follows: Inside the electrical cabinet, dry bulb humidity is 35°C, wet bulb temperature is 26°C, and outside the electrical cabinet, dry bulb temperature is 35°C.

2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.

Inten explosion-proof cabinet air conditioner explosion-proof marking: Ex db ib mb IIB T4 Gb / Ex db eb ib mb ll C T4 Gb

The YingTeng explosion-proof cabinet air conditioner series products comply with the following standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type encapsulation"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

The YingTeng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.

The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for widespread use in Class 1 and 2 flammable and explosive environments. It is ideal for research, oil, chemical, pharmaceutical, and power plant settings where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures posing explosion hazards. These explosion-proof cabinet air conditioners are suitable for areas with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).

InTeng Explosion-proof Cabinet Air Conditioner Product Features

Equipped with temperature control and dehumidification features, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.

Utilizing a high-efficiency screw-type compressor, boasts high reliability, low energy consumption, and stable quality.

No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.

Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.

Reasonable intake and exhaust air structure to avoid short-circuiting of air circulation inside the cabinet.

The all-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operational status of the air conditioner in real-time.

Compact, lightweight, and extremely easy to install, use, and maintain.

InTeng Explosion-proof Cabinet Air Conditioner Application Range

Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers within the country are also widely used. The outstanding efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and adoption by an increasing number of high-end customers both domestically and internationally.

Selection Example

The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C), and the total heat generated inside the cabinet is 150W. To maintain the cabinet temperature at 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:

△T=T0-Ti=35-28=7°C

Qr=5.5xAx△T=5.5x8x7=308W

Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W

Select the air conditioner model BKG-50-Ex600C
