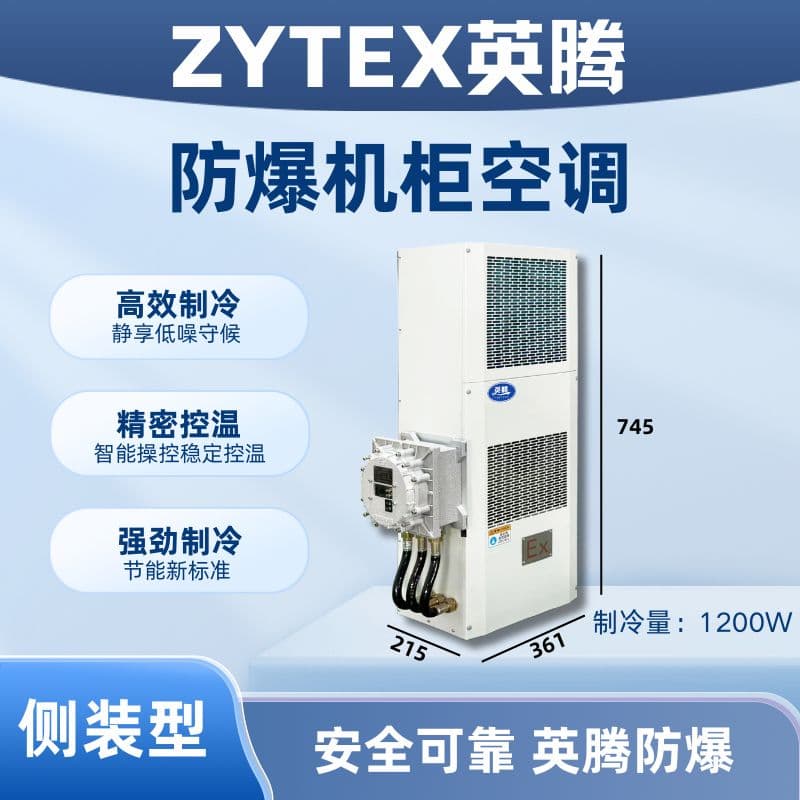

YingTeng Side-Mount Explosion-Proof Enclosure Air Conditioner
Product Specifications
Model: BKG-50-Ex1200C
Brand: Yingten
Cooling capacity: 1200W
Interior temperature range: 25℃~38℃
Exterior Temperature Range: -5℃ to 45℃
System Pressure Resistance: 26 bar
Power: 220V/50Hz
Operating Current: 2.95A
Input Power: 630W
Cabinet air circulation volume: 250 m³/h
Exterior cabinet air circulation volume: 540 m³/h
Ingress Protection Rating: IP54
External Protection Rating: IP34
Noise: 65 dB(A)
Weight: 38 kg
Dimensions (Width x Height x Depth): 361*745*215mm
Flameproof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical parameters are for reference only, and the physical unit is the standard.
The test condition is as follows: Dry bulb temperature inside the electrical cabinet is 35°C, wet bulb temperature is 26°C, and dry bulb temperature outside the electrical cabinet is 35°C.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for detailed inquiries.
Inten explosion-proof cabinet air conditioner features explosion-proof marking: Ex db ib mb IIB T4 Gb / Ex db eb ib mb ll C T4 Gb
The Aiting explosion-proof cabinet air conditioner series products comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety "i""
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yinteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are hazardous areas with explosive risks formed by mixtures of flammable gases, vapors, and air in groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for use in flammable and explosive areas in Zones 1 and 2. It is widely applicable in scientific research, oil, chemical, pharmaceutical, power plants, and other locations where there may be or could be II A, II B, T1 to T4 groups of combustible gases, steam, and air mixtures that pose explosion hazards. Explosion-proof cabinet air conditioners are ideal for environments with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series uses brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion-proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification functions to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency screw-type compressor, with high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high airflow, high static pressure centrifugal fans, with large recirculating air volume and excellent heat exchange performance.
Reasonable air intake and exhaust structure to avoid short-circuiting of air circulation within the cabinet.
The all-touch screen controller can be equipped with alarm and dehumidification functions, and can monitor the operational status of the air conditioner in real time.
Compact, lightweight, and extremely easy to install, use, and maintain.
Inten Explosion-proof Cabinet Air Conditioner Application Range
Now widely applied in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive fields, some large domestic data processing centers and CNC machining centers have also been extensively adopted. The outstanding effectiveness and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and use from an increasing number of high-end clients both domestically and internationally.
Selection Examples
The control cabinet surface area is 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C), and the total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
