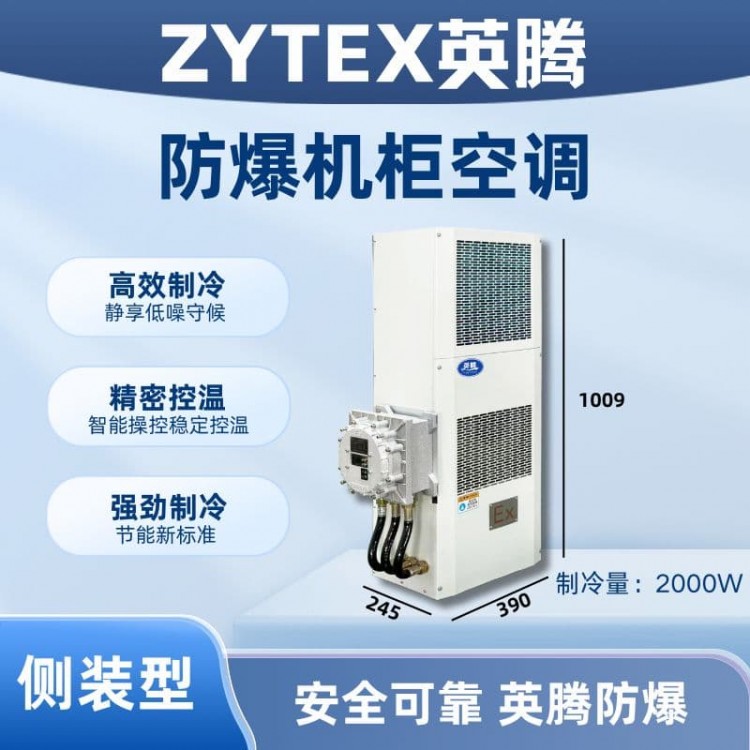

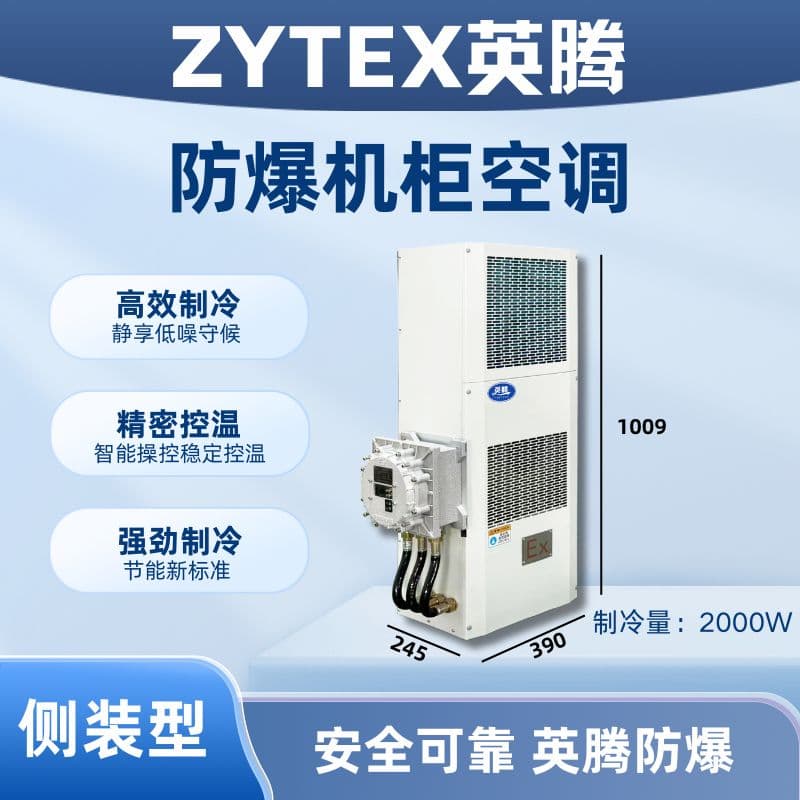

Yiting Side-Mounted Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex2000C
Brand: YingTeng
Cooling Capacity: 2000W
Cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power Supply: 220V/50Hz
Operating Current: 4.3A
Input Power: 910W
Cabinet air circulation volume: 320 m³/h
Outdoor cabinet air volume: 810 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 48 kg
Dimensions (Width x Height x Depth): 390*1009*245mm
Explosion-Proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the physical unit is the standard.
Test conditions are: dry bulb temperature of 35℃ inside the electrical cabinet, wet bulb temperature of 26℃ inside the electrical cabinet, and dry bulb temperature of 35℃ outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacity or customized products, please call our company for details.
InTeng explosion-proof cabinet air conditioner, explosion-proof marking: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Yinteng explosion-proof cabinet air conditioner product series complies with the following standards:
GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yingteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.
c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for widespread use in flammable and explosive areas of Zones 1 and 2. It is ideal for research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures may form explosive hazards. These explosion-proof cabinet air conditioners are suitable for spaces with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, with explosion-proof certificates and CCC explosion-proof certificates. They feature an aesthetically pleasing design, reasonable structure, and easy installation and maintenance. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and reliable safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion Proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification features to ensure ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing a high-efficiency scroll compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high airflow and high static pressure centrifugal fans, with large recirculating air volume and excellent heat exchange effect.
Reasonable air intake and return design, avoiding short-circuiting in the cabinet's air circulation.
The full-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
InTeng Explosion-proof Cabinet Air Conditioner Application Range
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale domestic data processing centers and CNC machining centers are also widely utilizing them. The superior efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage among more and more high-end domestic and international customers.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
