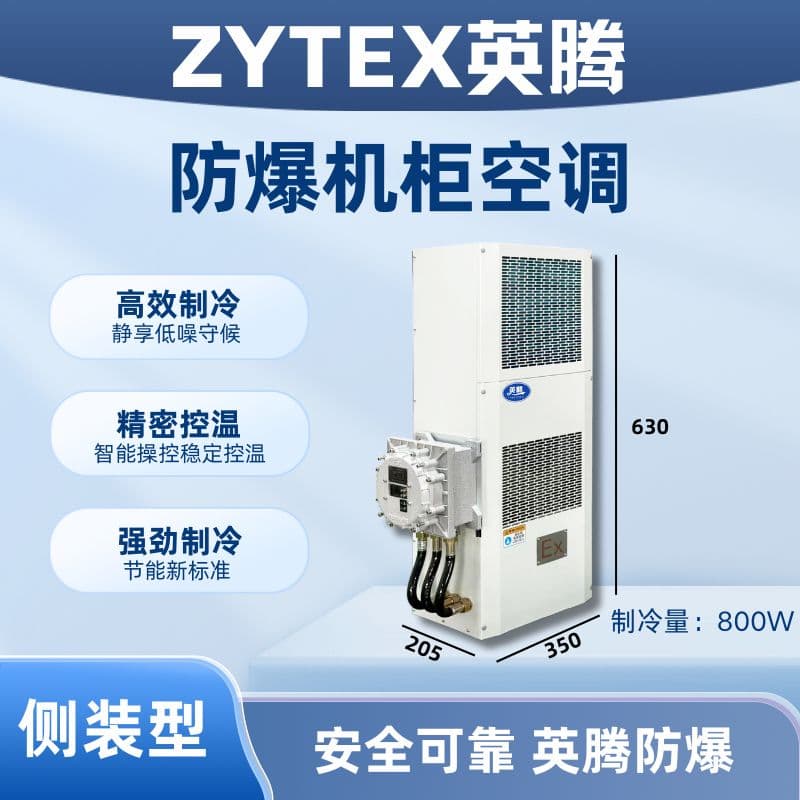

YingTeng Side-Mount Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex800C
Brand: YingTeng
Cooling Capacity: 800W
Internal cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Rating: 26bar
Power Supply: 220V/50Hz
Operating Current: 2.4A
Input Power: 450W
Cabinet air circulation volume: 230 m³/h
Outdoor cabinet air volume: 290 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 60 dB(A)
Weight: 27 kg
Dimensions (Width x Height x Depth): 350*630*205mm
Flameproof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the physical product shall be the criterion.
Test conditions are 35°C dry bulb temperature and 26°C wet bulb temperature inside the electrical cabinet, and 35°C dry bulb temperature outside the electrical cabinet.
2. The above product specifications are for standard models. For larger cooling capacities or customized products, please call our company for details.
Inten explosion-proof cabinet air conditioner features explosion-proof markings of Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The explosion-proof cabinet air conditioning units in the Yiting series comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yinteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m
b) Applicable environmental conditions: Temperature -7℃ to 43℃, free from corrosive gases.
c) There are explosive hazardous areas formed by the mixture of flammable gases, vapors from Group II A, II B, T1 to T4, with air.
The "YingTeng" explosion-proof cabinet air conditioner series has been specially processed with explosion-proof technology, making it suitable for a wide range of flammable and explosive areas in Zones 1 and 2. It is commonly used in scientific research, oil, chemical, pharmaceutical, and power plant environments where IIA, IIB class T1 to T4 combustible gases, steam, and air mixtures pose explosion hazards. These explosion-proof cabinet air conditioners are ideal for spaces with temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving both explosion-proof certification and explosion-proof CCC certification. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The entire series utilizes brand-name compressors, microcomputer intelligent control, digital display, and offers low noise, stable performance, simple operation, and safety. They are highly favored in the market. (Customizable options include explosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, and explosion-proof multi-split air conditioners, etc.).
Inten Explosion-proof Cabinet Air Conditioner Product Features
Equipped with temperature control and dehumidification functions, ensuring ideal temperature and humidity requirements are met within the electrical control cabinet.
Utilizing high-efficiency vortex rotor compressors, boasts high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the internal air of the electrical cabinet remains clean.
Choose high airflow, high static pressure centrifugal fans, with large recirculating air volume and excellent heat exchange performance.
Reasonable intake and exhaust air structure to avoid short-circuiting of air circulation inside the cabinet.
The full-touch screen controller can feature alarm functions, dehumidification capabilities, and real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
InTeng Explosion-proof Cabinet Air Conditioner Application Range
Extensively applied in various fields such as machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive, some large-scale domestic data processing centers and CNC machining centers are also widely using them. The outstanding efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage among an increasing number of high-end domestic and international clients.
Selection Example
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
