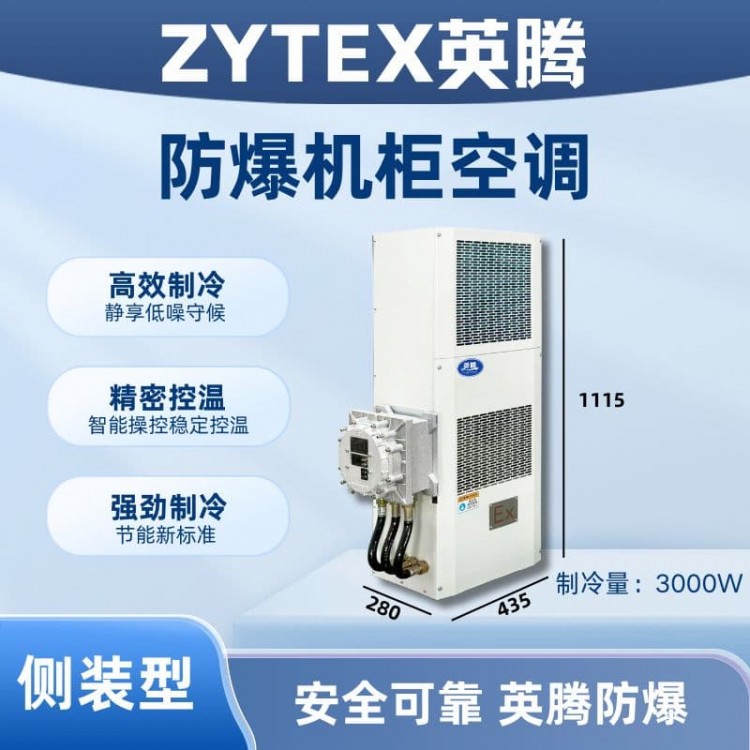

YingTeng Side-Mounted Explosion-Proof Cabinet Air Conditioner
Product Specifications
Model: BKG-50-Ex3000C
Brand: YingTeng
Cooling Capacity: 3000W
Cabinet temperature range: 25℃~38℃
External cabinet temperature range: -5℃ to 45℃
System Pressure Resistance: 26bar
Power: 220V/50Hz
Operating Current: 7.2A
Input Power: 1600W
Cabinet air circulation volume: 610 m³/h
Exterior Cabinet Airflow: 1150 m³/h
Internal Protection Rating: IP54
External Protection Rating: IP34
Noise: 70 dB(A)
Weight: 63 kg
Dimensions (Width x Height x Depth): 435*1115*280mm
Explosion-proof Mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.
Note: The above technical parameters are for reference only, please refer to the physical unit.
Test conditions: Dry bulb humidity inside the electrical cabinet is 35°C, wet bulb temperature is 26°C, and dry bulb temperature outside the electrical cabinet is 35°C.
2. The above product specifications are for the standard model. For larger cooling capacity or customized products, please call our company for detailed inquiries.
InTeng explosion-proof cabinet air conditioner, explosion-proof mark: Ex db ib mb IIB T4 Gb/Ex db eb ib mb ll C T4 Gb
The Yinteng explosion-proof cabinet air conditioner series products comply with the following standards:
GB/T 3836.1-2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"
GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"
GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"
GB/T 3836.9 - 2021 "Explosive Atmospheres *Part 9: Equipment protected by "m" type enclosures"
GB/T 3836.15-2017 "Explosive Atmospheres Part 15: Design, Selection, and Installation of Electrical Equipment"
The Yinteng explosion-proof cabinet air conditioner operates normally under the following environmental conditions:
a) Altitude not exceeding 2,000m.
b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.
c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.
The "YingTeng" explosion-proof cabinet air conditioner series has been processed with special explosion-proof technology, making it suitable for use in Class 1 and Class 2 flammable and explosive environments. It is widely applicable in scientific research, oil, chemical, pharmaceutical, power plant, and other facilities where there may be or could be II A, II B, T1-T4 group combustible gases, steam, and air mixtures forming explosive hazards. The explosion-proof cabinet air conditioners are suitable for environments with specific temperature requirements. The YingTeng explosion-proof cabinet air conditioners have been inspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center, receiving both explosion-proof certification and explosion-proof CCC certificate. They feature an aesthetically pleasing design, reasonable structure, and are easy to install and maintain. The full series uses branded compressors, microcomputer intelligent control, digital display, and boasts low noise, stable performance, simple operation, and high safety reliability, making them popular in the market. (Customizable options include explosion-proof window air conditioners, explosion-proof duct air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, and explosion-proof multi-split air conditioning units, etc.).
InTeng Explosion-Proof Cabinet Air Conditioner Product Features
Equipped with temperature regulation and moisture control, ensuring to meet the ideal temperature and humidity requirements within the electrical control cabinet.
Utilizing high-efficiency scroll-type compressor, offering high reliability, low energy consumption, and stable quality.
No air heat exchange occurs between the cabinet air and the ambient air, ensuring the cleanliness of the internal air within the electrical cabinet.
Choose high-volume, high-static-pressure centrifugal fans for better air circulation and heat exchange efficiency.
Reasonable intake and exhaust air structures to prevent short-circuiting of air circulation inside the cabinet.
The all-touch screen controller can be equipped with alarm and dehumidification functions, as well as real-time monitoring of the air conditioner's operating status.
Compact, lightweight, and extremely easy to install, use, and maintain.
Inten Explosion-proof Cabinet Air Conditioner Application Range
Now widely used in machine tools, data processing, communication, finance, metallurgy, petrochemicals, building materials, and automotive industries, some large-scale data processing centers and CNC machining centers in China are also widely utilized. The exceptional efficiency and excellent performance of the electrical cabinet air conditioners are gradually gaining recognition and usage from an increasing number of high-end customers both domestically and internationally.
Selection Examples
The control cabinet has a surface area of 8㎡ (A=8㎡), with an ambient temperature of 35°C (T0=35°C). The total heat generated inside the cabinet is 150W. To maintain an internal cabinet temperature of 28°C, the calculation method for selecting the electrical cabinet air conditioner is as follows:
△T=T0-Ti=35-28=7°C
Qr=5.5xAx△T=5.5x8x7=308W
Qt=1.2x(Qr+Qi)=1.2x(150+308)=458W
Select the air conditioner model BKG-50-Ex600C.
