Product Specifications

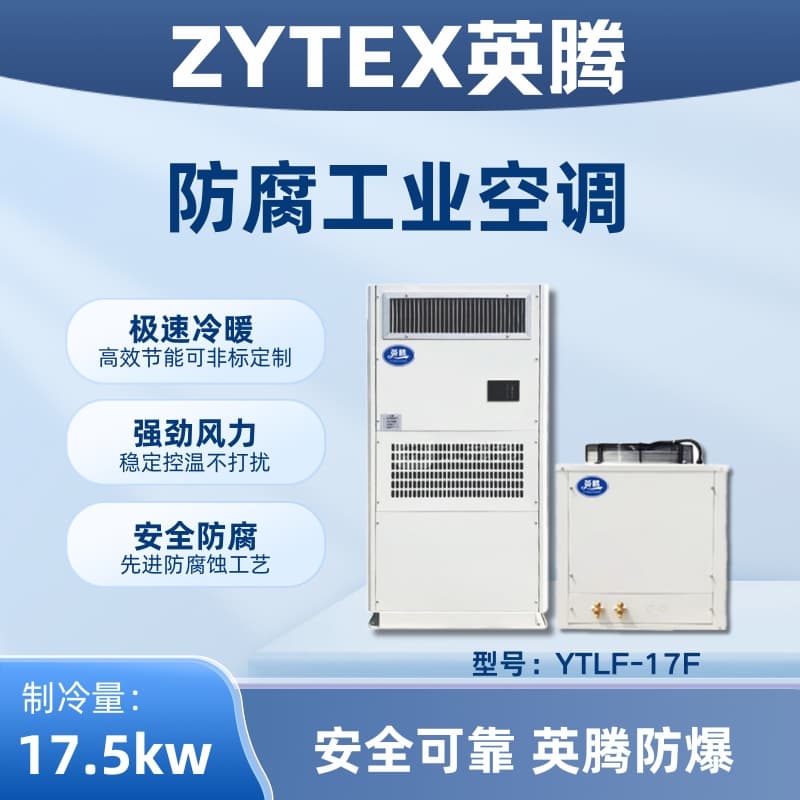

YTLF-17F Corrosion-Resistant Industrial Air Conditioner
Model: YTLF-17F
Brand: YingTeng
Indoor Unit Specifications:
Cooling Capacity: 17.5 kW
Heating Capacity: 18.4 kW
Cooling Air Electric Heating Power (optional): 9kW
Cold Air Intensification with Electric Heating (Optional): 14kW
Heat Pump Electric Heating (optional): 6kW
Cooling Power: 5.7 kW
Heating Power: 5.8 kW
Recirculating Airflow: 3000 m³/h
Static Pressure Outside of the Machine: 0Pa
Indoor unit noise level: ≤60 dB(A)
Liquid Tube Connector: φ1/2 inch
Exhaust Pipe Adapter: φ3/4 inch
接管Direction: Face forward to the left side, right接管
Power: 380V 3N-50Hz
Outdoor Unit Quantity: 1 Set
Electric Heater Type: Stainless Steel Tubular Finned
Air Filter: Initial Efficiency Nylon Filter
Dimensions (W×D×H mm): 900×520×1895
Weight: 97 kg
Outdoor Unit Specifications:
Outdoor Unit Model: YTLF-170F-B
Type: Fully Sealed Spiral
Compressor Quantity: 1
Power: 380V 3N-50Hz
Filling Quantity: 5.6 kg
Condenser Type: Copper Tubing Finned
Fin Type: High Efficiency Corrugated Aluminum Fins
Condenser Fan Type: Low Noise Axial Fan
Power: 0.55 kW
Dimensions (W×D×H mm): 720×720×1050
Outdoor Unit Noise Level: ≤62dB(A)
Weight: 180 kg
Evaporator Type: Copper Tube Spiral Type with Internal Thread
Fin shape: Louvered hydrophilic membrane aluminum fins
Throttle Method: External Balance Thermal Expansion Valve
Fan Drive Method: Direct Motor Drive
Fan Power: 0.37 kW
Note:
1. Refrigeration Conditions: Outdoor temperature DB=35°C, WB=24°C; Indoor temperature DB=27°C, WB=19°C.
2. Heating condition: Outdoor temperature DB=7°C, WB=6°C; indoor temperature DB=20°C.
3. The refrigerant charge and compressor types listed in the table are specific to R-2-2 only; for other refrigerants, the charge and compressor types are as per the specific data in the unit's random information.
4. The R-1-3-4-A refrigerant unit's data, excluding cooling capacity, heating capacity, power, and charge amount, can be referred to in the table above. For data that cannot be referenced, please refer to the specific data in the unit's random materials.
Yingteng Corrosion-Resistant Industrial Air Conditioners are the latest generation of air conditioning products meticulously developed by our company, drawing inspiration from both international and domestic design philosophies and refrigeration components. Each model has been tested by our company's authorized testing center, renowned for its aesthetic appeal, superior performance, ease of installation and maintenance, and reliable stability. The product line is comprehensive, with a wide range of models to meet various user needs, and is widely used in industrial fields such as steel mills, chemical plants, paper mills, printing plants, power plants, substation, food factories, garment factories, and microelectronics factories, as well as in various electrical control rooms.
Diverse in form and function
Corrosion-resistant industrial air conditioners are categorized into three main types: direct air supply, top air supply with front return air, and top air supply with rear return air. To meet the requirements of different working environments or the functional needs of specific usage sites, the units are derived in various types such as heat pump, heat pump with electric auxiliary heating, chilled water electric heating, chilled water hot water coil, 100% fresh air, and single cooling models. The wide range of types and capacities can cater to the air conditioning needs of various commercial spaces and industrial special applications.
Direct Air Delivery
Direct-airflow type features bidirectional louvers for blowing air, offering a long throw distance and high air volume. It boasts compact size, attractive appearance, simple and flexible application, reducing the amount of decoration and installation work for users. It is suitable for local air conditioning in medium and small spaces.
Top blowing type
Top blowing type utilizes duct-transported air supply, allowing users to flexibly select the air supply method based on the space conditions and requirements, and reasonably arrange the number of air outlets to meet the needs of centralized management and temperature control in large spaces. The return air method is further divided into front return air type, suitable for direct return air in independent large spaces, eliminating the need for return air ducts and machine rooms: and rear return air type, suitable for centralized air conditioning of supply and return air in multiple independent spaces, requiring the setup of return air ducts and machine rooms for each space.
Advanced performance
The product features an efficient spiral compressor, an internationally branded flat heat expansion valve, and a high-performance heat exchanger meticulously designed and manufactured. The unit has been meticulously tested by an authorized CNAS-accredited testing center, ensuring the product boasts exceptional performance quality and unparalleled energy-saving and cost-reduction advantages.
Evaporator
The heat exchanger utilizes high-performance internally threaded copper tubes and hydrophilic finned aluminum fins, further enhanced by advanced mechanical expansion tube processing, achieving optimal heat exchange efficiency.
Condenser
Heat exchangers feature large-diameter corrugated aluminum fin design, processed through advanced mechanical expansion tube technology. They are designed to maximize adaptability to various harsh dust environments while meeting heat exchange performance and efficiency, minimizing maintenance and cleaning, and extending service life.
Microcomputer control
Microcomputer with user-friendly control, LCD large-screen display, featuring RS-485 communication interface, three working modes: ventilation, cooling, and heating, with timer on/off function, power failure memory function, real-time clock display, etc.; optimized control logic, meticulously designed operating data and fault alarm full-code query and prompt function, convenient and practical; the unit is equipped with multiple protection functions to ensure safe and worry-free operation.
Maintenance and repair
Convenient, streamlined, and functional frame structure design, fully considering the needs for flexible installation and maintenance, making installation and repair extremely easy. Includes a double-layer initial efficiency filter with washable features, offering a long service life.
Meet customers' special requirements
According to customer requirements, additional units can be provided with features such as year-round refrigeration operation, high airflow with low enthalpy difference, corrosion-resistant coating, long pipeline connections, fresh air supply, shaded storage, remote control, steam heating, and hot water heating.
Should there be any special requirements, parameters such as the aircraft dimensions may be subject to change. Customers must communicate these requirements prior to placing an order and include them as special notes in the order.
