Product Specifications

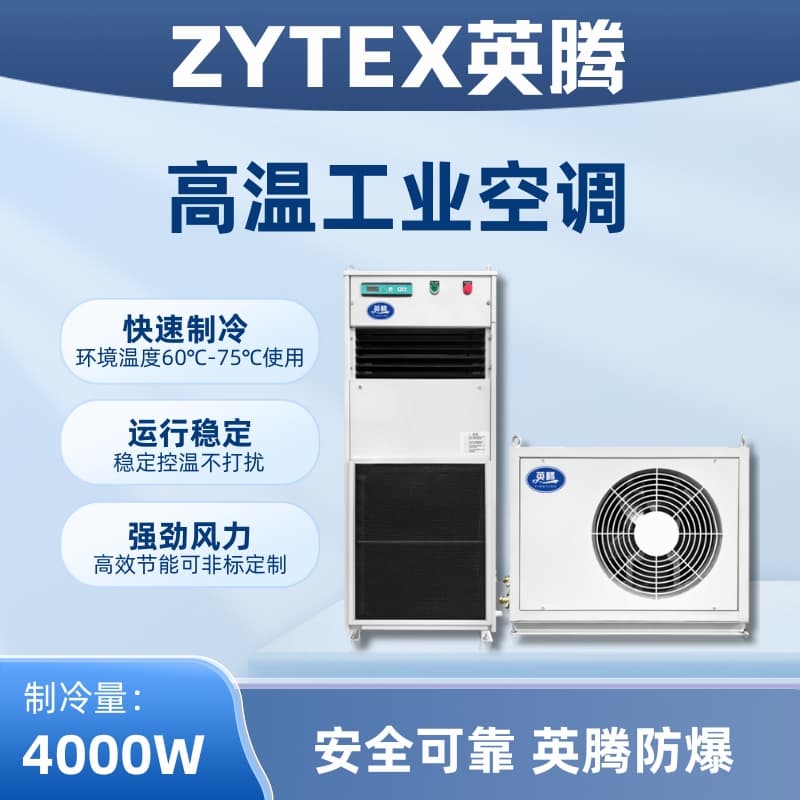

YTB-4R-M (AC220V model) Split-Cabinet High-Temperature Air Conditioner (Cooling and Heating Type)
Model: YTB-4R-M (AC220V version)
Brand: YingTeng
Cooling Capacity: 4000W
Cooling Input Power: 1730W
Output Heat: 3000W
Heating Input Power: 3290W
Input Power: AC220V-1PH-50Hz (Single Phase, Three-Wire System)
Throttling Method: Capillary
Indoor air circulation volume: 1000 m³/h
Airflow Method: Direct Front Air Emission
Charging Quantity: 2.2kg
接管尺寸: Steam pipe Φ3/4"×1.0, Liquid pipe Φ1/2"×1.0
Unit Weight: Indoor unit 80kg, Outdoor unit 90kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Refrigeration capacity at nominal condition: Ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving compartments and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally in high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgical industry, steel mills, mobile equipment for outdoor operations, and the four types of vehicles in the coking industry (tapping car, quenching car, coal car, push car) for their driving compartments. Also in electrical rooms, high-voltage rooms, and other high-temperature work environments such as electrolytic aluminum plants and outdoor operations.
Application Scope
1. Improve working conditions, capable of normal operation in high temperatures up to <90°C, and can achieve low-temperature refrigeration upon customer request.
2. Users can choose between high-temperature and ultra-high-temperature models based on actual requirements.
3. Introduce advanced German special air conditioning technology to ensure product superiority.
4. Utilizing a scroll compressor, imported electrical components, and anti-corrosion treatment for the fin condenser and evaporator, ensuring stable operation of the unit in harsh environments.
5. Equipped with a user-friendly interface operating system and a synchronous refrigeration mode, operation is more straightforward.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance of the engine assembly.
7. Customization is available for this series according to various user requirements, with a range of accessories to choose from, ensuring satisfaction for different users.
8. For ease of installation, users can request the installation bracket components to be included with the order prior to purchase.
9. The unit can be equipped with a de-watering device for waterless operation.
