Product Specifications

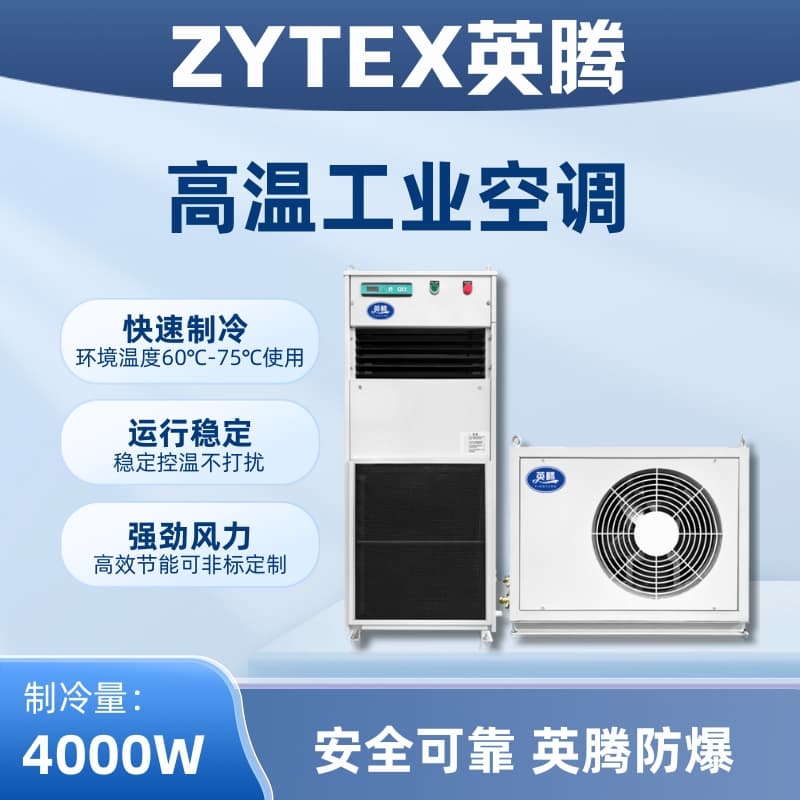

YTB-4-M (AC220V Model) Split-Cabinet High-Temperature Air Conditioner (Single-Cooling Type)
Model: YTB-4-M (AC220V Version)
Brand: Yingten
Cooling Capacity: 4000W
Cooling Input Power: 1750W
Heating Capacity: N/A (--)
Heating Input Power: N/A (--)
Input Power: AC 220V-1PH-50Hz (Single Phase Three-Wire System)
Throttling Method: Capillary
Indoor air circulation volume: 1000 m³/h
Airflow Method: Direct Front Exhaust
Charging Quantity: 2.2 kg
接管 Size: Gas Pipe Φ3/4"×1.0, Liquid Pipe Φ1/2"×1.0
Total Weight: Indoor unit 75kg, Outdoor unit 90kg
Dimensions: Indoor unit 550×320×1250mm, Outdoor unit 900×480×770mm
Note: Nominal cooling capacity: Ambient dry bulb temperature is 45℃; indoor dry and wet bulb temperatures are 30℃ and 24℃ respectively, suitable for working environment temperatures below 75℃.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are specifically designed for cooling and dehumidifying driving compartments and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally under high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, mobile equipment for field operations, and the four types of vehicles in the coking industry (tapping cars, quenching cars, coal-loading cars, pusher cars) for their driving compartments, electrical rooms, high-voltage rooms, and similar areas. They are also applied in electrolytic aluminum plants, field operations, and other high-temperature work environments.
Application Scope
1. Improve working conditions, capable of normal operation in temperatures above 90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature models based on actual requirements.
3. Adopted German specialty air conditioning technology to ensure product advancement.
4. Utilizing a scroll compressor, imported electrical components, and corrosion-resistant treatment for the fin condenser and evaporator, ensuring stable operation of the unit under harsh environmental conditions.
5. User-friendly interface operating system with synchronous cooling mode for easier operation.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance for the equipment.
7. Tailored private customizations are available in this series for varied user requirements, with a range of accessories to choose from to meet different customer needs.
8. For easy installation, customers can request the inclusion of the unit mounting bracket components prior to ordering.
9. The unit can be equipped with a de-watering device to achieve waterless operation.
