Product Specifications

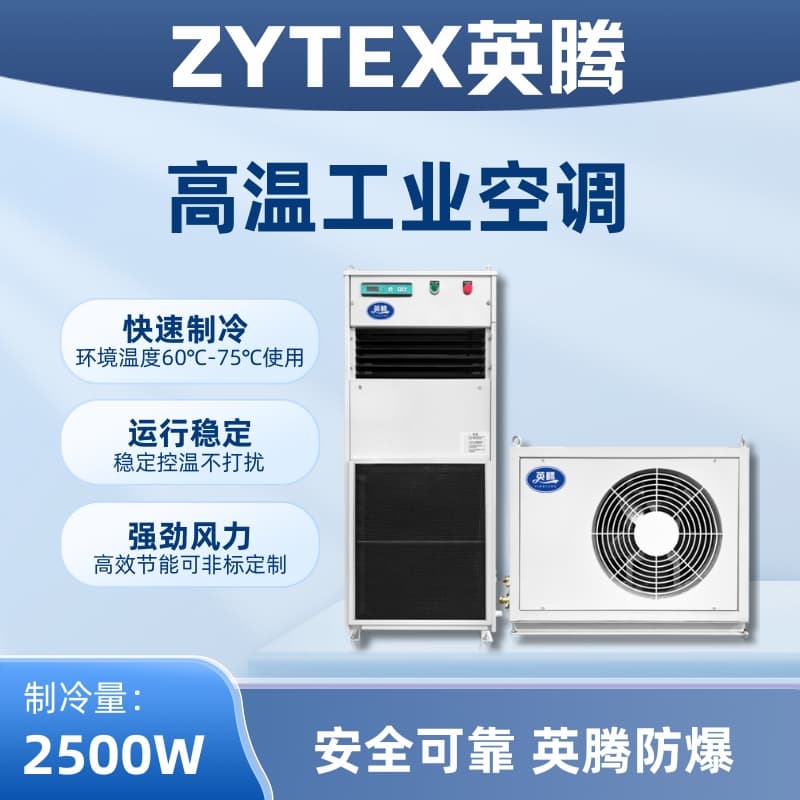

YTB-2.5-M Split-Cabinet High-Temperature Air Conditioner (Single-Cooling Type)
Model: YTB-2.5-M
Brand: YingTeng
Cooling Capacity: 2500W
Cooling Input Power: 1350W
Heating Capacity: N/A (--)
Heating Input Power: N/A (--)
Input Power: AC220V-1PH-50Hz (Single Phase Three-Wire System)
Throttling Method: Capillary
Indoor Air Circulation Volume: 600 m³/h
Airflow Method: Direct Front Air Emission
Fill Volume: 1.5 kg
接管 Size: Gas Pipe Φ1/2"×1.0, Liquid Pipe Φ3/8"×0.75
Unit Weight: Indoor unit 50kg, Outdoor unit 70kg
Dimensions: Indoor unit 450×240×735mm, Outdoor unit 790×300×535mm
Note: Cooling capacity at nominal condition: ambient dry bulb temperature is 45°C; indoor dry and wet bulb temperatures are 30°C and 24°C, respectively, suitable for working environment temperatures below 75°C.
Product Features
Special (High-Temperature) Air Conditioners (also known as High-Environment Temperature Air Conditioning Units) are designed specifically for cooling and dehumidifying driving cabins and electrical rooms in harsh environments with high ambient temperatures. Their unique design allows the units to operate normally in high temperatures, strong vibrations, and corrosive conditions. They are widely used in the metallurgy industry, steel mills, mobile equipment in field operations, and the four types of vehicles in the coking industry (taphole closing car, coke quenching car, coal charging car, coke pushing car) for their cabins. Also in electrical rooms, high-voltage rooms, and other high-environmental workplaces such as aluminum electrolysis plants and field operations.
Application Scope
1. Improve working conditions; operates normally in high temperatures up to <90°C, and can achieve low-temperature refrigeration as per customer requirements.
2. Users can choose between high-temperature and ultra-high-temperature models based on actual needs.
3. Adopted German special air conditioning technology to ensure product advancement.
4. Utilizing a scroll compressor, imported electrical components, and anti-corrosion treatment for the fin condenser and evaporator, ensuring stable operation of the unit in harsh environments.
5. User-friendly interface operating system, synchronous refrigeration mode, for easier operation.
6. Specific features include strong corrosion resistance, high vibration resistance, and high-temperature tolerance for the engine assembly.
7. Customization is available for this series according to different user requirements, with a variety of accessories to choose from, ensuring satisfaction for diverse user needs.
8. For ease of installation, users can request the inclusion of the unit mounting bracket components prior to ordering.
9. The unit can be equipped with a de-watering device to achieve waterless operation.
